Anvil 0500173588 Fig 261 3 in Carbon Steel Riser Clamp in Black

Product Description

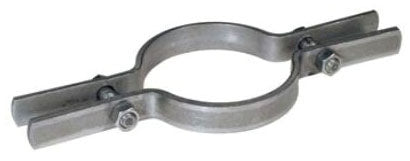

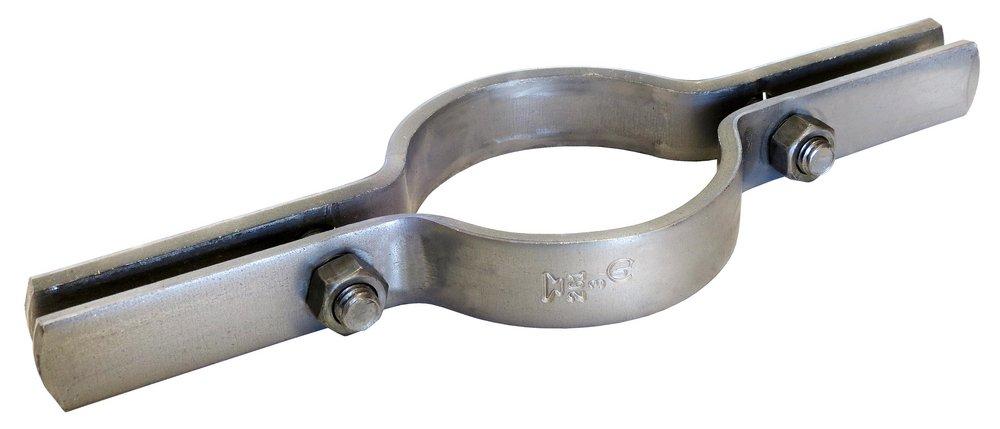

The Anvil Fig 261 3 inch Carbon Steel Riser Clamp in Black, MPN 0500173588, is designed for the secure support of various types of stationary steel pipe risers, cast iron pipes, or conduits. This clamp features a sturdy carbon steel construction that ensures reliable performance in demanding environments. It is a two-piece clamp that allows for easy installation.

• Maximum Temperature: 650 degrees Fahrenheit
• Load Capacity: 500 pounds
• Standard Size: For pipe diameter of 3 inches

Product Highlights

The Anvil riser clamp is ideal for plumbing installations where strength and reliability are essential. It includes various certifications such as cUL and UL listed, meeting multiple safety standards.

Product Information

Standard Information

• Manufacturer: Anvil
• Part Number: 0500173588

Technical Specifications

• Overall Length: 11.375 inches
• Clamp Material: Carbon Steel
• Width: 1 inch
• Bolt Size: 7/16 inch
• Number of Bolts: 2
• Finish: Plain/Black
• Torque Rating: 32 foot-pounds
• Applicable Standards: Federal Specification A-A-1192A Type 8, ANSI/MSS SP-69 and SP-58 Type 8
