Product Description

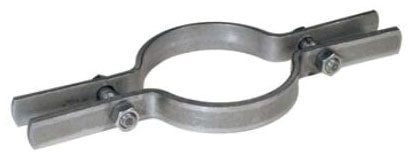

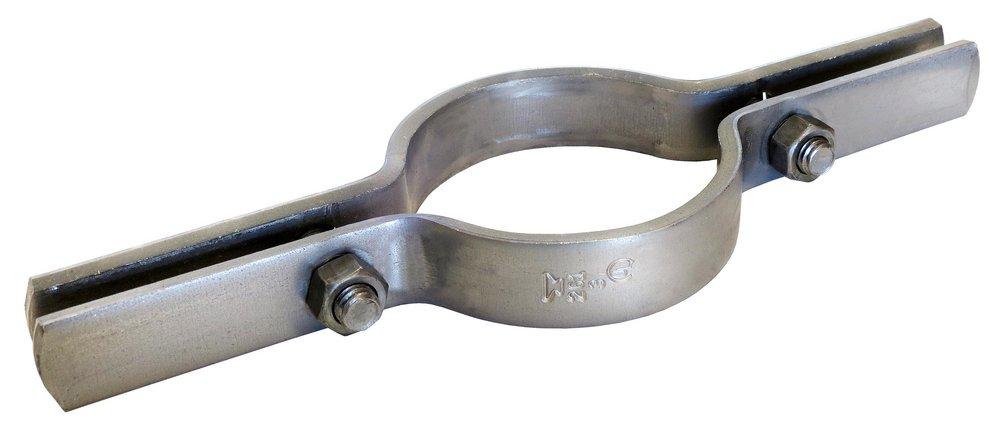

The Anvil Fig 261 1 In. Carbon Steel Riser Clamp in Black, MPN 0500173539, is designed to support stationary steel pipe risers, cast iron pipes, or conduits. This clamp is suitable for standard steel pipe outer diameters.
- Maximum temperature of plain is six hundred fifty degrees Fahrenheit.
- Complies with key industry standards including ANSI/MSS SP-69 and UL listings.
- Load rating supports up to two hundred twenty pounds.
Product Highlights
This riser clamp is a reliable choice for various plumbing and HVAC applications.
Product Information
Standard Information
-
Brand: Anvil
-
MPN: 0500173539
Technical Specifications
-
Pipe Size: 1 In.
-
Overall Length: 8-7/8 In.
-
Clamp Material: Carbon Steel
-
Width: 1 In.
-
Screw/Bolt Size: 3/8 In.
-
Number of Screws/Bolts: 2
-
Finish: Plain/Black
-
Load Rating: 220 Lb.
-
Temperature Rating: 650 Deg F for plain, 450 Deg F galvanized or epoxy
-
Approvals: Federal Specification A-A-1192A Type 8, ANSI/MSS SP-69, UL Listed
-
Torque Rating: 21 Foot-Pound
