Anvil 0500173521 Fig 261 3/4 in. Carbon Steel Riser Clamp in Black

Product Description

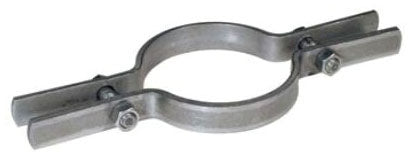

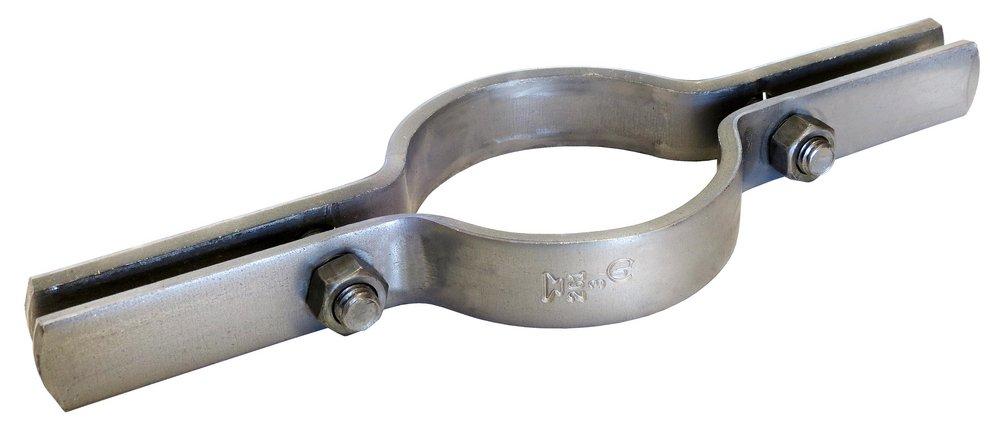

The Anvil Fig 261 3/4 in. Carbon Steel Riser Clamp, MPN 0500173521, is essential for securing stationary steel pipe risers, cast iron pipes, or conduits. This clamp is designed for standard steel pipe O.D. sizing, ensuring proper support and stability. The maximum temperature rating for this clamp is Plain six hundred fifty degrees Fahrenheit and Galvanized or epoxy four hundred fifty degrees Fahrenheit.

• Support for stationary steel pipe risers
• Constructed from durable carbon steel
• Designed for 3/4 inch pipe size

Product Highlights

The Anvil riser clamp ensures reliable support for various piping systems.

Product Information

Standard Information

• Brand: Anvil
• MPN: 0500173521

Technical Specifications

• Pipe Size: 3/4 inch
• Overall Length: 8 7/8 inches
• Clamp Material: Carbon Steel
• Width: 1 inch
• Screw/Bolt Size: 3/8 inch
• Number of Screw/Bolts: 2
• Load Rating: 220 pounds
• Temperature Rating: 650 degrees Fahrenheit
• Torque Rating: 21 foot-pounds
• Applicable Standards: Federal Specification A-A-1192A (Type 8), ANSI/MSS SP-69, MSS SP-58 (Type 8), UL Listed (Sizes 1-1/2 - 8)
