Anvil 0500092341 206 5/8 BLK STL SIDE BEAM BRACKET

Product Description

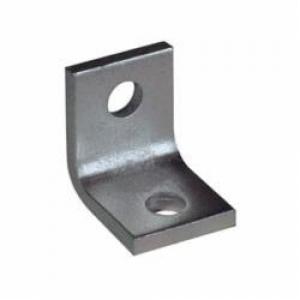

The Anvil 0500092341 is a side beam bracket designed for strong support in piping and fastening applications. This component is part of the FIG 206 series and is made from carbon steel with a black oxide finish. With dimensions of two and a half inches by two and a half inches, it is equipped for anchoring hanger rods with a diameter ranging from three eighths to five eighths inches.

• Supports up to 850 pounds with lag screw and 2000 pounds with bolt to steel.
• Compatible with various joist and wall configurations.
• Manufactured to meet industry standards for durability and performance.

Product Highlights

This bracket is suitable for domestic use and is ideal for securing piping systems in both residential and commercial settings.

Product Information

Standard Information

• Manufacturer: ASC Engineered Solutions
• Domestic/Import: Domestic

Technical Specifications

• Dimensions: 2-1/2 inches H x 2-1/2 inches W
• Rod Diameter: 5/8 inches
• Hole Size: 11/16 inches
• Thickness: 3/8 inches
• Material: Carbon Steel
• Finish: Black Oxide
• Series: FIG 206
• Type: Side
