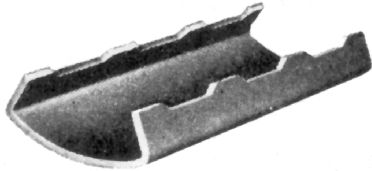

Anvil 0500071022 160 3/4-11/4 Pipe Protect Saddle

Product Description

Anvil Pipe Covering Protection Saddle, MPN 0500071022, is designed for effective insulation on pipes sized three-quarter to one and one-quarter inches. This saddle can withstand a maximum temperature of six hundred fifty degrees Fahrenheit and offers a robust carbon steel clamp. Its twelve inch length ensures a secure fit, making it ideal for high temperature systems that aim to minimize heat loss and protect insulation.

• Permits finished, weather-tight covering at all points of pipe support.
• Max load capacity of 1200 lbs.
• Recommended for welding to pipe for optimal installation.

Product Highlights

Suitable for insulated high-temperature systems, designed to enhance pipe insulation durability and effectiveness.

Product Information

Standard Information

• Manufacturer: ASC Engineered Solutions
• Domestic/Import: Domestic

Technical Specifications

• Clamp Material: Carbon Steel
• Dimensions: 12 inches in length
• Finish: Plain
• Nominal Size: 3/4 to 1-1/4 inches
• Series: FIG 160
• Temperature Rating: 650 degrees Fahrenheit
• Type: Curved
