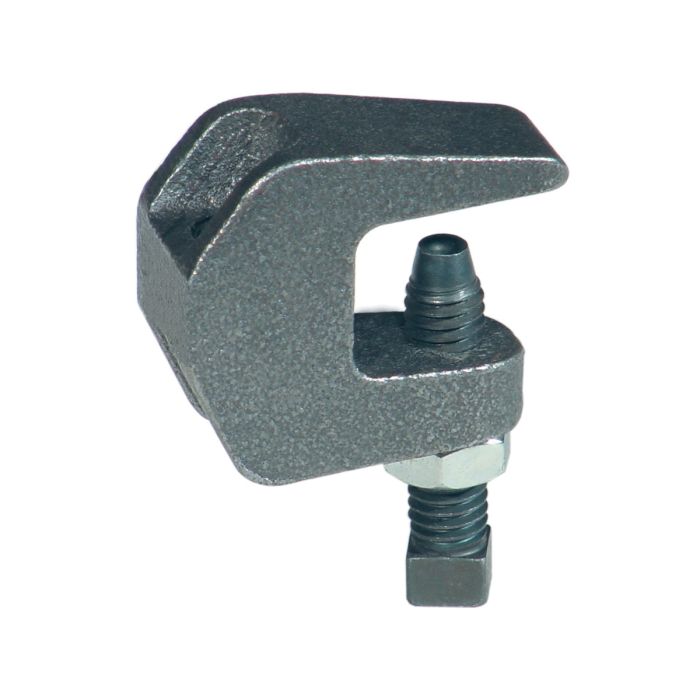

ANVIL 0500009113 FIG 92 Universal Standard Throat C-Clamp 1/2 in Rod 950 lb Top/760 lb Bottom Load

Product Description

The ANVIL 0500009113 FIG 92 Universal Standard Throat C-Clamp is designed for use with a half inch rod. This clamp supports a maximum load of nine hundred fifty pounds on the top and seven hundred sixty pounds on the bottom. Constructed from ductile iron, it has a zinc-plated finish for durability in various environments.

• Supports top load of nine hundred fifty pounds and bottom load of seven hundred sixty pounds
• Made of ductile iron for strength and longevity
• Zinc plated finish resists corrosion

Product Highlights

This clamp is suitable for HVAC applications and is designed for reliable performance and ease of use.

Product Information

Standard Information

• Load Capacity: 950 lb Top / 760 lb Bottom
• Rod Size: 1/2 in

Technical Specifications

• Material: Ductile Iron
• Finish: Zinc Plated
• Torque Specifications: 125 in-lb
• Temperature Rating: 450 deg F
• Type: Universal Standard Throat
