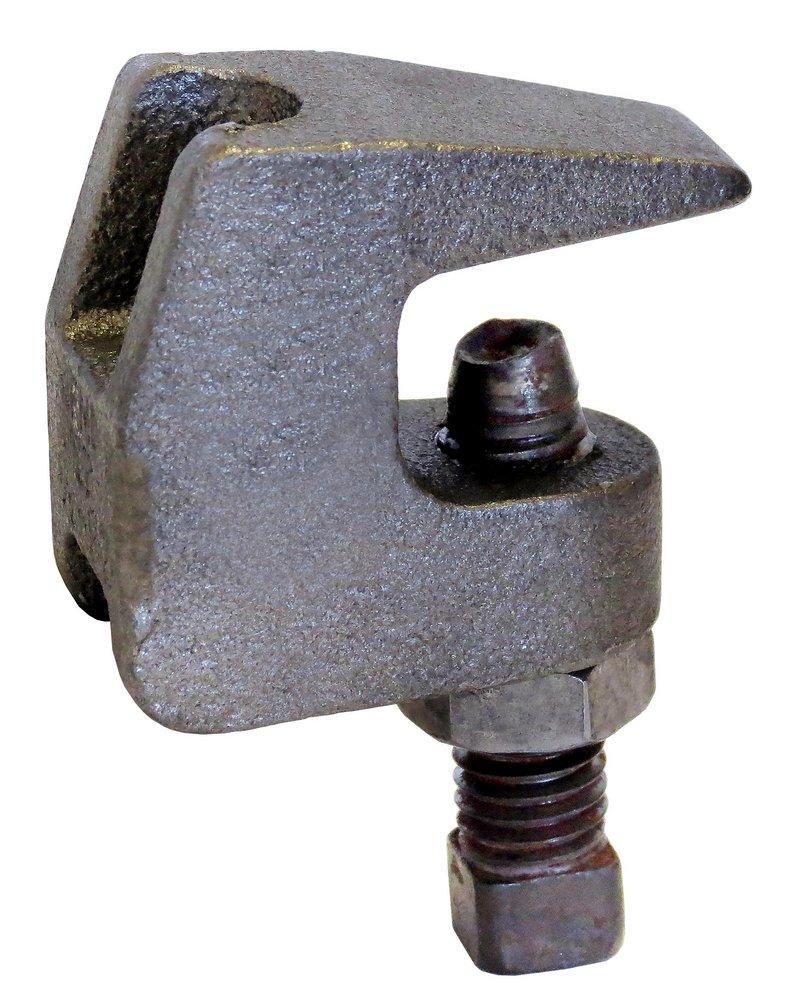

Anvil 0500009063 Fig 92 3/4 in. Plain Ductile Iron Drop-In Universal C Clamp Standard Throat

Product Description

Anvil 0500009063 is a drop-in universal C clamp designed for various applications. This clamp has a standard throat and is made of durable ductile iron. It is suitable for beam sizes up to three-quarters of an inch and features a cup-pointed set screw for secure installation.

• Load capacity of five hundred pounds at the top, two hundred fifty pounds at the bottom.
• Easy attachment to horizontal flanges of structural members.
• Includes jam nut for secure fastening.

Product Highlights

This clamp can be installed on either the top or bottom beam position, making it versatile for different mounting situations.

Product Information

Standard Information

• Brand: Anvil
• MPN: 0500009063

Technical Specifications

• Material: Ductile Iron
• Max Jaw Capacity: 3/4 inch
• Screw Size: 3/8 inch
• Overall Dimension: 13/16 inches width x 1-9/16 inches height
• Torque Rating: 60 pounds
• Temperature Rating: 450 degrees Fahrenheit
• Applicable Standards: A-A-1192A, WW-H-171-E, ANSI/MSS SP-69 and MSS SP-58, UL (Canada and US), ULC, FM
