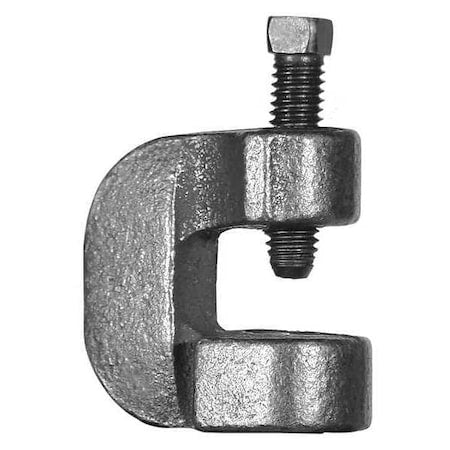

Anvil 0500007430 Fig 86 C-Clamp With Set Screw And Lock Nut, 3/4 In Rod, 500 Lb Load

Product Description

The ANVIL 0500007430 is a durable C-Clamp designed for secure attachment to beams. Constructed from malleable iron, this clamp supports a load capacity of 500 lb and is suitable for 3/4 inch threaded rods. It features a set screw and locknut for reliable installation, making it ideal for various industrial and construction applications, particularly with H-beams.

• Features a C-Clamp design with a set screw and locknut for secure installation.
• Constructed from malleable iron, supporting a load capacity of 500 lb.
• Designed for 3/4 inch threaded rods and suitable for H-beam mounting.

Product Highlights

Durable malleable iron C-clamp with 500 lb load capacity for 3/4 inch rods.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0500007430
• Country of Origin: United States

Technical Specifications

• Category: Clamp
• Material: Malleable Iron
• Type: C-Clamp
• Finish: Black Oxide
• Includes: Set Screw And Locknut
• Rod Size: 3/4 inch
• Standards: Federal Specification A-A-1192A (Type 23), WW-H-171-E (Type 23), ANSI/MSS SP-69, and ANSI/MSS SP-58 (Type 23). UL, ULC Listed (Sizes 3/8 in , 1/2 in , and3/4 in) and FM Approved (Sizes 3/8 in).
• Clamp Length: 2 in
• Throat Depth: 3/4 in
• Load Capacity: 500 lb
• Metal Detectable: Yes
• Beam Mount Location: Bottom
• For Beam Shape/Type: H-Beam
• Installation Torque: 60 in-lb
• Nominal Conduit/Pipe Size: 3/4 inch
• Special Features: For Attachment to W and M Beams
