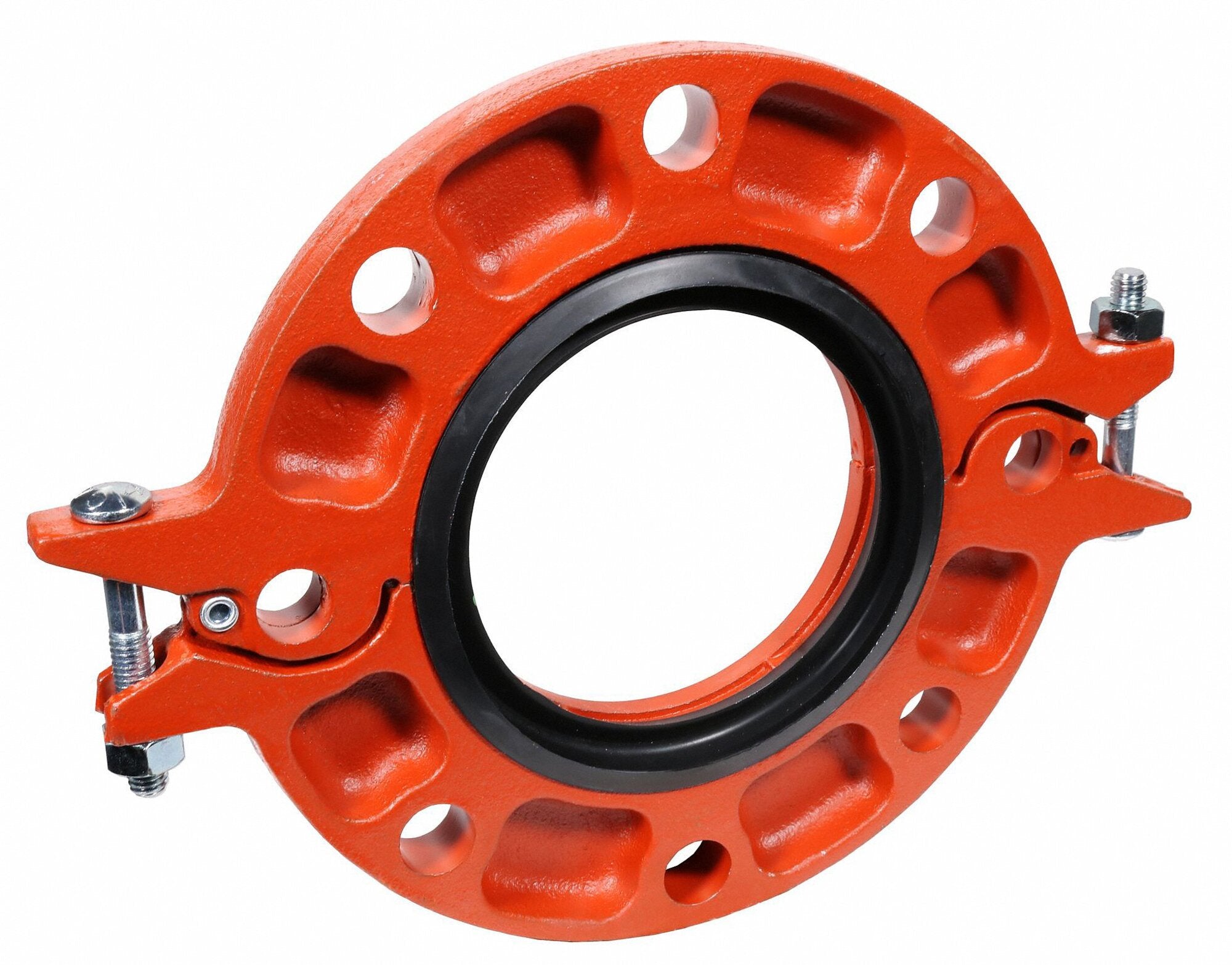

Anvil 0390201267 GRUVLOK Pipe Flange: Ductile Iron, 10 in Fitting Pipe Size, Class 150

Product Description

The ANVIL 0390201267 GRUVLOK pipe fitting combines roll-grooving and two-bolt coupling designs for a reliable joint. Grooved ends help maintain secure seals under both positive pressure and vacuum conditions. Made of ductile iron, this flange fitting is suitable for potable water applications.

• Fitting Connection Type: Grooved
• Maximum Operating Pressure: 300 psi
• Standards: ASTM A536; ASTM D2000; FM Approved; UL Listed

Product Highlights

Ductile iron flange fitting with grooved connection for potable water applications. Maintains secure seals under pressure and vacuum.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0390201267
• Country of Origin: USA

Technical Specifications

• Brand: GRUVLOK
• Specific Fitting Shape: Flange with EPDM Seal
• Class: Class 150
• Temp. Range: -20 to 180 F
• Pipe Fitting Material: Ductile Iron
• Standards: ASTM A536; ASTM D2000; FM Approved; UL Listed
• Basic Fitting Shape: Flange
• Application: Potable Water
• Bolt Circle Diameter: 14-1/4 in
• Bolt Hole Diameter: 1 in
• Finish/Coating: Zinc Plated
• Fitting Connection Type: Grooved
• Flange Outside Diameter: 10-3/4 in
• Flange Thickness: 1 in
• Item: Flange
• Number of Bolt Holes: 12
• Manufacturer Part Number: 0390201267
• Maximum Operating Pressure: 300 psi
