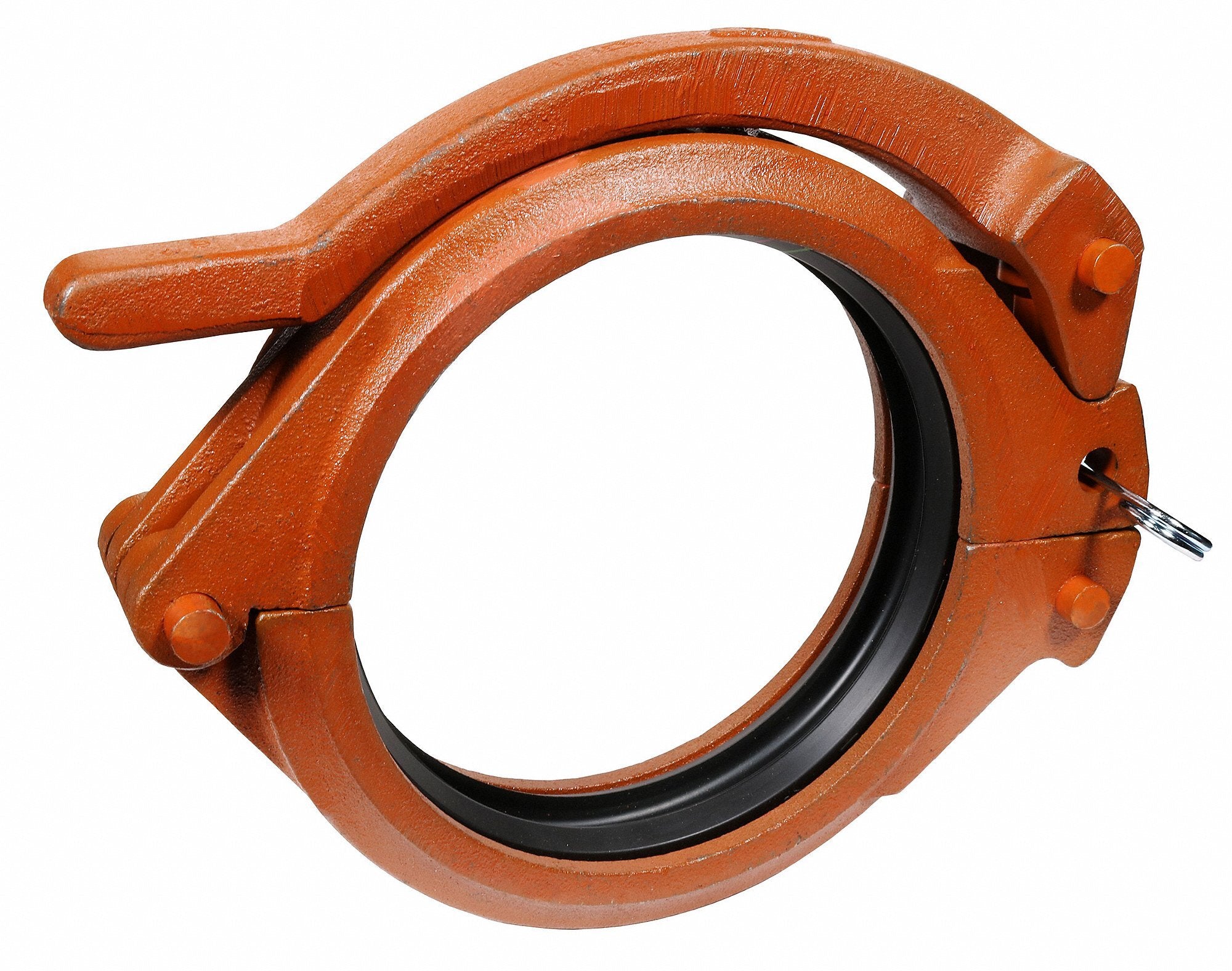

Anvil 0390200020 GRUVLOK HingeLOK Coupling 2 in Replacement 0390200020

Product Description

The ANVIL 0390200020 GRUVLOK HingeLOK Coupling combines roll-grooving and two-bolt coupling designs for a reliable joint. Grooved ends help maintain secure seals under both positive pressure and vacuum conditions. Provides system working pressure ratings up to 300 psi.

• Ductile iron housing
• 2" nominal size
• Grooved ends help maintain secure seals

Product Highlights

The GRUVLOK HingeLOK coupling is ideal for creating a reliable joint that resists external forces without special supports or expansion joints.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0390200020
• Country of Origin: USA

Technical Specifications

• Brand: GRUVLOK
• Specific Fitting Shape: HingeLOK Coupling
• Fitting Side A Nominal Pipe Size: 2 in
• Fitting Side A Type: Grooved
• Fitting Side B Nominal Pipe Size: 2 in
• Fitting Side B Type: Grooved
• Class: Class 150
• Pipe Fitting Material: Ductile Iron
• Basic Fitting Shape: Coupling
• Application: Air; Natural Gas; Non-Potable Water; Oil; Steam
• Finish/Coating: Painted
• Flange Outside Diameter: 2-3/8 in
• For Pipe Schedule: 40
• Includes Pre-Applied Thread Sealant: No
• Includes Seal: Yes
• Item: Hingelok Coupling
• Overall Length: 4-7/8 in
• Seal Material: EPDM
• Manufacturer Part Number: 0390200020
• Maximum Operating Pressure: 300 psi @ 150 F
• Material: Ductile Iron
• Connector type: Coupling
• Thread size: 2 inch
• Thread type: UN
