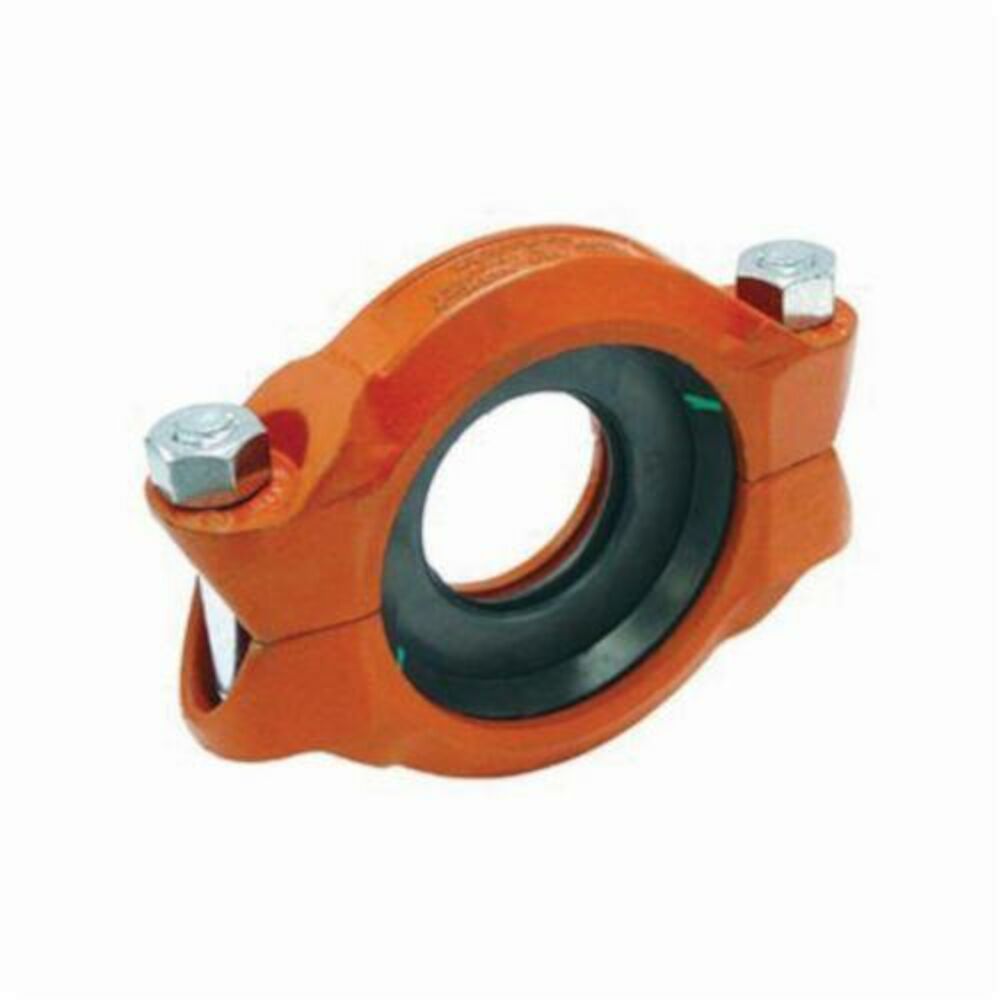

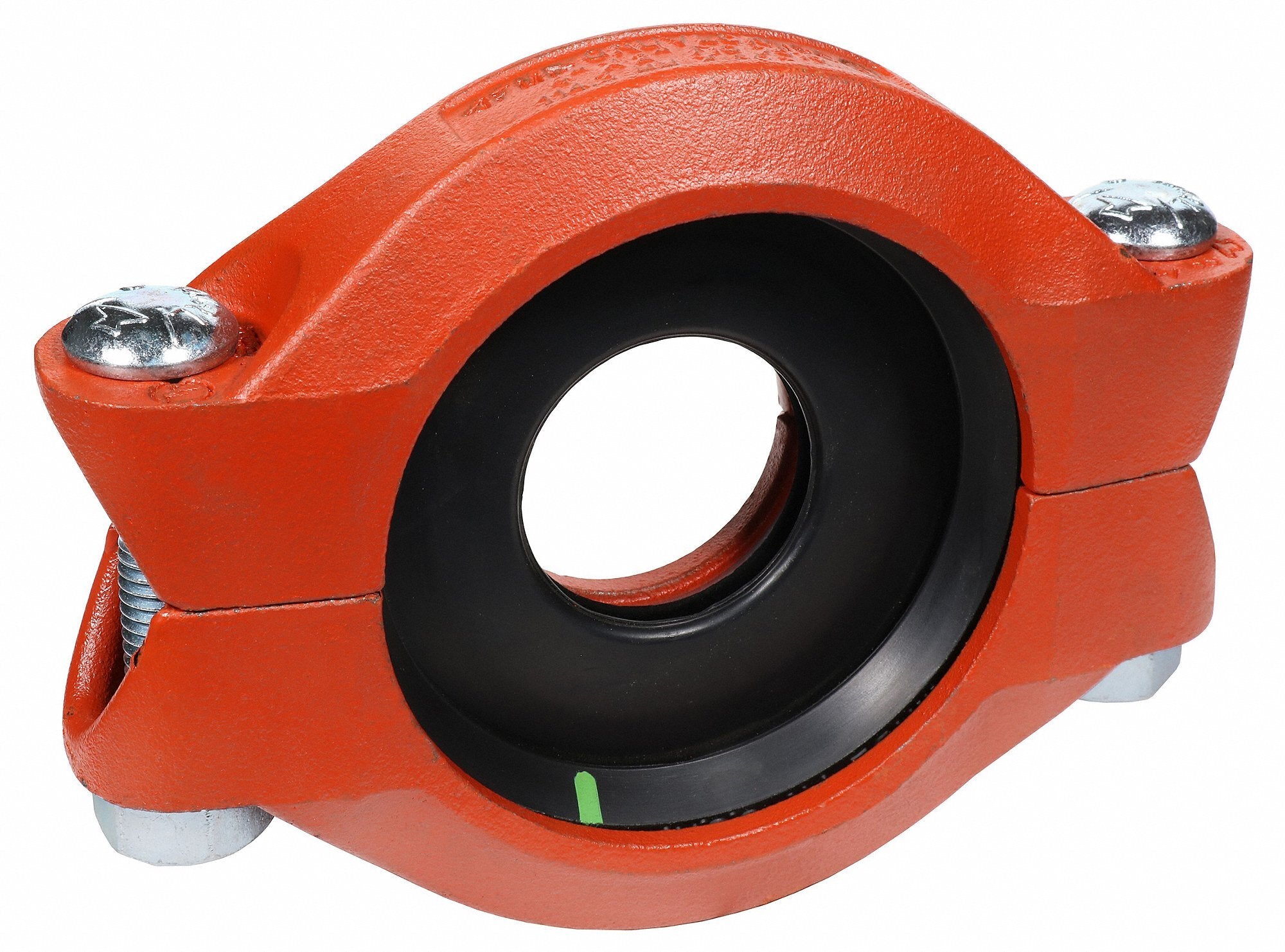

Anvil 0390009389 fig 7010 pipe reducing coupling 3x2-1/2 in

Product Description

The Anvil 0390009389 FIG 7010 is a pipe reducing coupling with EPDM gasket. Constructed from ductile iron with rust inhibiting paint, this coupling is designed for grooved pipe fittings, combining roll-grooving and two-bolt coupling designs for a reliable joint. It maintains secure seals under pressure and vacuum conditions.

• Reducing
• Bolted Type
• Ductile Iron/Malleable Iron Material

Product Highlights

The Anvil 0390009389 coupling is ideal for air, natural gas, non-potable water, oil, and steam applications. It has a pressure rating of 500 PSI and is suitable for pipe schedule 40.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0390009389
• Country of Origin: USA

Technical Specifications

• Category: Coupling
• Finish: Painted
• Item Weight (lbs): 4.12
• Material: Ductile Iron/Malleable Iron
• Gasket Details: EPDM
• Gasket Supplied: Yes
• Material Specification: ASTM A536 Grade 65-45-12/ASTM A47 Grade 32510
• Pressure Rating: 500 PSI
• Size A: 3 Inch
• Size B: 2-1/2 Inch
• Temperature Rating: -40 to 110 Deg F
• Type: Reducing, Bolted
• Specific Fitting Shape: Reducing Coupling
• Fitting Side A Nominal Pipe Size: 3 in
• Fitting Side A Type: Grooved
• Fitting Side B Nominal Pipe Size: 2-1/2 in
• Fitting Side B Type: Grooved
• Class: Class 150
• Pipe Fitting Material: Ductile Iron
• Standards: ASTM A536
• Basic Fitting Shape: Coupling
• Application: Air; Natural Gas; Non-Potable Water; Oil; Steam
• Bolt Circle Diameter: 1/2 in
• Bolt Hole Diameter: 2-3/4 in
• Fitting Side A Outside Diameter: 6-1/4 in
• Fitting Side B Outside Diameter: 6 in
• Flange Outside Diameter: 4-1/2 in
• For Pipe Schedule: 40
• Includes Pre-Applied Thread Sealant: No
• Includes Seal: Yes
• Overall Length: 7-1/8 in
• Seal Material: EPDM
• Maximum Operating Pressure: 300 psi @ 150° F
• UNSPSC: 0
• Country of Origin: USA (subject to change)
