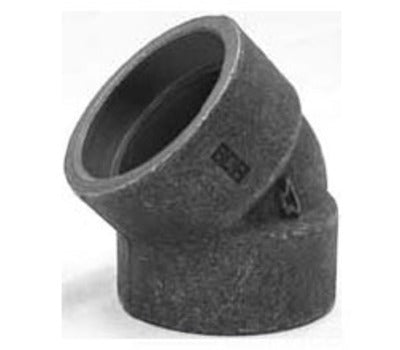

ANVIL 0362013807 1-1/2 in. Socket Weld Class 3000 Forged Steel 45-Degree Elbow

Product Description

The ANVIL 0362013807 is a 1-1/2 inch socket weld class 3000 forged steel 45-degree elbow. This fitting is made for reliable connections in piping systems. It is ideal for various industrial and commercial applications.

• Manufactured from forged carbon steel.
• Meets specifications such as ASTM A105 and ASME B16.11.
• Designed for high-pressure applications with a maximum pressure rating of 3000 lb.

Product Highlights

This elbow is designed to change the direction of piping while providing a strong, durable connection.

Product Information

Standard Information

• Brand: ANVIL
• Model Number: 0362013807

Technical Specifications

• Material: Forged Carbon Steel
• Bend Angle: 45 degrees
• Product Type: Straight
• Selling Size: 1-1/2 inches
• Catalog Number: 0362013807
• Schedule/Class: Schedule 80
• Specifications Met: ASTM A105, ASME B16.11, ASME B1.20.1, ASTM A182, ASTM A350
• Maximum Pressure Rating: 3000 lb
• Weight: 1.57 lb
