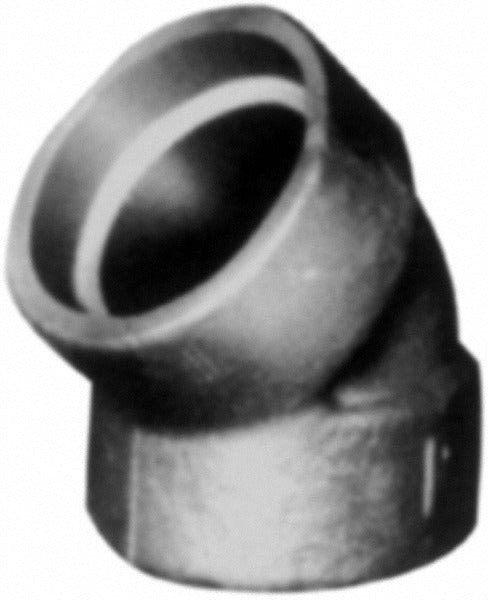

Anvil 0362012809 45 Degree Elbow 3/8 Inch Socket Weld Class 3000

Product Description

The ANVIL 0362012809 is a forged carbon steel 45 degree socket weld elbow rated for high-pressure piping service. Built to Class 3000 and Schedule 80 standards, it is designed for use in systems where reliable directional changes under elevated pressure are required. The 3/8 inch fitting accepts socket weld end connections and carries a pressure rating of 3000 psi for both liquid and gas service. A black finish is applied to the exterior. This fitting is installed by licensed plumbers, pipefitters, and mechanical contractors working on industrial or commercial piping systems.

This elbow is suited for 3/8 inch socket weld piping runs in commercial and industrial applications where forged fittings are specified. Typical installations include process piping, steam, gas distribution, and hydraulic lines where Schedule 80 Class 3000 components are required. The 45 degree angle allows gradual directional changes with less turbulence than a 90 degree fitting, making it a common choice in tight routing configurations.

Key Features

• Forged carbon steel construction for strength and durability in high-pressure service
• Class 3000 pressure rating with 3000 psi liquid and gas pressure capacity
• Schedule 80 wall thickness for compatibility with heavy-duty piping systems
• Socket weld end connections for clean, reliable fusion to pipe ends
• Black finish for corrosion resistance in standard service environments
• 45 degree elbow geometry for smooth directional routing in confined spaces

Compatibility

Designed as an OEM-style forged socket weld fitting for 3/8 inch Schedule 80 Class 3000 piping systems in commercial and industrial installations.

Installation Notes

Installation should be performed by a qualified pipefitter or licensed plumber in accordance with applicable mechanical and plumbing codes. Depressurize and isolate the piping system completely before cutting into any line or removing existing fittings. Socket weld connections require proper cleaning of the pipe end and fitting socket before welding, and all welds must meet the applicable code requirements for the service type. Do not exceed the rated pressure or temperature limits for the fitting class.
