Anvil 0361502008 Black Union 2-1/2 in Threaded Class 3000

Product Description

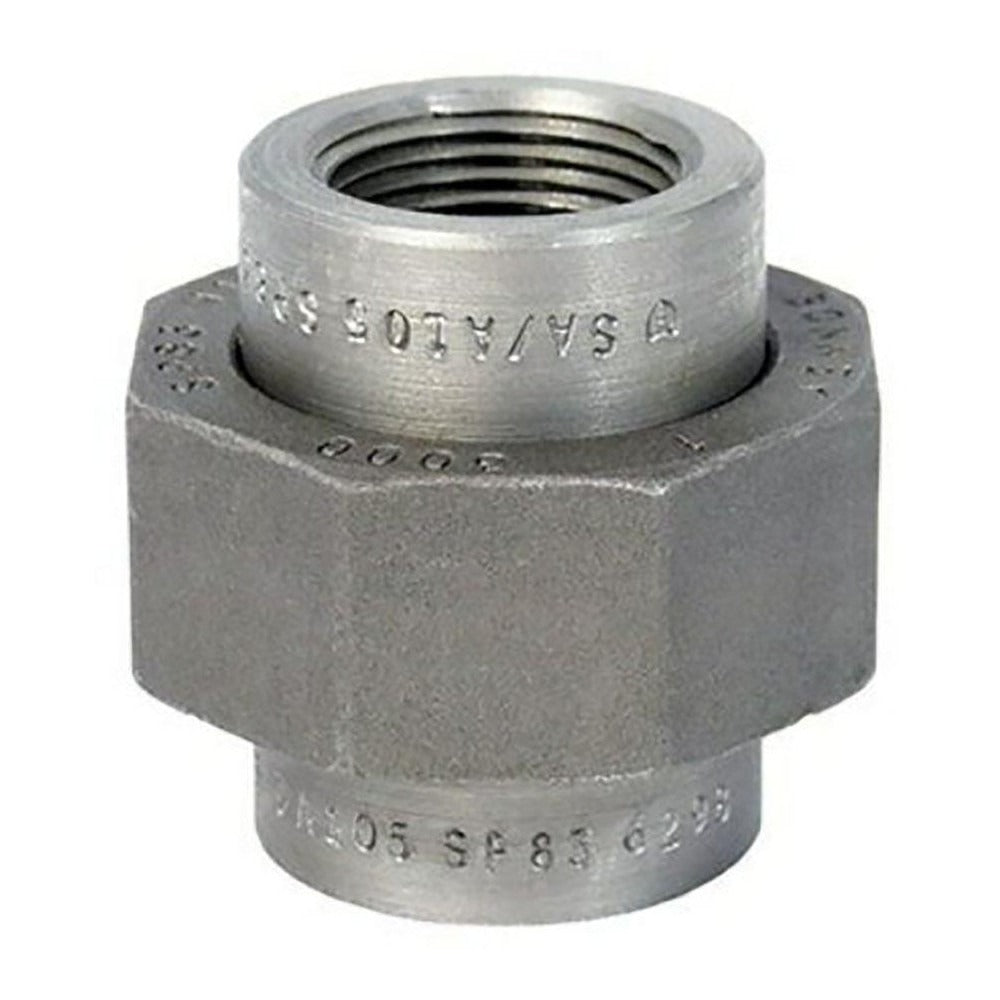

The ANVIL 0361502008 is a forged carbon steel threaded union designed for high-pressure piping systems in industrial and commercial applications. Sized at 2-1/2 inches with NPT threaded end connections, this union allows sections of pipe to be connected or disconnected without rotating the pipe itself. The black finish is standard for carbon steel fittings used in steam, gas, oil, and hydraulic service. Rated to 3000 psi, it meets ASME B16.11 forged fittings standards and ASME B1.20.1 thread requirements. Installation is performed by licensed pipefitters or plumbing professionals working on high-pressure distribution systems.

This union is suited for industrial process piping, mechanical rooms, commercial HVAC hydronic systems, steam distribution, and compressed gas lines where a serviceable threaded connection point is required. The Class 3000 pressure rating makes it appropriate for demanding service conditions. It is sold individually and fits standard 2-1/2-inch NPT threaded pipe.

Key Features

• Forged carbon steel construction for high-pressure service
• 2-1/2-inch NPT threaded end connections on both sides
• Class 3000 pressure rating at 3000 psi
• Black finish standard for carbon steel pipe fitting systems
• Meets ASME B16.11, ASME B1.20.1, ASTM A105, ASTM A182, and ASTM A350 standards
• Allows pipe disconnection without rotating adjacent pipe sections

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 2-1/2-inch NPT threaded carbon steel piping systems operating within Class 3000 pressure service requirements.

Installation Notes

Installation should be performed by a licensed pipefitter or journeyman plumber familiar with high-pressure threaded pipe systems. Depressurize and isolate the line completely before disassembly or installation. Apply thread sealant rated for the service medium — steam, gas, or liquid — in accordance with applicable codes including ASME B31.1 or B31.3 as appropriate. Do not over-torque the union nut, as forged fittings rely on a metal seat for sealing and over-tightening can damage the mating faces.
