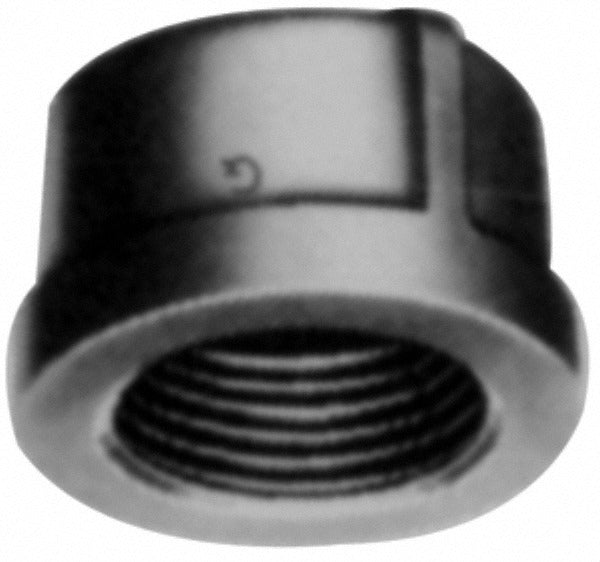

Anvil 0361189806 Threaded End Cap 2.5 in Class 3000 Sch 80

Product Description

The ANVIL 0361189806 is a forged carbon steel threaded end cap used to close off the open end of a threaded pipe. Finished in black, this fitting is rated Class 3000 and Schedule 80, making it suitable for high-pressure liquid and gas piping systems. At 2.5 inches, it accommodates standard pipe of that size and provides a secure, leak-resistant termination point. It is a standard choice for plumbers, pipefitters, and mechanical contractors working on pressurized piping assemblies where a durable, code-appropriate end closure is required.

This end cap is used in commercial and industrial piping installations involving liquid or gas service. Class 3000 fittings at Schedule 80 wall thickness are commonly specified in mechanical rooms, process piping, and utility distribution systems where elevated pressure ratings are required. It is threaded for direct engagement with male-threaded pipe ends, making it suitable for both new construction and retrofit applications without the need for welding.

Key Features

• Forged carbon steel construction for strength and durability under pressure
• Black finish suitable for standard pipe system identification and corrosion resistance in dry environments
• Class 3000 pressure rating with 3000 psi liquid and gas pressure rating
• Schedule 80 wall thickness for use in high-pressure applications
• Threaded end connection for tool-based installation without welding
• 2.5-inch fitting size for standard pipe of matching diameter

Compatibility

Designed as an OEM-style threaded end cap for use with 2.5-inch Schedule 80 forged carbon steel pipe fittings in liquid and gas pressure piping systems rated up to 3000 psi.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable mechanical and plumbing codes. Depressurize and isolate the piping system completely before removing or installing any threaded fittings. Apply an appropriate thread sealant or PTFE tape to the male threads before engaging the end cap. Tighten using a pipe wrench to the number of turns required for a leak-free seal without over-stressing the fitting.
