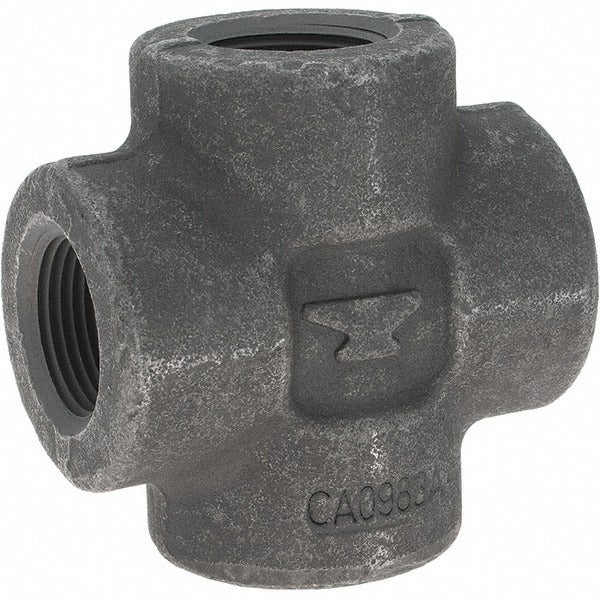

Anvil 0361130008 Black Cross 1 Inch Threaded Class 3000

Product Description

The ANVIL 0361130008 is a forged carbon steel threaded cross fitting designed for high-pressure piping systems in industrial, mechanical, and commercial plumbing applications. Built to a Class 3000 pressure rating of 3000 psi, this cross fitting connects four pipe runs at 90-degree intersections using NPT threaded end connections. The black finish is standard for carbon steel fittings used in gas, steam, and liquid service lines. Compliance with ASME B1.20.1, ASME B16.11, ASTM A105, ASTM A182, and ASTM A350 confirms dimensional accuracy and material traceability. Licensed plumbers, pipefitters, and mechanical contractors are the primary installers of this type of fitting.

This fitting is sized at 1 inch and is suited for use in residential, commercial, and light industrial piping systems where a four-way branch connection is required. Common applications include natural gas distribution piping, steam systems, hydraulic lines, and general pressure piping where carbon steel construction and NPT threading are specified. The Class 3000 rating makes it appropriate for elevated-pressure service conditions beyond the range of standard malleable iron fittings.

Key Features

• Class 3000 pressure rating at 3000 psi for high-pressure piping service
• Forged carbon steel construction meets ASTM A105, ASTM A182, and ASTM A350 material standards
• NPT threaded end connections per ASME B1.20.1 for leak-tight assembly
• Dimensional compliance with ASME B16.11 forged fittings standard
• Black finish suitable for gas, steam, and liquid service lines
• 1-inch fitting size for standard pipe system integration

Compatibility

Designed as an OEM-style forged carbon steel cross fitting for use in 1-inch NPT threaded piping systems rated for Class 3000 service.

Installation Notes

Installation should be performed by a licensed pipefitter or plumber in accordance with applicable mechanical and plumbing codes, including ASME and IFGC requirements where gas service is involved. Shut off and depressurize the piping system fully before disassembling or installing any threaded fitting. Apply an appropriate thread sealant or PTFE tape rated for the service medium before making up threaded connections. Do not over-torque threaded connections, as forged steel fittings can crack cast or softer mating components if excessive force is applied.
