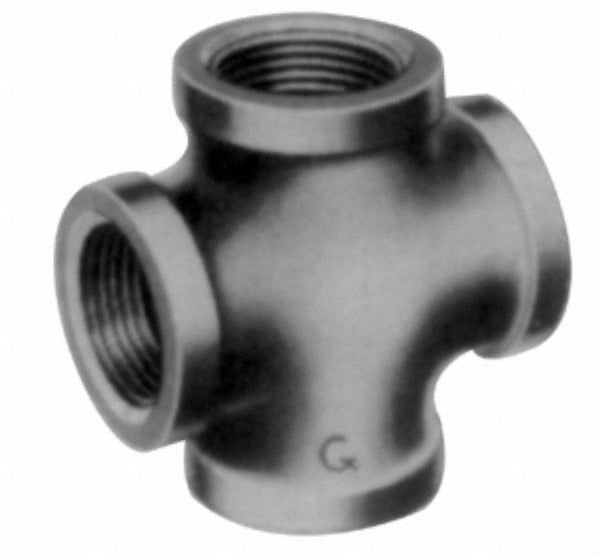

Anvil 0361129208 Black Cross Fitting 1/4 in Threaded Class 3000

Product Description

The ANVIL 0361129208 is a forged carbon steel black cross fitting designed for threaded pipe connections in high-pressure plumbing, mechanical, and industrial piping systems. This four-way cross fitting accepts 1/4 inch NPT threaded pipe on all ports and carries a Class 3000 pressure rating of 3000 psi, making it suitable for demanding liquid and gas service. The black finish is a standard mill-applied coating typical of carbon steel fittings in this class. Licensed plumbers, pipefitters, and mechanical contractors install this type of fitting where a branch intersection is required in a threaded pipe assembly.

This fitting is suited for residential and commercial plumbing, HVAC hydronic systems, compressed air, and industrial gas distribution where 1/4 inch threaded cross connections are required. Its forged construction meets multiple ASME and ASTM standards, qualifying it for code-compliant installations in mechanical rooms, utility systems, and process piping. The compact 1/4 inch size is commonly used in instrument lines, pilot lines, and small-bore branch connections.

Key Features

• Forged carbon steel construction for strength in high-pressure service
• Class 3000 rated at 3000 psi liquid and gas pressure
• 1/4 inch NPT threaded end connections on all four ports
• Black finish standard for carbon steel fittings
• Meets ASME B1.20.1, ASME B16.11, ASTM A105, ASTM A182, and ASTM A350 standards

Compatibility

Designed as an OEM-style replacement and standard-service fitting for threaded carbon steel piping systems requiring 1/4 inch NPT Class 3000 cross connections.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable mechanical codes such as the IPC or IFGC. Shut off and depressurize the system completely before cutting into any existing line or removing fittings. Apply appropriate thread sealant or PTFE tape to all NPT threads before assembly. Do not over-torque threaded connections, as forged fittings can crack cast or softer mating components.
