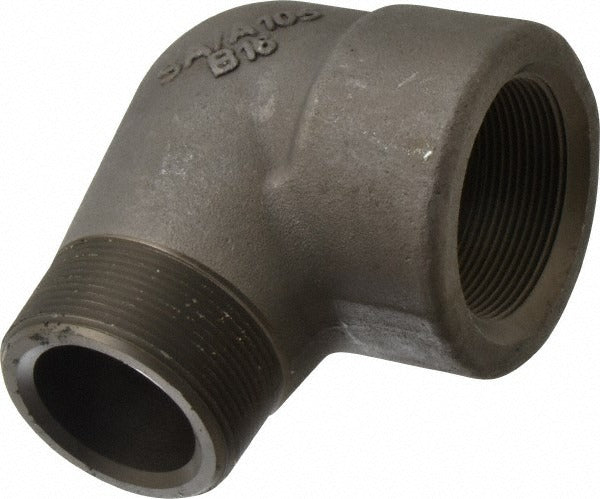

Anvil 0361109705 Black 90 Street Elbow 2 in Class 3000 Npt

Product Description

The ANVIL 0361109705 is a 2-inch black 90-degree street elbow designed for high-pressure piping systems in industrial and commercial applications. Manufactured from forged carbon steel with a black finish, this fitting carries a Class 3000 pressure rating and is threaded to NPT standards per ASME B1.20.1. One end accepts a male threaded connection and the other provides a female threaded socket, allowing direct inline installation without additional couplings. At 5 pounds, the forged construction provides the wall thickness and integrity required for demanding service conditions. Licensed pipefitters and plumbers install this type of fitting in steam, gas, oil, and hydraulic piping systems.

This street elbow is suited for Schedule 80 threaded piping systems in industrial plants, commercial mechanical rooms, and process piping installations. It changes flow direction 90 degrees within a compact footprint. Applications include steam distribution, compressed air lines, natural gas distribution, and hydronic heating systems where a high-pressure-rated carbon steel fitting is required. The NPT thread form ensures compatibility with standard pipe thread assemblies used throughout North American trade work.

Key Features

• Forged carbon steel construction for high-strength, high-pressure service
• Class 3000 pressure rating suitable for Schedule 80 piping systems
• NPT threaded connections per ASME B1.20.1 for reliable, leak-resistant sealing
• Black finish for corrosion resistance in typical indoor piping environments
• 90-degree street elbow geometry allows direction change without an additional coupling
• Meets ASME B16.11, ASTM A105, ASTM A182, and ASTM A350 standards

Compatibility

Designed as an OEM-style forged carbon steel threaded fitting for Schedule 80 NPT piping systems rated to Class 3000 service in commercial and industrial piping applications.

Installation Notes

Installation should be performed by a licensed pipefitter or plumber in accordance with applicable mechanical and plumbing codes. Depressurize and isolate the piping system completely before disassembling any threaded connections. Apply an appropriate thread sealant or PTFE tape to the male threads before assembly and tighten to the degree specified by the applicable code or system design documents. Do not over-tighten forged threaded fittings, as this can stress the fitting body or damage threads.
