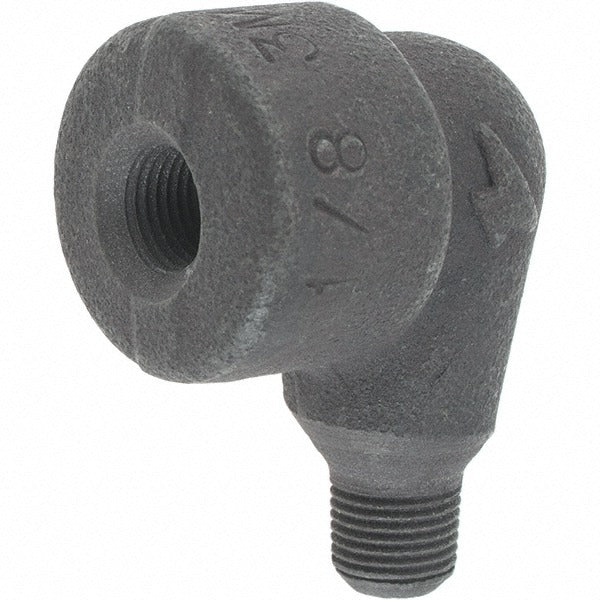

Anvil 0361109309 90 Degree Street Elbow 1/8 in Class 3000

Product Description

The ANVIL 0361109309 is a 90-degree street elbow designed for threaded pipe assemblies in high-pressure gas and liquid systems. Machined from forged carbon steel with a black finish, this Class 3000 fitting handles working pressures up to 3000 psi. It meets ASME B1.20.1 and ASME B16.11 dimensional standards and is produced to ASTM A105, ASTM A182, and ASTM A350 material specifications. The 1/8-inch NPT threaded connection makes it a direct-fit solution for tight-clearance piping runs where a standard elbow and separate fitting would not seat properly. Licensed plumbers, pipefitters, and mechanical contractors install this type of fitting in steam, gas, oil, and hydraulic line applications.

This street elbow is suited for residential and commercial piping systems where Schedule 80 carbon steel fittings are required. Common applications include natural gas distribution headers, compressed air lines, steam piping, and hydronic heating manifolds. The 1/8-inch size is frequently used on instrument tap-off lines, pressure gauge ports, and small-bore branch connections. Its compact forged body is appropriate for confined mechanical rooms and equipment skids where turning radius is limited.

Key Features

• Forged carbon steel construction rated to Class 3000 and 3000 psi working pressure
• 1/8-inch NPT threaded end connections for standard pipe thread engagement
• Black finish for corrosion resistance in dry or indoor service environments
• Meets ASME B16.11 forged fittings standard and ASME B1.20.1 pipe thread standard
• Material certified to ASTM A105, ASTM A182, and ASTM A350
• Schedule 80 compatible fitting for use in pressure-rated piping systems

Compatibility

Designed as an OEM-style replacement or new-installation Class 3000 forged carbon steel street elbow for 1/8-inch NPT threaded pipe systems operating within rated pressure limits.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable codes, including IFGC and ASME B31 piping standards. Depressurize and isolate the line before disassembly or installation. Apply an appropriate thread sealant or PTFE tape rated for the service medium to the male NPT threads before making up the joint. Do not over-torque the fitting, as forged carbon steel street elbows can crack cast or thin-wall mating connections if excessive force is applied.
