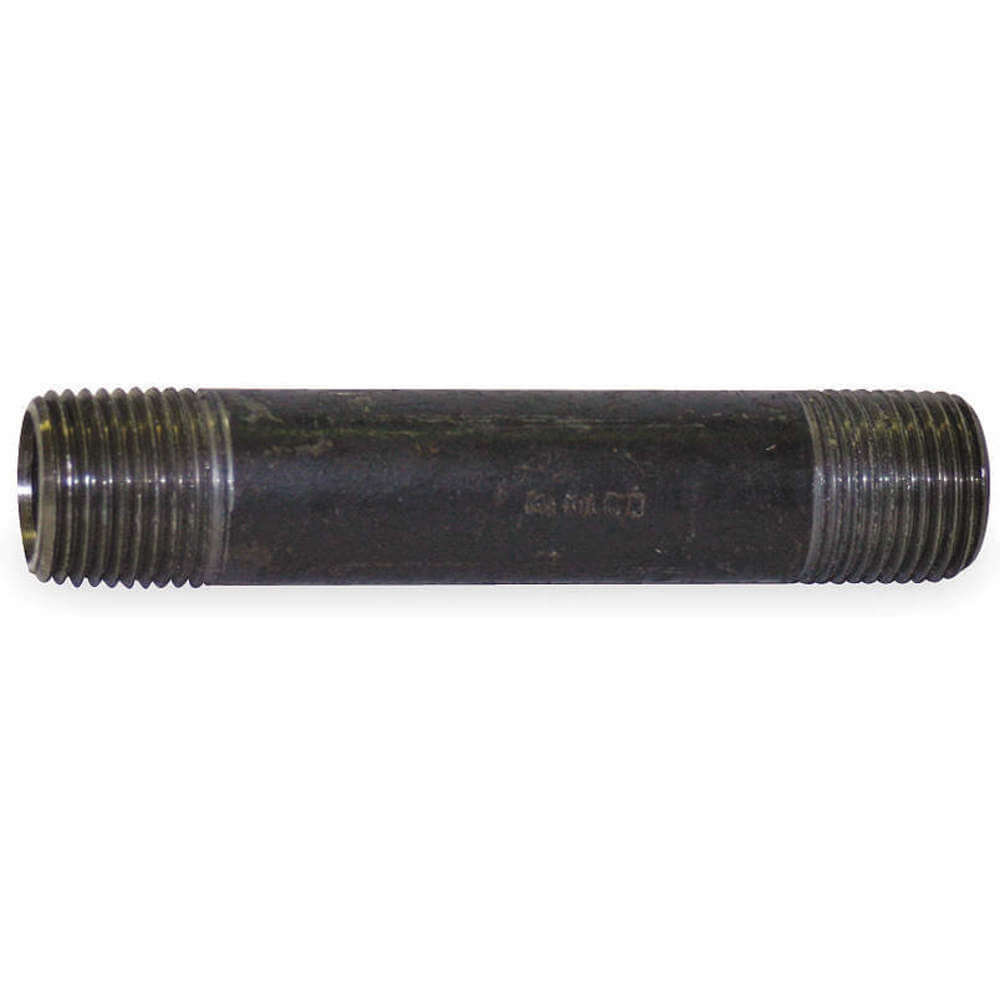

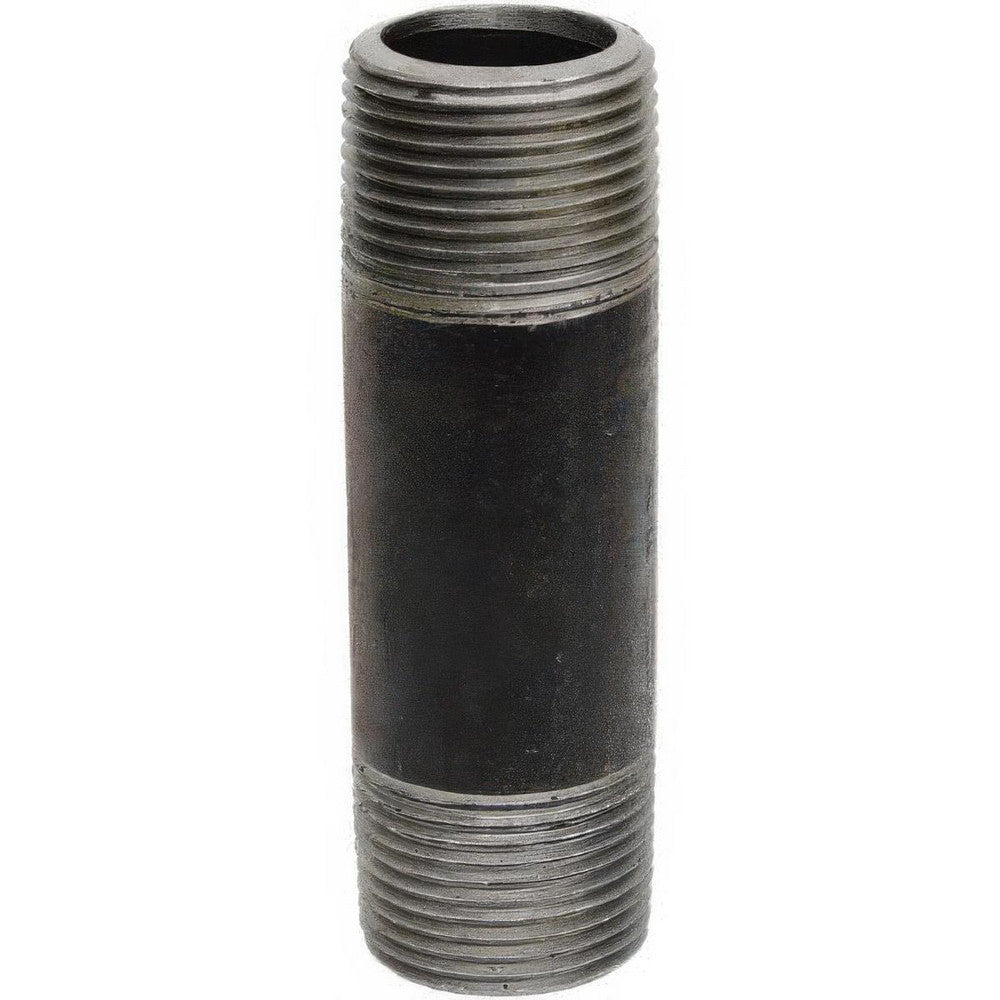

Anvil 0332626605 1X10 XHVY BLK SMLS NIPPLE

Product Description

The ANVIL 0332626605 1X10 XHVY BLK SMLS NIPPLE is a schedule 80, seamless steel pipe nipple. Suitable for air, gas, non-potable water, oil, and steam applications. Features threaded connections on both ends and a black anodized finish/coating. It adheres to ASTM A106 GRADE B and ASTM A733 standards.

• Constructed from steel with a Grade B material grade
• Features threaded connections on both ends for secure fitting
• Suitable for applications with a maximum pressure of 3000 psi

Product Highlights

This seamless black pipe nipple is designed for high-pressure applications and is threaded for easy installation.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0332626605
• Country of Origin: UNITED STATES

Technical Specifications

• MPN: 0332626605
• Brand: ANVIL
• Pipe Size (Inch): 1
• Full or Partial Threading: Threaded on Both Ends
• Schedule: 80
• UNSPSC Code: 40175305
• Item: Nipple
• Application: Air, Gas, Non-Potable Water, Oil, Steam
• Basic Connection Type: Threaded At Both Ends
• Body Material: Steel
• Connection Type: Threaded At Both Ends
• Finish/coating: Black Anodized
• Fitting Compatibility: Schedule 80
• For Pipe Size: 1"
• Inside Diameter: 1"
• Material: Steel
• Material Grade: Grade B
• Max. Pressure: 3000 psi
• Max. Steam Pressure: 300 psi WSP @ 550°F
• Maximum Operating Pressure: 2000 psi @ 150°F
• Maximum Steam Pressure: 300 psi @ 550°F
• Metal Pipe Construction: Seamless
• Nominal Pipe Size: 1"
• Outside Diameter: 1.315"
• Overall Length: 10"
• Seamless/welded: Seamless
• Side A Connection Type: Threaded
• Side A Gender: Male
• Side A Thread Type: NPT
• Side B Connection Type: Threaded
• Side B Gender: Male
• Side B Thread Type: Npt
• Thread Configuration: Threaded On Both Ends
• Wall Thickness: 0.172"
• standard: ASTM A106 GRADE B, ASTM A733
