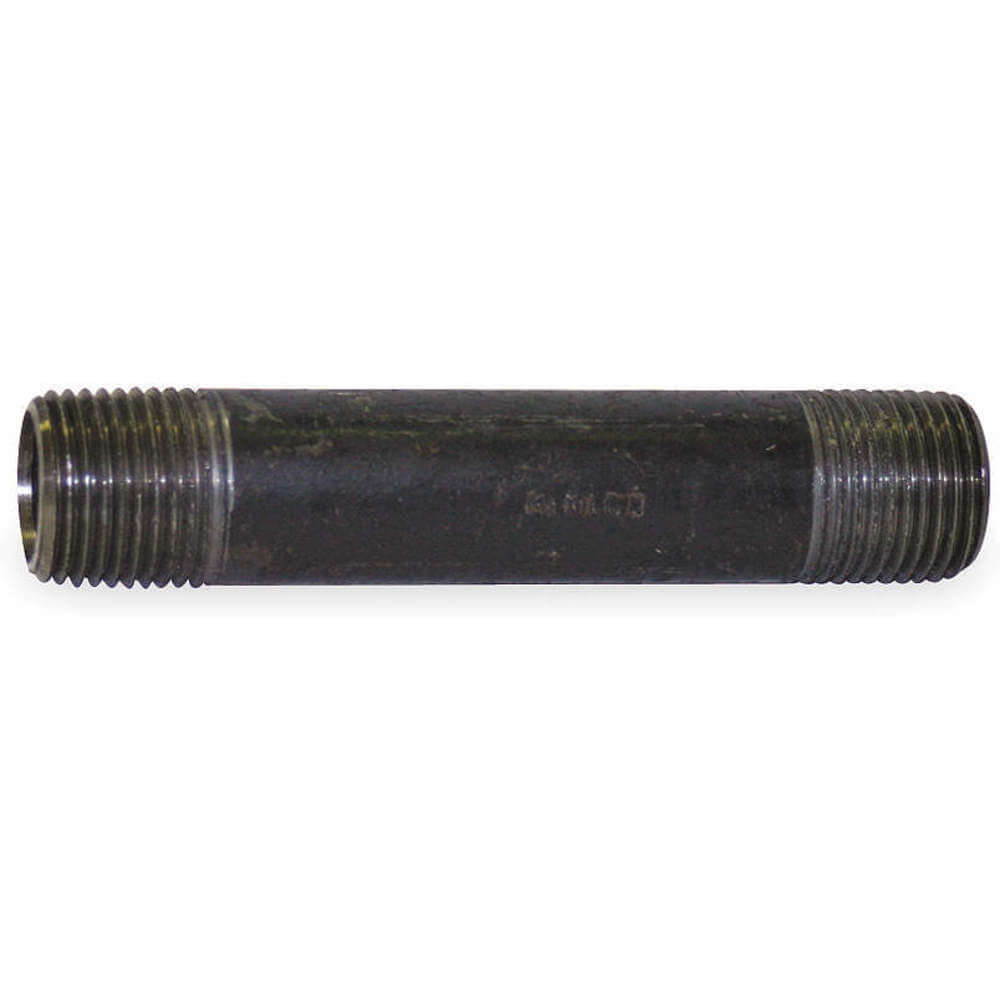

Anvil 0332601004 Nipple, sch 80, black, seamless, pipe size 1/8 inches, close length 3 inches

Product Description

The ANVIL 0332601004 is a Nipple, SCH 80, Black, Seamless, with a Pipe Size of 1/8" and a Close Length of 3". It is suitable for use in air, gas, non-potable water, oil, and steam applications. The nipple features threaded connections on both ends and is constructed from steel material.

• Constructed from Grade B steel with a black anodized finish
• Features threaded connections on both ends for easy installation
• Suitable for high-pressure applications up to 3000 psi

Product Highlights

Seamless steel nipple with threaded ends, ideal for various piping applications requiring durability and high-pressure resistance.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0332601004
• Country of Origin: US

Technical Specifications

• Item: Nipple
• Application: Air, Gas, Non-Potable Water, Oil, Steam
• Basic Connection Type: Threaded At Both Ends
• Body Material: Steel
• Connection Type: Threaded At Both Ends
• Finish/coating: Black Anodized
• Fitting Compatibility: Schedule 80
• For Pipe Size: 1/8"
• Inside Dia.: 1/8"
• Inside Diameter: 1/8"
• Length: 3"
• Material: Steel
• Material Grade: Grade B
• Max. Pressure: 3000 psi
• Max. Steam Pressure: 300 psi WSP @ 550°F
• Maximum Operating Pressure: 2000 psi @ 150°F
• Metal Pipe Construction: Seamless
• Nominal Pipe Size: 1/8"
• Outside Dia.: 0.405"
• Outside Diameter: 25/64"
• Overall Length: 3"
• Schedule: 80
• Seamless/welded: Seamless
• Side A Connection Type: Threaded
• Side A Gender: Male
• Side A Thread Type: NPT
• Side B Connection Type: Threaded
• Side B Gender: Male
• Side B Thread Type: Npt
• Thread Configuration: Threaded On Both Ends
• Wall Thickness: 0.094"
• standard: ASTM A106 GRADE B, ASTM A733
