Product Description

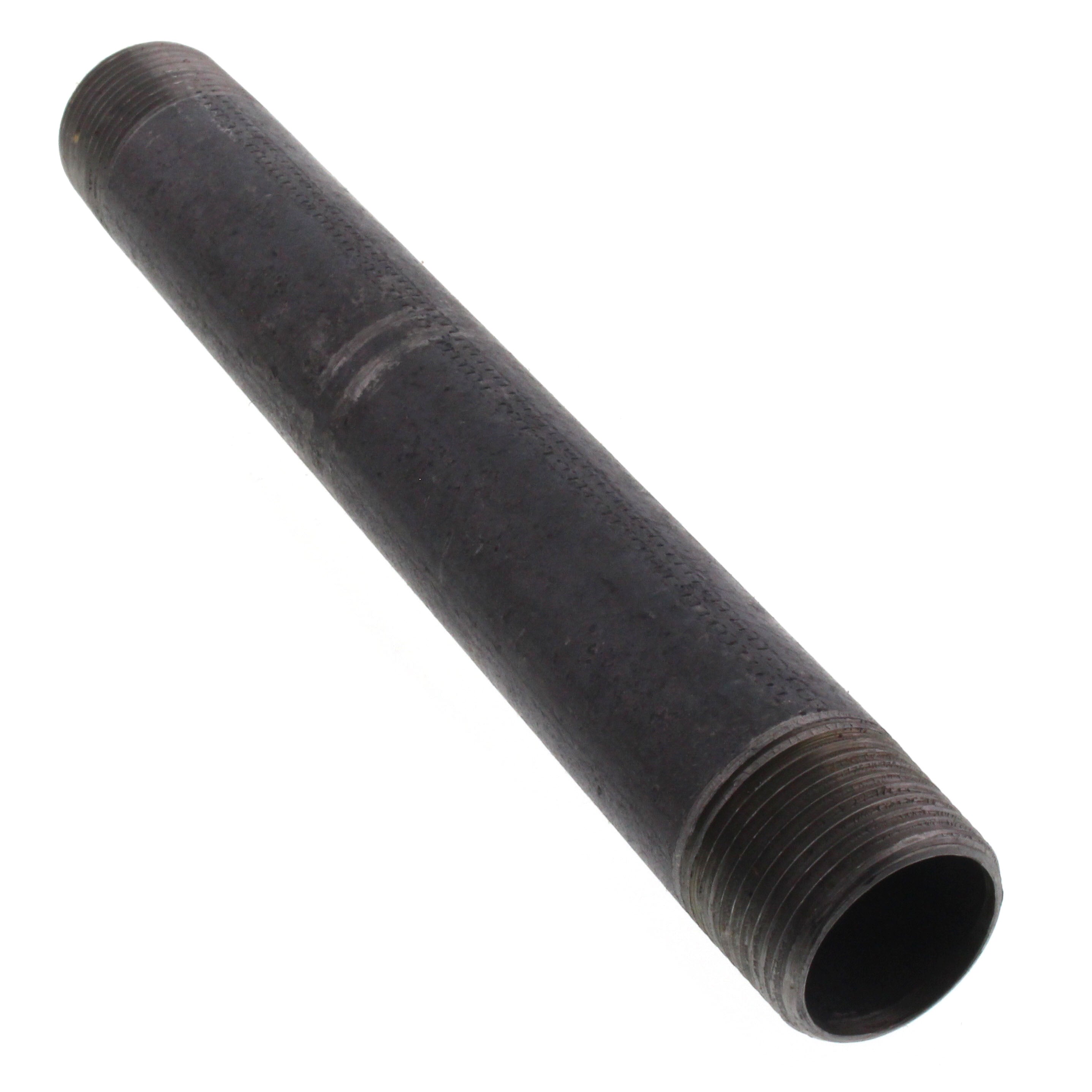

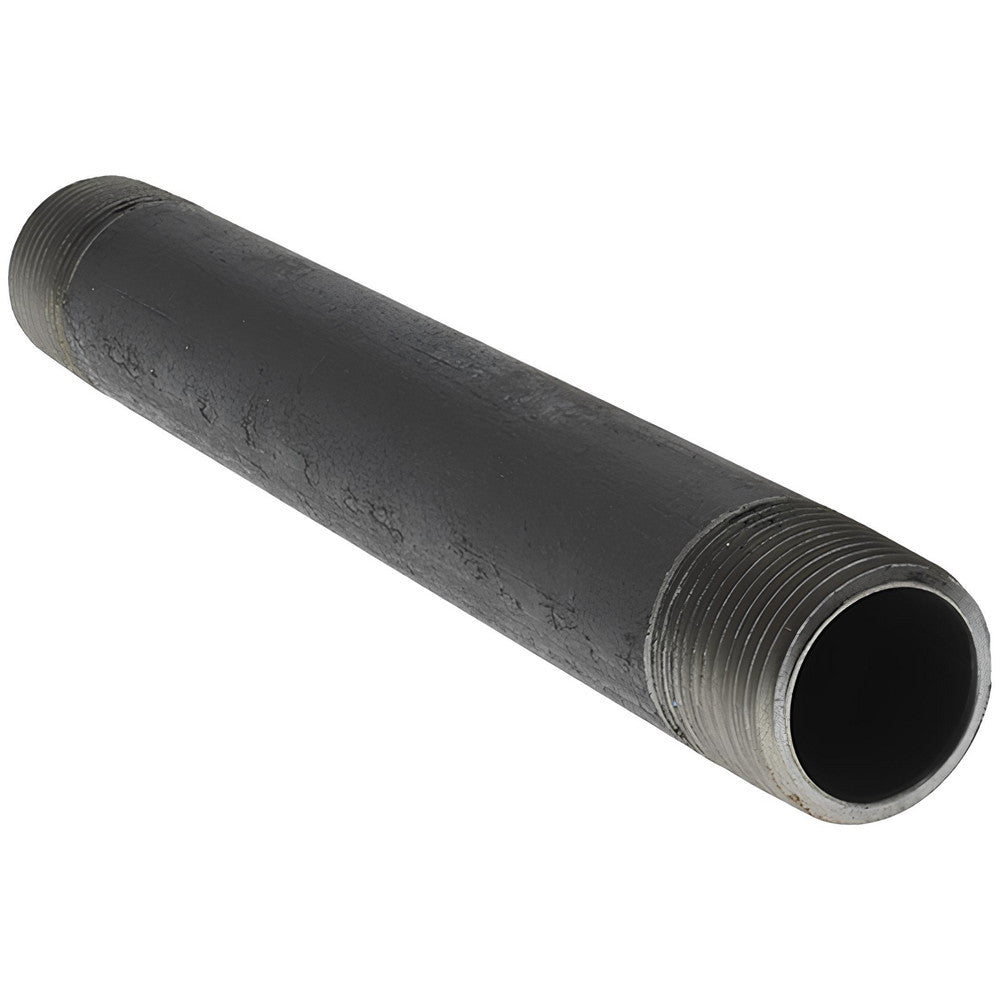

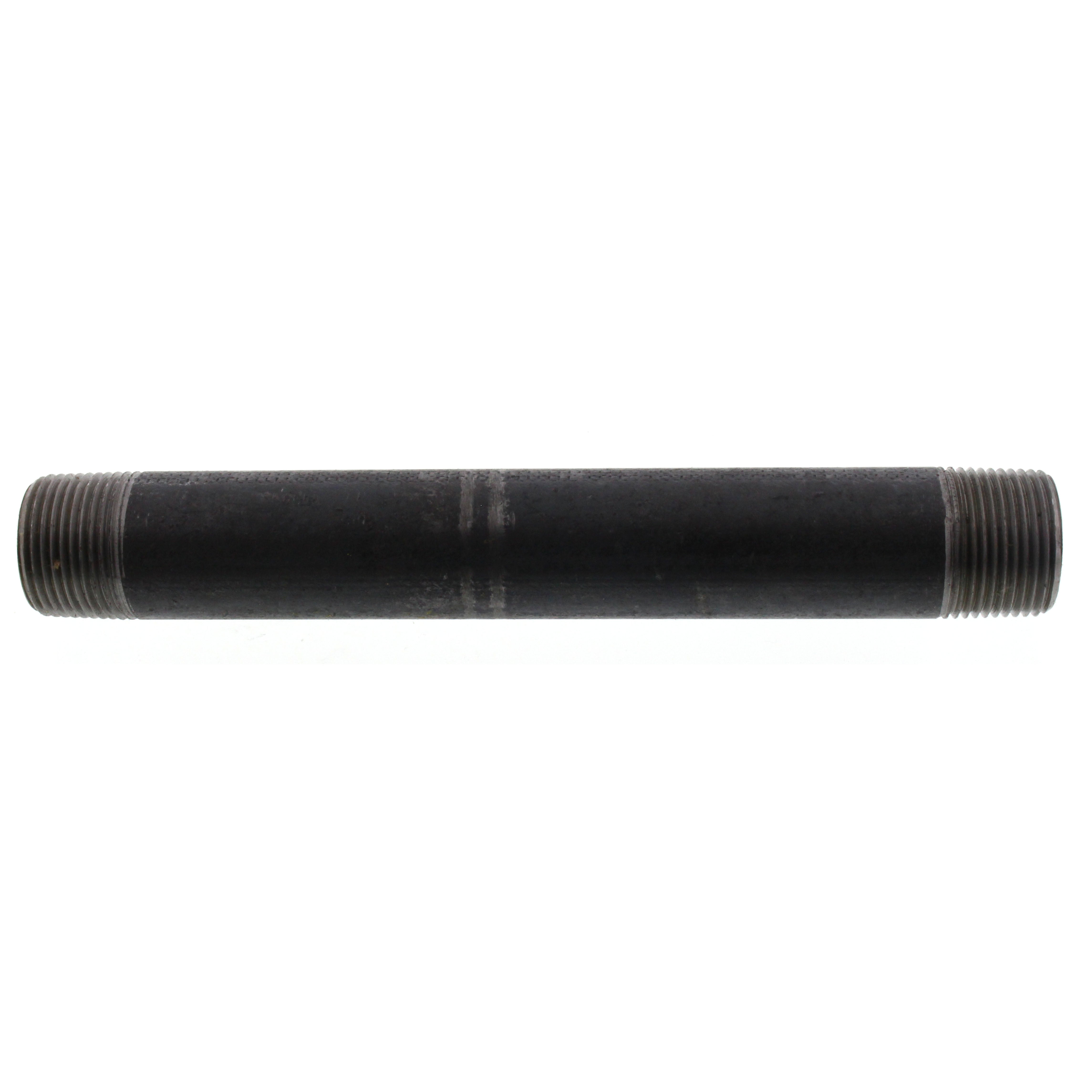

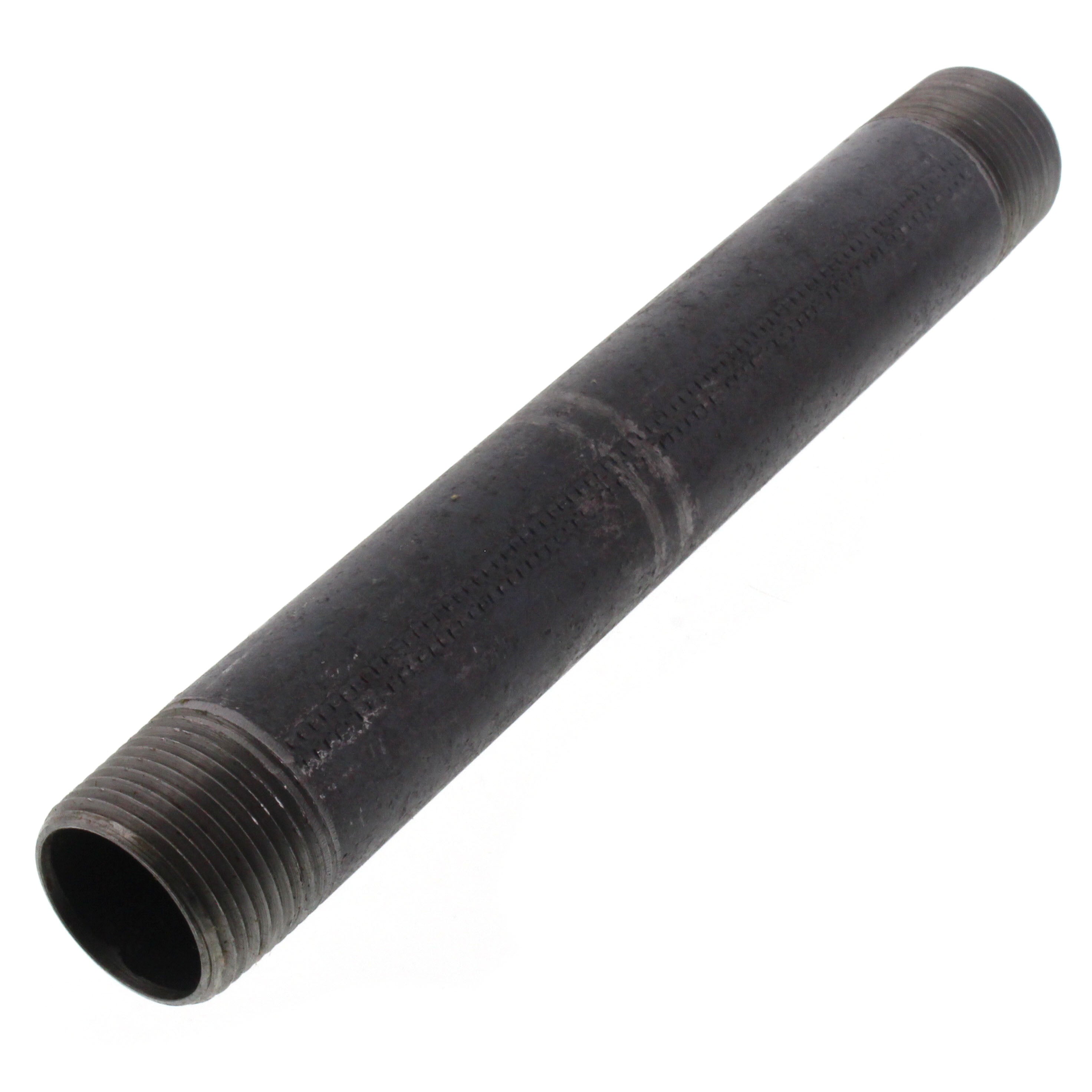

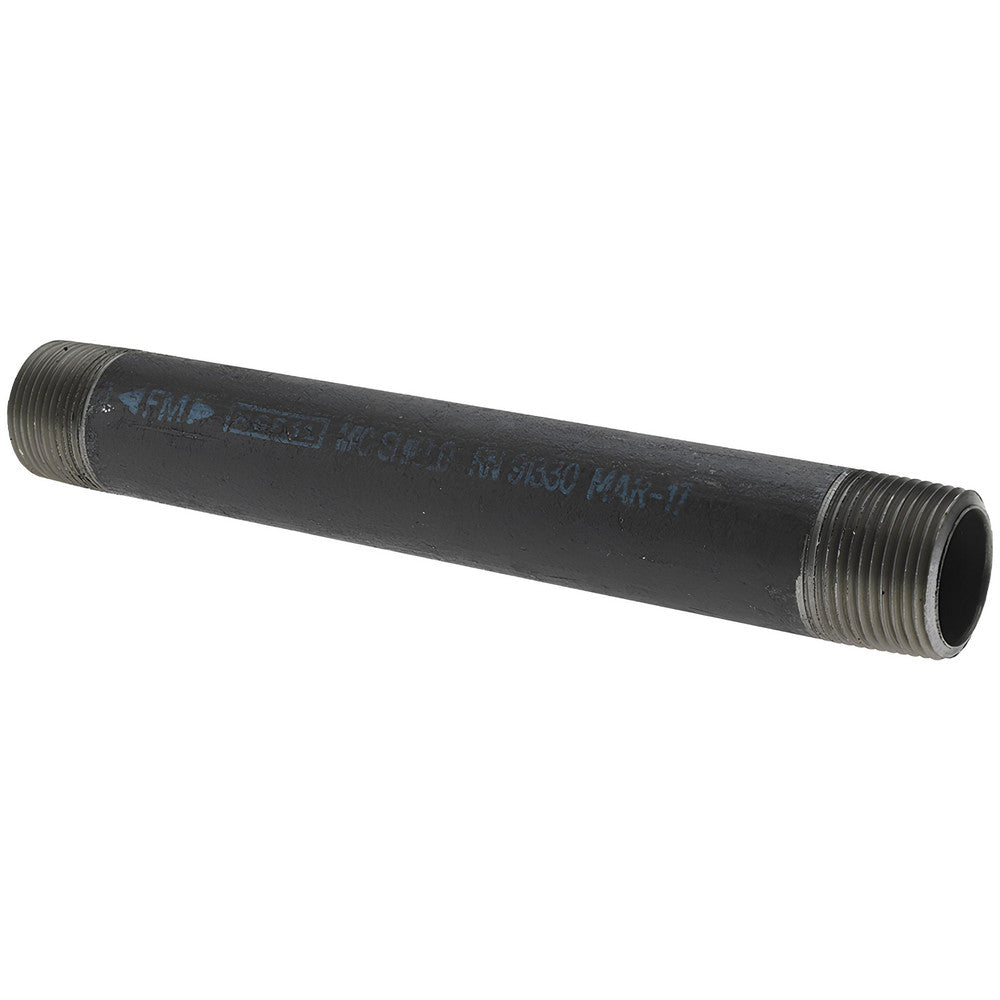

The ANVIL 0330026808 1X9 STD BLK NIPPLE is suitable for plumbing applications. Constructed from steel with a black finish, this welded pipe nipple has a 1 inch size and 9 inch overall length. It conforms to ASME B1.20.1 and federal specification WWN-351 applicable standards.
- 1" Size
- Steel Material
- 9" Length
- Male Thread Type
- Threaded Connection Type
Product Highlights
The ANVIL 0330026808 black steel nipple is ideal for plumbing, mechanical, HVAC, industrial, fire protection, and oil and gas applications.
Product Information
Standard Information
-
Brand: ANVIL
-
Manufacturer Part Number: 0330026808
-
Country of Origin: China
Technical Specifications
-
MPN: 0330026808
-
Brand: Anvil International
-
Reference ID: ANVIL0330026808
-
Size: 1"
-
Material: Steel
-
Pipe Size: 1.315" (O.D)
-
Application: Plumbing, Mechanical, HVAC, Industrial, Fire Protection to Mining, Oil and Gas
-
Thread Type: Male
-
Product Type: Black Nipple
-
Connection Type: Threaded
-
Model: 0330026808
-
Country of Origin: China
-
Pipe Size (Inch): 1
-
Full or Partial Threading: Threaded on Both Ends
-
Schedule: 40 S
-
Construction: Welded
-
Outside Diameter (Inch): 1
-
Thread Size: 1
-
UNSPSC Code: 40175305
-
Applicable Standard: ASME B1.20.1, Federal Specification WWN-351
-
End Connection: Male Threaded x Male Threaded
-
Finish: Black
-
Material Specification: ASTM A53/A733
-
Process: Welded
-
Size A: 1 Inch
-
Size B: 1 Inch
-
VENDOR Product No: 0330026808
-
Sub Brand: Beck®
-
Series/Model: 339
-
Item Name: Pipe Nipple
-
Type: Standard
-
Nominal Size: 1 x 1 Inch
-
Outer Diameter: 1.315 Inch
-
Pressure Class: 150 lb
-
Method Of Manufacturer: Continuous Welded
