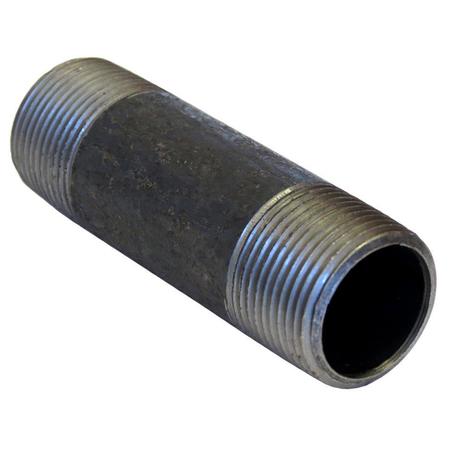

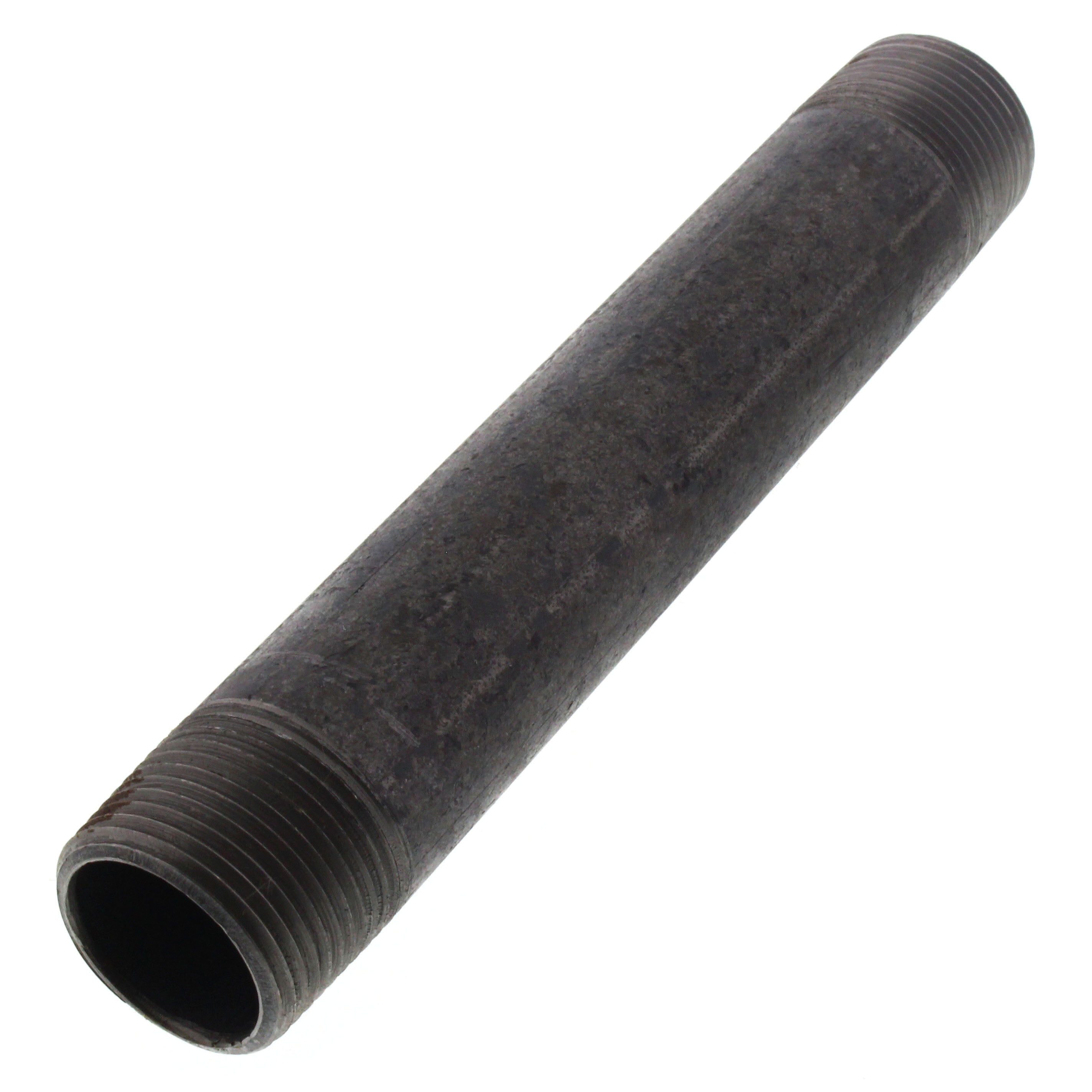

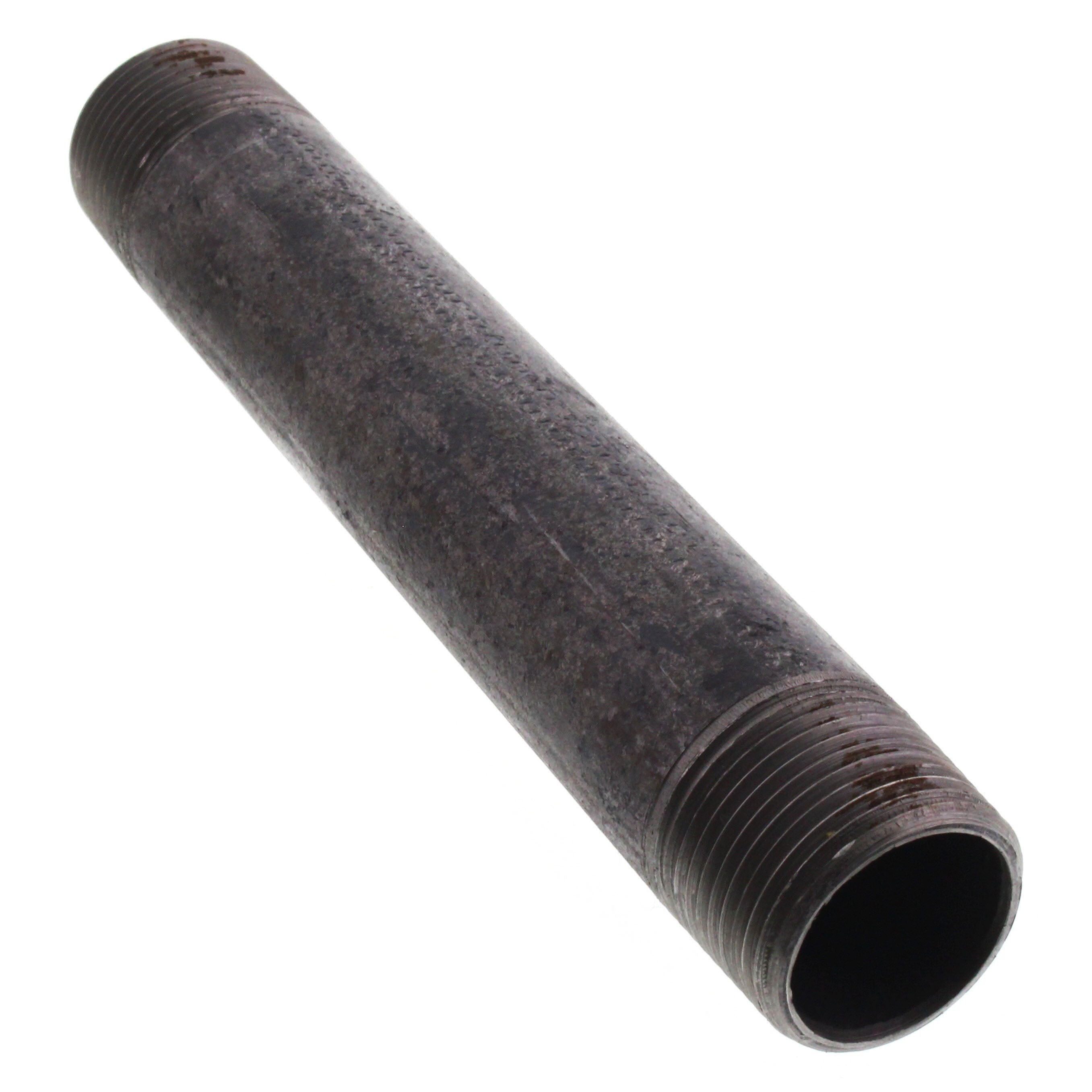

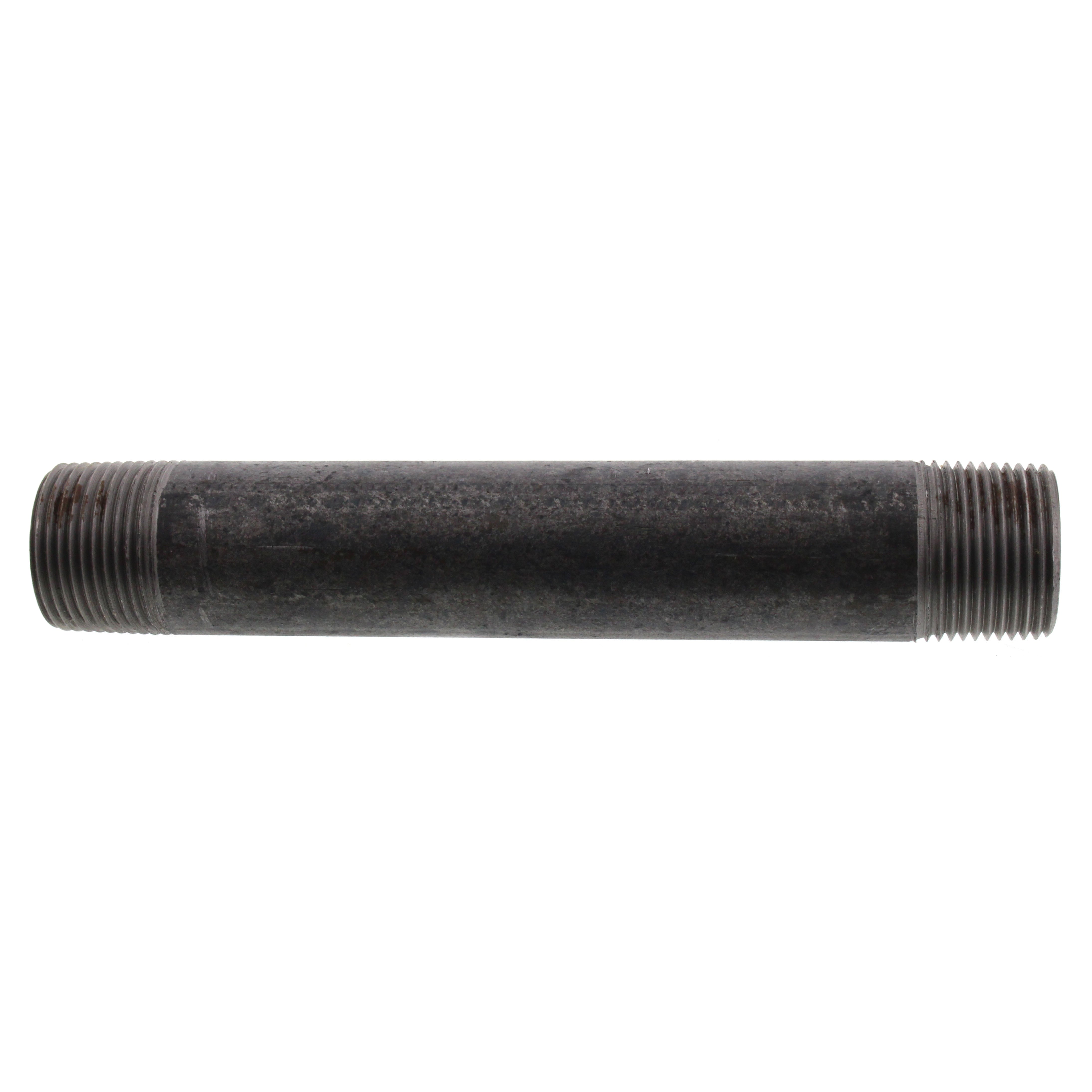

Anvil 0330026204 1X7-1/2 Std Blk Nipple

Product Description

The ANVIL 0330026204 1X7-1/2 STD BLK NIPPLE is a welded pipe nipple designed for schedule 40 applications. Constructed from steel with a threaded connection type, this black nipple is suitable for various plumbing and pipe fitting needs. It has a maximum operating pressure of 300 psi at 150°F.

• Made of steel material
• Features threaded connection type
• Designed for schedule 40 applications

Product Highlights

The ANVIL 0330026204 is a durable steel pipe nipple with threaded ends, ideal for connecting pipes in various applications.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0330026204
• Country of Origin: US

Technical Specifications

• MPN: 0330026204
• Brand: ANVIL
• Size: 1"
• Material: Steel
• Pipe Size: 1.315" (O.D)
• Application: Schedule 40
• Thread Type: Male
• Product Type: Black Nipple
• Connection Type: Threaded
• Length (Inches): 7-1/2"
• Item: Nipple
• Basic Pipe Fitting Material: Metal
• Basic Pipe Fitting Shape: Nipple
• Finish: Black
• Fitting Compatibility: Schedule 40
• Grade: Grade A
• Inside Dia.: 1 3/64"
• Length: 7 1/2"
• Max. Operating Pressure: 300 psi @ 150°F
• Max. Pressure: 300 psi at 150°F
• Max. Steam Pressure: 150 psi WSP at 360°F
• Maximum Steam Pressure: 150 psi @ 360°F
• Metal Detectable: Yes
• Metal Pipe Construction: Welded
• Nominal Pipe Size: 1"
• Nominal Size: 1"
• O.d.: 1 5/16"
• Overall Length: 7 1/2"
• Overall Pipe Length: 7 1/2"
• Pipe Connection Type: MNPT x MNPT
• Pipe Fitting Connection Type: MNPT x MNPT
• Pipe Fitting Material: Steel
• Pipe Fitting Schedule: Schedule 40
• Pipe Material: Steel
• Pipe Schedule: Schedule 40
• Pipe Weld Type: Continuous Weld
• Pressure Level: 100 psi to 299 psi
• Schedule: Schedule 40
• Schedule Rating: Schedule 40, STD
• Seamless/welded: Welded
• Side A Connection Type: Threaded
• Side A Gender: Male
• Side A Thread Type: NPT
• Side B Connection Type: Threaded
• Side B Gender: Male
• Side B Thread Type: NPT
• Specific Pipe Fitting Shape: Nipple
• Thread Configuration: Threaded on Both Ends
• Wall Thickness: 1/8"
