Anvil 0319907721 Hex Bushing 2 inches x 1-1/4 inches

Product Description

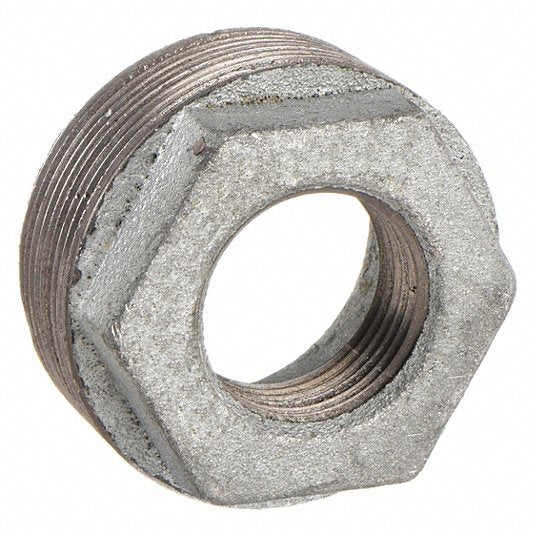

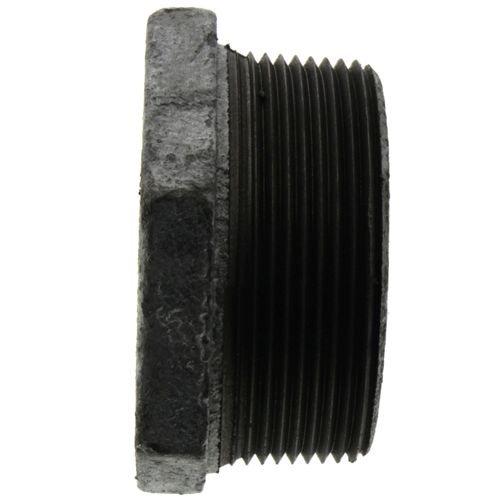

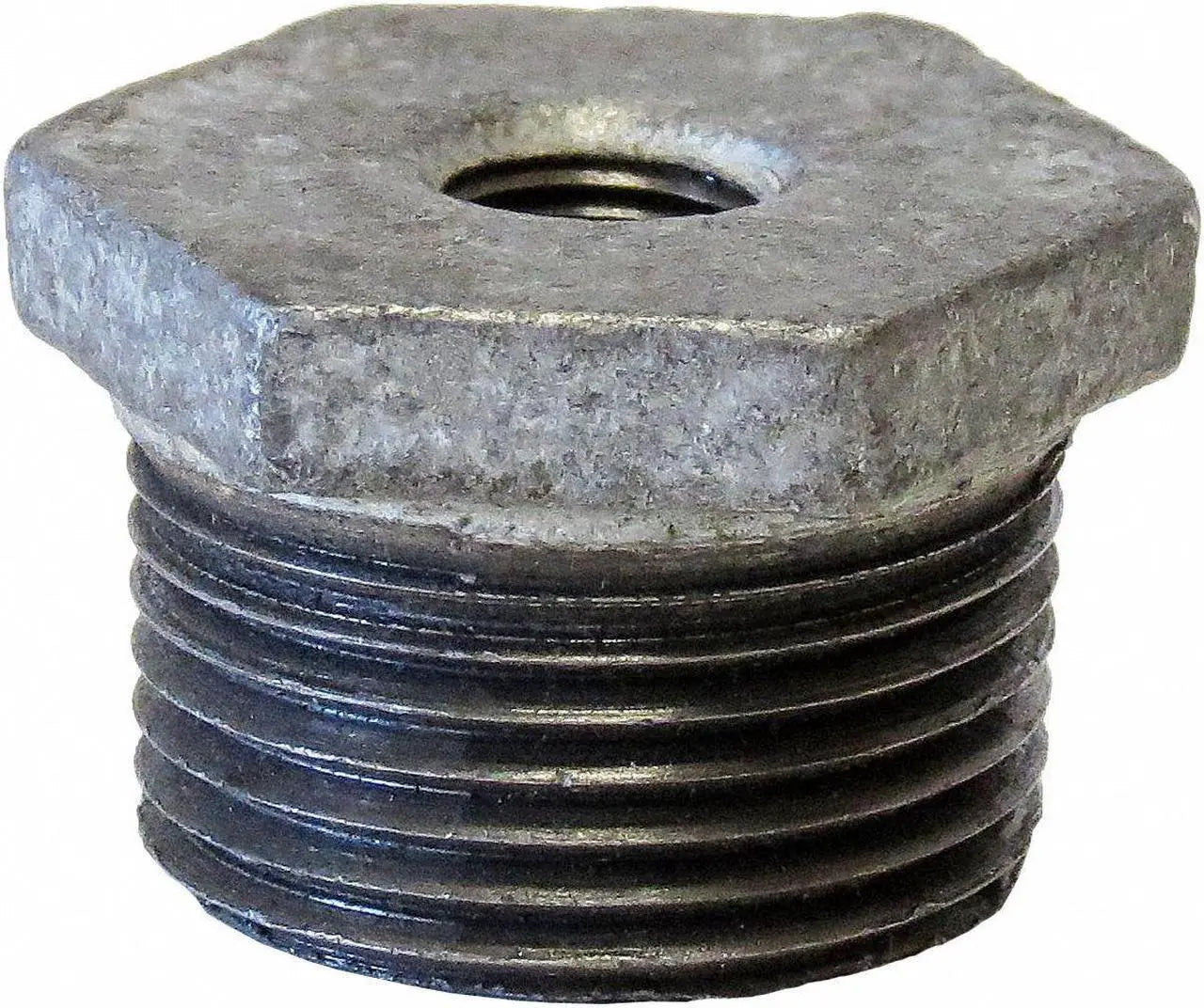

The ANVIL 0319907721 hex bushing is a galvanized fitting designed for connecting pipes of different sizes. This Class 150 bushing is made from cast iron and suitable for air, oil, and non-potable water applications. It features male NPT (MNPT) and female NPT (FNPT) threaded connections.

• Constructed from galvanized cast iron for durability.
• Features 2 in MNPT x 1-1/4 in FNPT connections.
• Suitable for use in air, oil, and non-potable water applications.

Product Highlights

The ANVIL hex bushing is ideal for creating secure connections between different sized pipes in plumbing and other applications.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0319907721
• Country of Origin: United States

Technical Specifications

• Item: Hex Bushing
• Class: Class 150
• Color: Silver
• Gender: Female, Male
• Pipe Size: 1 1/4 in, 2 in
• Standards: ASTM A-197, ASME 16.3
• Threading: NPT
• Application: Air, Oil, Non-Potable Water
• Temp. Range: -20 Degrees to 150 Degrees F
• Outside Dia.: 2-1/2"
• Fitting Shape: Bushing
• Includes Seal: No
• Max. Pressure: 1500 psi @ 150 Degrees F WOG
• Finish/Coating: Galvanized
• Connection Type: Threaded
• Fitting Pipe Size: 2 in x 1 1/4 in
• For Pipe Schedule: 40
• Fitting Side A Type: NPT
• Fitting Side B Type: NPT
• Pipe Fitting Gender: Male Female
• Pipe Size (Fittings): 2" x 1-1/4"
• Fitting Side A Gender: Male
• Fitting Side B Gender: Female
• Pipe Fitting Material: Galvanized Steel
• Specific Fitting Shape: Hex Bushing
• Fitting Connection Type: FNPT x MNPT
• Basic Pipe Fitting Shape: Bushing
• Pipe Size - Pipe Fitting: 2" x 1-1/4"
• Saturated Steam Pressure: 300 psi
• Maximum Operating Pressure: 175 psi @ 150 Degrees F
• Basic Pipe Fitting Material: Metal
• Specific Pipe Fitting Shape: Hex
• Fitting Side A Nominal Pipe Size: 2 in
• Fitting Side B Nominal Pipe Size: 1 1/4 in
• Includes Pre-Applied Thread Sealant: No
• Manufacturer Part Number: 0319907721
• UNSPSC: 40142314
• Nominal Size: 2 x 1-1/4 in
• Pressure Class: 150 Lb
• Series: FIG 383
• Temperature Rating: -20 to 150 deg F
• Type: Hex Head
