Anvil 0318913605 Hex Locknut 1-1/2 inches replacement mpn

Product Description

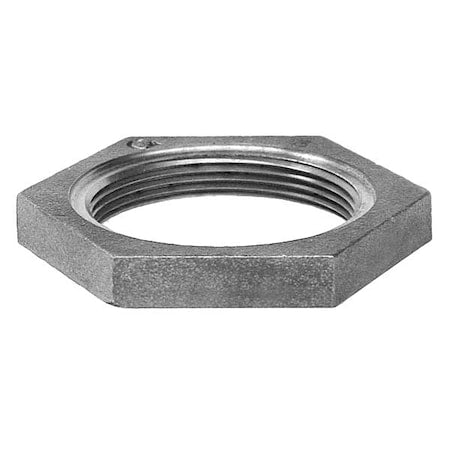

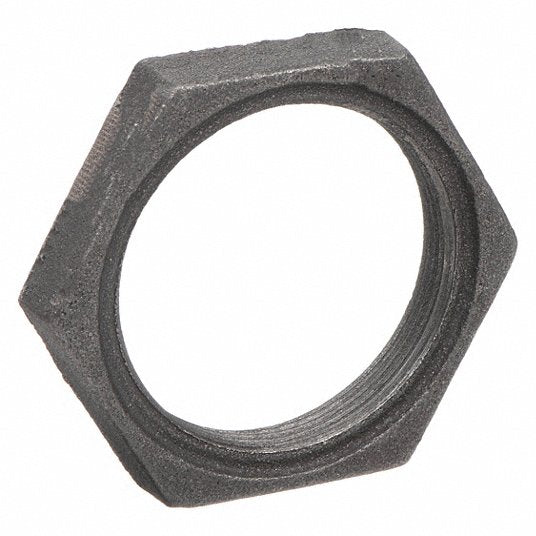

The ANVIL 0318913605 hex locknut is a malleable iron fitting with a 1-1/2" nominal pipe size and a Class 150 pressure rating. It is designed for use with pipe schedule 40 and is suitable for potable water applications. The locknut features a black anodized finish and female NPT threading.

• 1 1/2 in Nominal Pipe Size
• Class 150
• Certified For Use In Potable Water Applications in CA and VT

Product Highlights

Durable malleable iron construction, suitable for potable water, and conforms to ASME B16.3.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0318913605
• Country of Origin: United States

Technical Specifications

• Item: Hex Locknut
• Class: Class 150
• Color: Black
• Hex Size: 2-11/32"
• Pipe Size: 1 1/2"
• Standards: UL: FM Approved: ASME B16.3
• Threading: NPT
• Application: Potable Water
• Fitting Shape: Nut
• Finish/Coating: Black Anodized
• Overall Length: 1/2 in
• Connection Type: Threaded
• For Pipe Schedule: 40
• Nominal Pipe Size: 1 1/2 in
• Pipe Fitting Material: Malleable Iron
• Fitting Schedule/Class: Class 150
• Specific Fitting Shape: Hex Locknut
• Fitting Connection Type: FNPT
• Basic Pipe Fitting Shape: Nut
• Pipe Size - Pipe Fitting: 1-1/2"
• Basic Pipe Fitting Material: Metal
• Pipe Fitting Schedule/Class: Class 150
• Specific Pipe Fitting Shape: Hex Locknut
• Pipe Fitting Connection Type: FNPT
• Country of Origin: United States
• Model: 0318913605
• MPN: 0318913605
• NumberOfItems: 1
• Style: Hex Locknut
• Package Quantity: 1
• Type: Hex Locknut
• Weight: 0.2500
• Length: 3.000
• Width: 2.700
• Depth: 2.700
• Body Material: Malleable Iron
• Features: Locknut, 1 1/2 in Nominal Pipe Size, Class Class 150, Black Anodi
• Material of Construction: Black Malleable Iron
• Compliance: Certified For Use In Potable Water Applications in CA and VT
• Connection: NPT
• Fittings Sub-Category: Nuts
• Fitting Side 1: 1-1/2 in NPT Threaded
• Fitting Side 1 Thread Size: 1-1/2
• For Media Type: Potable Water
• UNSPSC: 31161716
• Fitting Type: Hex Locknut
• Fitting Size: 1-1/2"
• End Connections: Thread x Thread
• Liquid and Gas Pressure Rating (psi): 150
• UNSPSC Code: 40175303
• Domestic / Import: Domestic
• End Style: FNPT
• Finish: Black
• Pressure Class: 150 Lb
• Manufacturer: Anvil International
• Manufacturer #: 0318913605
• Pressure Rating: 300 psi
• Series: FIG 1134
• Temperature Rating: -20 to 150 deg F
• Thickness: 0.47 in
