Anvil 0318901410 Round Cap 2-1/2 inches

Product Description

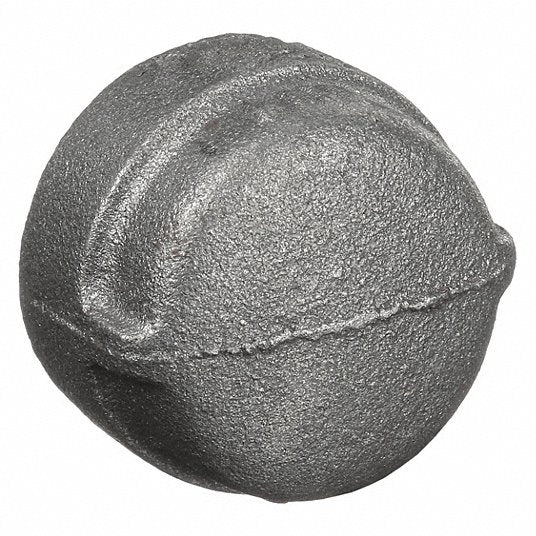

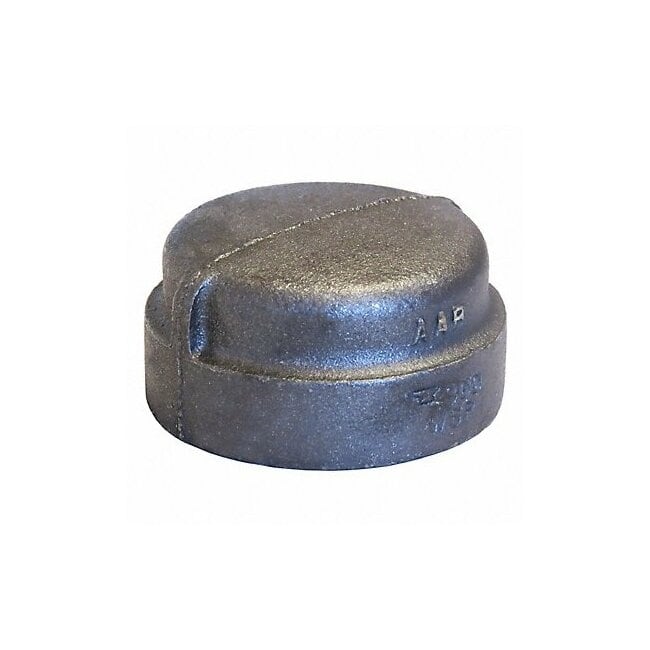

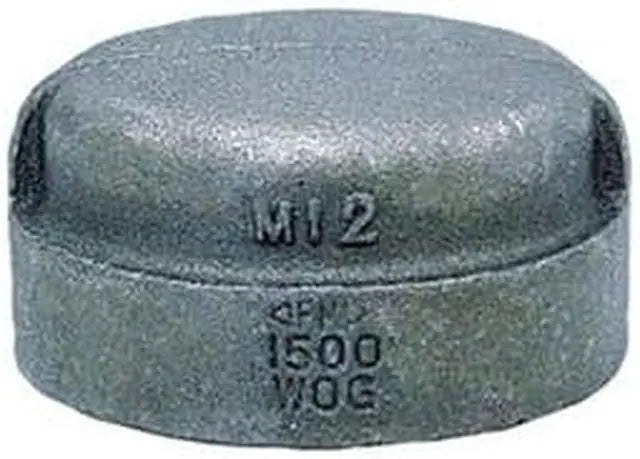

The ANVIL 0318901410 round cap is designed for connecting with medium- to high-pressure pipe. Constructed from malleable iron, this cap fits a 2-1/2" fitting pipe size and features a female NPT connection. It withstands a maximum operating pressure of 2,000 psi at 150°F and a max steam pressure of 300 psi at 550° F.

• Made of malleable iron
• Features a 2-1/2" fitting pipe size
• Offers female NPT connection

Product Highlights

Durable malleable iron construction ensures longevity and reliability in demanding applications. Suitable for plumbing, mechanical, HVAC, industrial, fire protection, mining, oil, and gas applications.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0318901410
• Country of Origin: USA

Technical Specifications

• Specific Fitting Shape: Cap
• Cap: Cap
• Pipe Fitting Material: Malleable Iron
• Nominal Pipe Size: 2-1/2 in
• Class: 3000
• Temp. Range: -20° to 550° F
• Standards: ASME B16.3
• Basic Fitting Shape: Cap
• Fitting Connection Type: Female NPT
• Includes Pre-Applied Thread Sealant: No
• Includes Seal: No
• Plug Construction: Solid
• Manufacturer Part Number: 0318901410
• Max. Steam Pressure: 300 psi @ 550 ° F
• Maximum Operating Pressure: 2,000 psi @ 150° F
• Brand: ANVIL
• Model: 0318901410
• MPN: 0318901410
• Type: Black Pipe Fittings
• UPC: 690291034886
• Country of Origin: China
• Pipe Size (Fittings): 2-1/2"
• Pipe Size - Pipe Fitting: 2-1/2 in
• Item: Cap
• Fitting Schedule/Class: Class 300
• Pipe Fitting Schedule/Class: Class 300
• Saturated Steam Pressure: 300 psi @ 550 Degrees F
• Basic Pipe Fitting Shape: Cap
• Specific Pipe Fitting Shape: Cap
• MATERIAL: MALLEABLE IRON MATERIAL
• FINISH: BLACK FINISH
• SCHEDULE: EXTRA HEAVY SCHEDULE
• APPLICABLE STANDARD: ASME B1.20.1/B16.3, ANSI/NSF 61, UL (CANADA AND US), FM
• APPLICATION: PLUMBING, MECHANICAL, HVAC, INDUSTRIAL, FIRE PROTECTION, MINING, OIL AND GAS
• TEMPERATURE RATING: 550 DEG F
• MATERIAL SPECIFICATION: ASTM A197
• PRESSURE RATING: CLASS 300, 1000 PSI
• END CONNECTION: FEMALE THREADED
• APPROXIMATE WEIGHT: 3.32 LB
• STANDARDS AND SPECIFICATION: ASME B16.3 DIMENSION, ASME B.1.20.1 THREAD
• OVERALL LENGTH: 2-1/16 INCH
• CPS COMM CODE: BLK_MI_AAR_CAP
