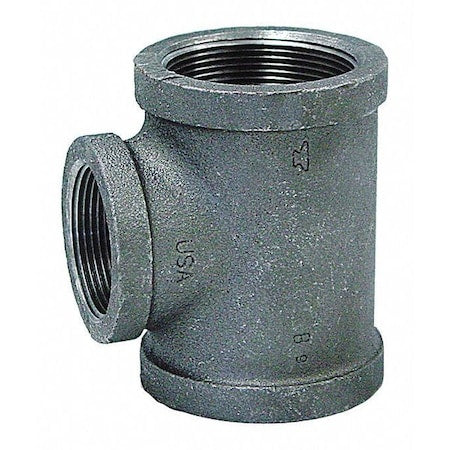

Anvil 0311055602 Reducing Tee 3 inches x 2-1/2 inches x 2-1/2 inches FNPT

Product Description

The ANVIL 0311055602 reducing tee is made of galvanized malleable iron and designed for pipe schedule 40. This class 150 tee fitting has female NPT connections on all ends. It is suitable for air, non-potable water, and oil applications with a maximum operating pressure of 300 psi at 150 degrees F.

• Constructed from galvanized malleable iron
• Features female NPT connections on all ends
• Suitable for air, non-potable water, and oil applications

Product Highlights

The ANVIL reducing tee is ideal for connecting different pipe sizes in various plumbing and piping systems.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0311055602
• Country of Origin: United States

Technical Specifications

• Item: Reducing Tee
• Class: Class 150
• Gender: Female
• Pipe Size: 3" x 2-1/2" x 2-1/2"
• Standards: ASTM A-197, FM Approved, Meets ASME B16.3, UL Listed
• Threading: NPT
• Application: Air, Non-Potable Water, Oil
• Temp. Range: -20 Degrees to 350 Degrees F
• Fitting Shape: Tee
• Includes Seal: No
• Max. Pressure: 300 psi @ 150 Degrees F WOG
• Finish/Coating: Galvanized
• Pressure Level: Medium Pressure (300-999 psi)
• Connection Type: Threaded
• For Pipe Schedule: 40
• Fitting Side A Type: NPT
• Fitting Side B Type: NPT
• Fitting Side C Type: NPT
• Pipe Fitting Gender: Female Female Female
• Fitting Side A Gender: Female
• Fitting Side B Gender: Female
• Fitting Side C Gender: Female
• Pipe Fitting Material: Galvanized Malleable Iron
• Fitting Schedule/Class: Class 150
• Specific Fitting Shape: Reducing Tee
• Fitting Connection Type: FNPT
• Basic Pipe Fitting Shape: Tee
• Pipe Size - Pipe Fitting: 3" x 2-1/2" x 2-1/2"
• Saturated Steam Pressure: 150 psi @ 350 Degrees F
• Maximum Operating Pressure: 300 psi @ 150 Degrees F
• Basic Pipe Fitting Material: Metal
• Pipe Fitting Schedule/Class: Class 150
• Specific Pipe Fitting Shape: Reducing Tee
• Pipe Fitting Connection Type: FNPT
• Fitting Side A Nominal Pipe Size: 3 in
• Fitting Side B Nominal Pipe Size: 2 1/2 in
• Fitting Side C Nominal Pipe Size: 2 1/2 in
• Includes Pre-Applied Thread Sealant: No
• End Style: FNPT
• Finish: Galvanized
• Fitting / Connector Type: Tee
• Material: Malleable Iron
• Nominal Size: 3 x 2-1/2 x 2-1/2 in
• Pressure Class: 150 Lb
• Manufacturer: Anvil International
• Manufacturer #: 0311055602
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 1105R
• Temperature Rating: -20 to 150 deg F
• Type: Standard
• Mfg. Model: 3110555602
• Body Material: Malleable Iron
• Color: Silver
