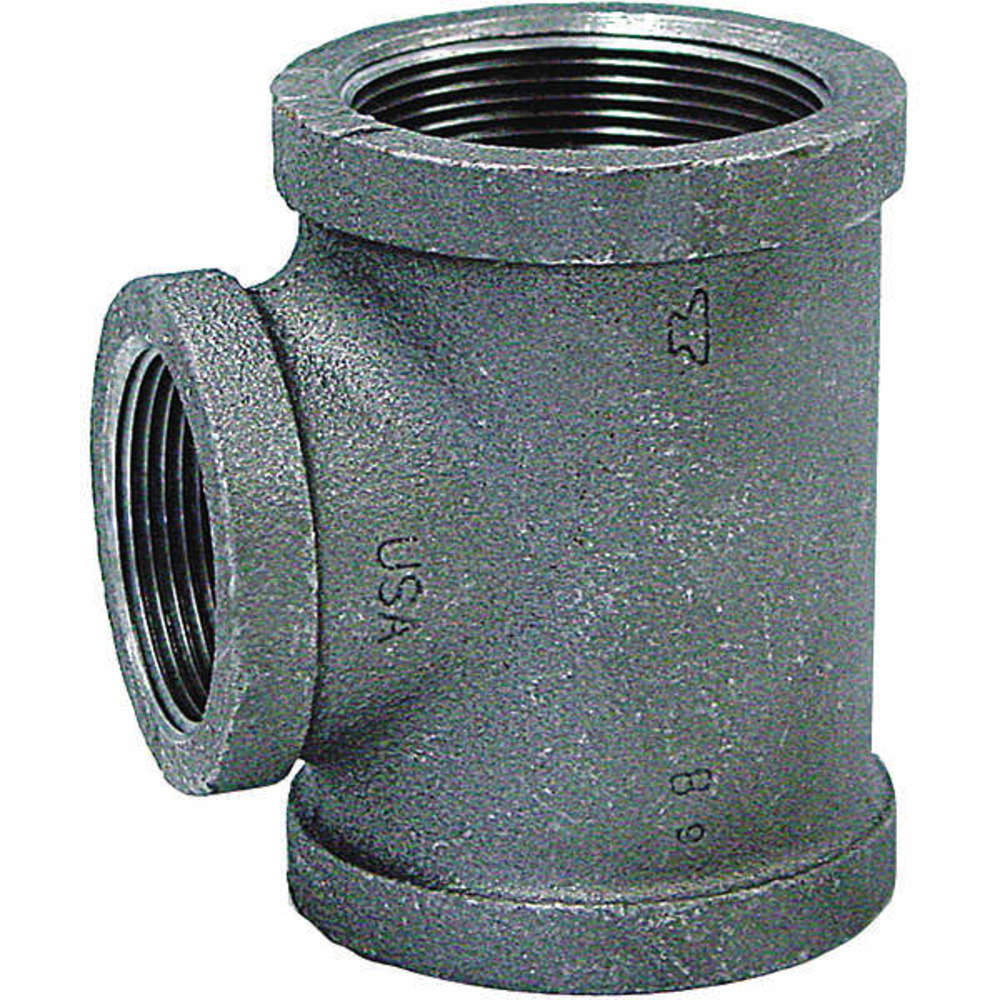

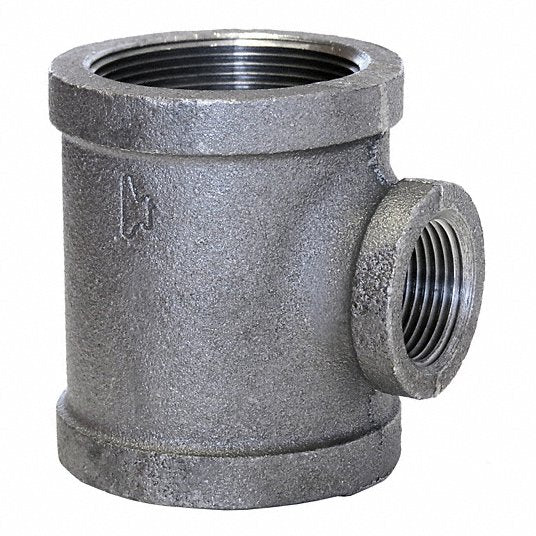

Anvil 0311045009 Reducing Tee 1 inches x 1 inches x 1-1/4 inches

Product Description

The ANVIL 0311045009 reducing tee is made from galvanized malleable iron and is suitable for connecting pipes of different sizes. It is designed for use in air, non-potable water, and oil applications. This class 150 reducing tee has a maximum operating pressure of 300 psi at 150 Degrees F.

• Constructed from galvanized malleable iron
• Suitable for air, non-potable water, and oil applications
• Maximum operating pressure of 300 psi at 150 Degrees F

Product Highlights

This reducing tee is ideal for plumbing, HVAC, industrial, fire protection, mining, oil, and gas applications.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0311045009
• Country of Origin: United States

Technical Specifications

• Item: Reducing Tee
• Class: Class 150
• Color: Silver
• Gender: Female
• Pipe Size: 1 in, 1 1/4 in
• Standards: ASTM A-197, FM Approved, Meets ASME B16.3, UL Listed
• Threading: NPT
• Application: Air, Non-Potable Water, Oil
• Temp. Range: -20 Degrees to 350 Degrees F
• Fitting Shape: Tee (run x run x branch)
• Includes Seal: No
• Max. Pressure: 300 psi @ 150 Degrees F WOG
• Finish/Coating: Galvanized
• Pressure Level: Medium Pressure (300-999 psi)
• Connection Type: Threaded
• Fitting Pipe Size: 1 in x 1 in x 1 1/4 in
• For Pipe Schedule: 40
• Fitting Side A Type: NPT
• Fitting Side B Type: NPT
• Fitting Side C Type: NPT
• Pipe Fitting Gender: Female Female Female
• Pipe Size (Fittings): 1" x 1" x 1-1/4"
• Fitting Side A Gender: Female
• Fitting Side B Gender: Female
• Fitting Side C Gender: Female
• Pipe Fitting Material: Galvanized Malleable Iron
• Fitting Schedule/Class: Class 150
• Specific Fitting Shape: Reducing Tee
• Fitting Connection Type: FNPT
• Basic Pipe Fitting Shape: Tee
• Pipe Size - Pipe Fitting: 1" x 1" x 1-1/4"
• Saturated Steam Pressure: 150 psi @ 350 Degrees F
• Maximum Operating Pressure: 300 psi @ 150 Degrees F
• Basic Pipe Fitting Material: Metal
• Pipe Fitting Schedule/Class: Class 150
• Specific Pipe Fitting Shape: Reducing Tee
• Pipe Fitting Connection Type: FNPT
• Fitting Side A Nominal Pipe Size: 1 in
• Fitting Side B Nominal Pipe Size: 1 in
• Fitting Side C Nominal Pipe Size: 1 1/4 in
• Includes Pre-Applied Thread Sealant: No
• Material: Galvanized A197 Malleable Iron
• Connector Type: Reducer
• Flow Rating: Pressure
• Fitting Side 1: Female 1 in NPT Threaded
• Fitting Side 2: Female 1 in NPT Threaded
• Fitting Side 3: Female 1-1/4 in NPT Threaded
• Overall Length: 1 in
• For Media Type: Air; Oils
• Body Material: Malleable Iron
• Finish: Galvanized
• Fitting/Connector Type: Tee
• Nominal Size: 1 x 1 x 1-1/4 in
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 1105R
• Temperature Rating: -20 to 150 deg F
• Type: Standard
• Domestic/Import: Domestic
