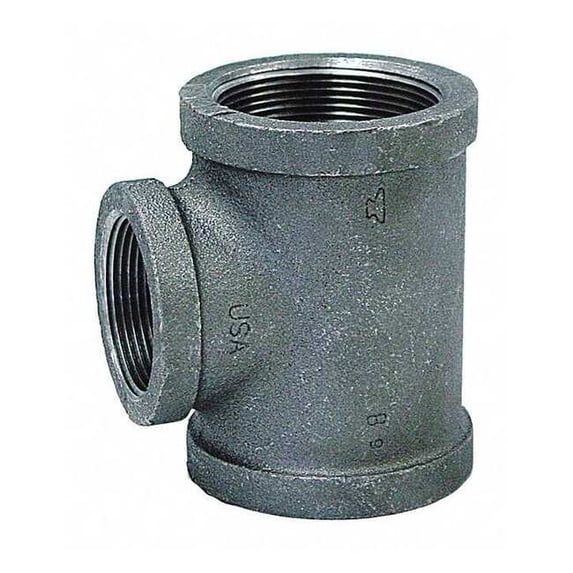

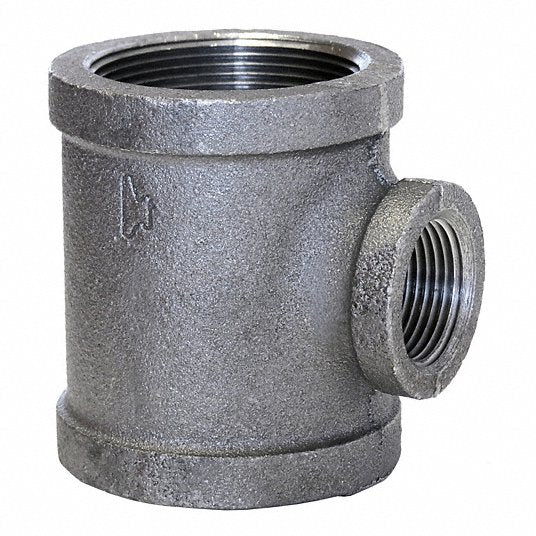

Anvil 0311037808 1/2 inches x 1/4 inches x 1/2 inches Fnpt Galvanized Reducing Tee

Product Description

The Anvil 0311037808 is a 1/2" x 1/4" x 1/2" FNPT galvanized reducing tee. Constructed from malleable iron, this Class 150 fitting is designed for pipe schedule 40. It withstands a maximum operating pressure of 300 psi at 150 Degrees F and is suitable for air, oil, and non-potable water applications.

• Constructed from galvanized malleable iron
• Meets ASME B16.3 standards
• Maximum pressure of 300 psi @ 150 Degrees F WOG

Product Highlights

This reducing tee is ideal for connecting pipes of different sizes in various plumbing and piping systems.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0311037808
• Country of Origin: United States

Technical Specifications

• MPN: 0311037808
• Brand: Anvil
• Class: Class 150
• Gender: Female
• Pipe Size: 1/2 in, 1/4 in
• Standards: ASTM A-197, FM Approved, Meets ASME B16.3, UL Listed
• Threading: NPT
• Application: Air, Oil, Non-Potable Water
• Temp. Range: -20 Degrees to 350 Degrees F
• Fitting Shape: Tee
• Includes Seal: No
• Max. Pressure: 300 psi @ 150 Degrees F WOG
• Finish/Coating: Galvanized
• Pressure Level: Medium Pressure (300-999 psi)
• Connection Type: Threaded
• Fitting Pipe Size: 1/2 in x 1/4 in x 1/2 in
• For Pipe Schedule: 40
• Fitting Side A Type: NPT
• Fitting Side B Type: NPT
• Fitting Side C Type: NPT
• Pipe Fitting Gender: Female Female Female
• Pipe Size (Fittings): 1/2" x 1/4" x 1/2"
• Fitting Side A Gender: Female
• Fitting Side B Gender: Female
• Fitting Side C Gender: Female
• Pipe Fitting Material: Galvanized Malleable Iron
• Fitting Schedule/Class: Class 150
• Specific Fitting Shape: Reducing Tee
• Fitting Connection Type: FNPT
• Basic Pipe Fitting Shape: Tee
• Pipe Size - Pipe Fitting: 1/2 in x 1/4 in x 1/2 in
• Saturated Steam Pressure: 150 psi @ 350 Degrees F
• Maximum Operating Pressure: 300 psi @ 150 Degrees F
• Basic Pipe Fitting Material: Metal
• Pipe Fitting Schedule/Class: Class 150
• Specific Pipe Fitting Shape: Reducing Tee
• Pipe Fitting Connection Type: FNPT
• Fitting Side A Nominal Pipe Size: 1/2 in
• Fitting Side B Nominal Pipe Size: 1/4 in
• Fitting Side C Nominal Pipe Size: 1/2 in
• Includes Pre-Applied Thread Sealant: No
• Country of Origin (subject to change): United States
• Item: Reducing Tee
• Domestic / Import: Domestic
• End Style: FNPT
• Material: Malleable Iron
• Nominal Size: 1/2 x 1/4 x 1/2 in
• Pressure Class: 150 Lb
• Manufacturer: Anvil International
• Manufacturer #: 0311037808
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 1105R
• Temperature Rating: -20 to 150 deg F
• Temperature Range: -20 Degrees to 350 Degrees F
• GTIN: 0690291029332
• UPC: 0690291029332
