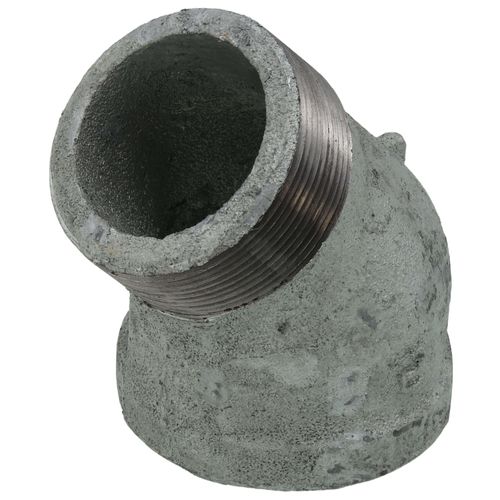

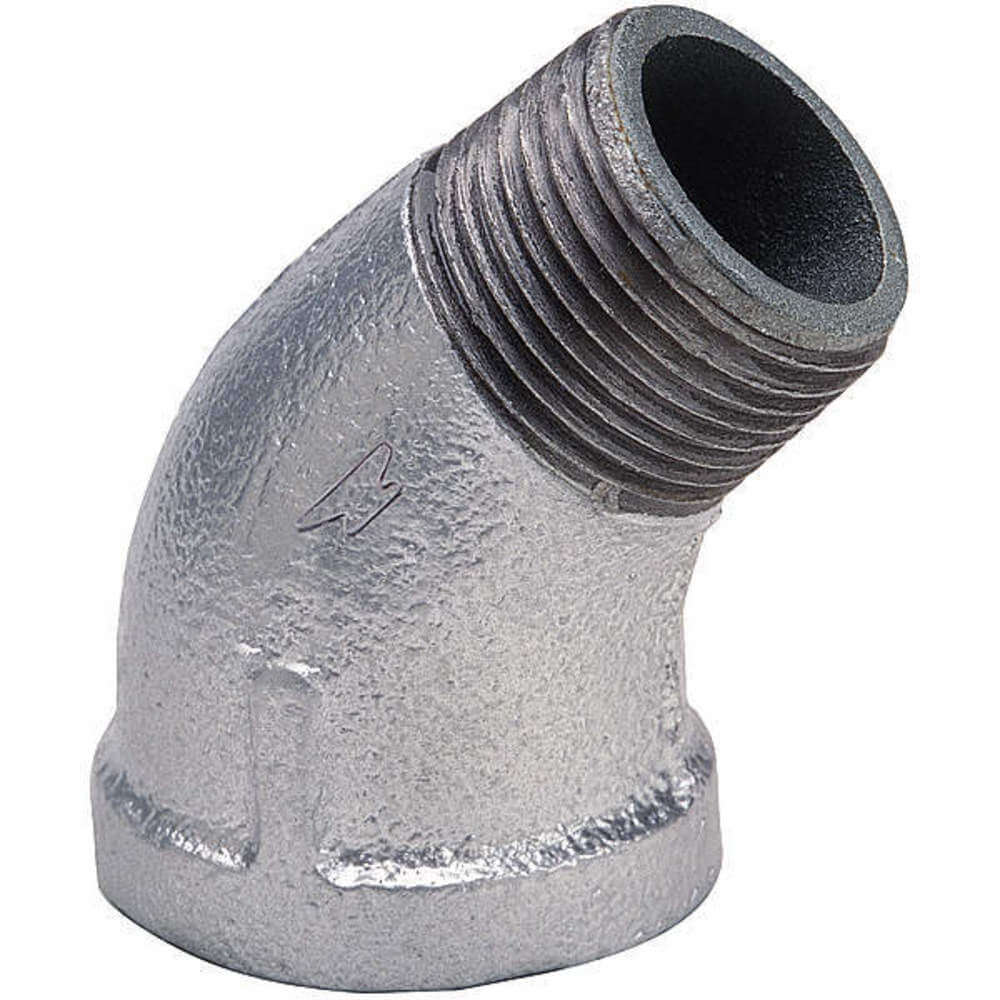

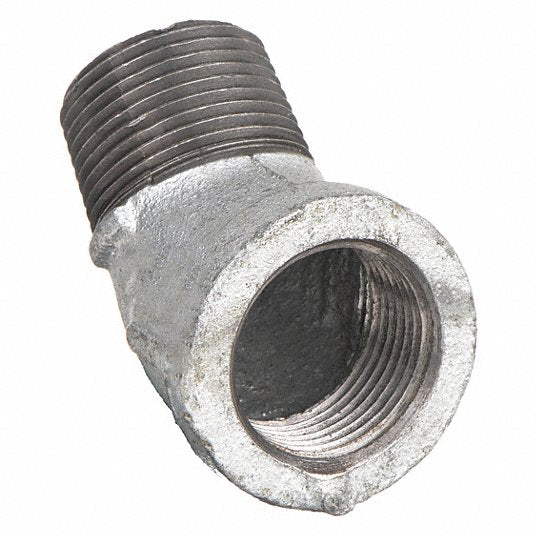

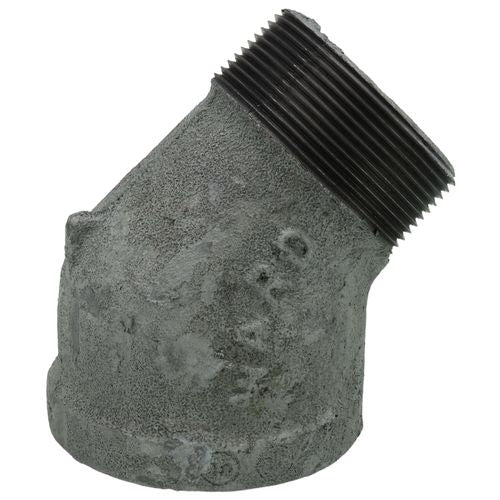

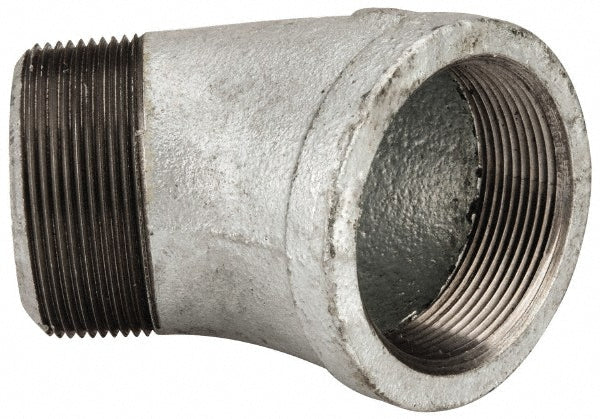

Anvil 0311028203 Street Elbow 45 Deg 2 in FNPT x MNPT

Brand: ANVIL
SKU: 0311028203
Availability: In Stock

Ships same day if ordered by 12 pm
$85.20
$85.20
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The ANVIL 0311028203 street elbow is a galvanized malleable iron fitting with a 45-degree angle. Designed for pipe schedule 40, it features a 2-inch female NPT and a 2-inch male NPT connection. It is suitable for low-pressure plumbing applications, including air, water, natural gas, and steam.

  • Made of galvanized malleable iron
  • Features 2 in female NPT and 2 in male NPT connections
  • Maximum operating pressure of 300 psi @ 150 Degrees F

Product Highlights

This galvanized street elbow resists rust and corrosion and is ideal for plumbing applications.

Product Information

Standard Information

  • Brand: ANVIL
  • Manufacturer Part Number: 0311028203
  • Country of Origin: United States
Technical Specifications
Item [Specifications]
45 Degree Street Elbow
Class [Specifications]
Class 150
Gender [Specifications]
Female, Male
Pipe Size [Specifications]
2 in
Standards [Specifications]
ASTM A197, FM Approved, Meets ASME B16.3, UL Listed
Threading [Specifications]
NPT
Application [Specifications]
Air, Oil, Non-Potable Water
Temp. Range [Specifications]
-20 Degrees to 350 Degrees F
Fitting Shape [Specifications]
Elbow
Includes Seal [Specifications]
No
Max. Pressure [Specifications]
300 psi @ 150 Degrees F WOG
Finish/Coating [Specifications]
Galvanized
Pressure Level [Specifications]
Medium Pressure (300-999 psi)
Connection Type [Specifications]
Threaded
Fitting Pipe Size [Specifications]
2 in x 2 in
For Pipe Schedule [Specifications]
40
Fitting Side A Type [Specifications]
NPT
Fitting Side B Type [Specifications]
NPT
Pipe Fitting Gender [Specifications]
Female Male
Pipe Size (Fittings) [Specifications]
2"
Fitting Side A Gender [Specifications]
Female
Fitting Side B Gender [Specifications]
Male
Pipe Fitting Material [Specifications]
Galvanized Malleable Iron
Fitting Schedule/Class [Specifications]
Class 150
Specific Fitting Shape [Specifications]
45 Degree Street Elbow
Fitting Connection Type [Specifications]
FNPT x MNPT
Basic Pipe Fitting Shape [Specifications]
Elbow
Pipe Size - Pipe Fitting [Specifications]
2"
Saturated Steam Pressure [Specifications]
150 psi @ 350 Degrees F
Maximum Operating Pressure [Specifications]
300 psi @ 150 Degrees F
Basic Pipe Fitting Material [Specifications]
Metal
Pipe Fitting Schedule/Class [Specifications]
Class 150
Specific Pipe Fitting Shape [Specifications]
45 Degrees Street Elbow
Pipe Fitting Connection Type [Specifications]
FNPT x MNPT
Fitting Side A Nominal Pipe Size [Specifications]
2 in
Fitting Side B Nominal Pipe Size [Specifications]
2 in
Includes Pre-Applied Thread Sealant [Specifications]
No
Size
2"
Application
Air, Non-Potable Water, Oil
Material
Galvanized Malleable Iron
Thread Type
Female, Male
Fitting Shape
45
