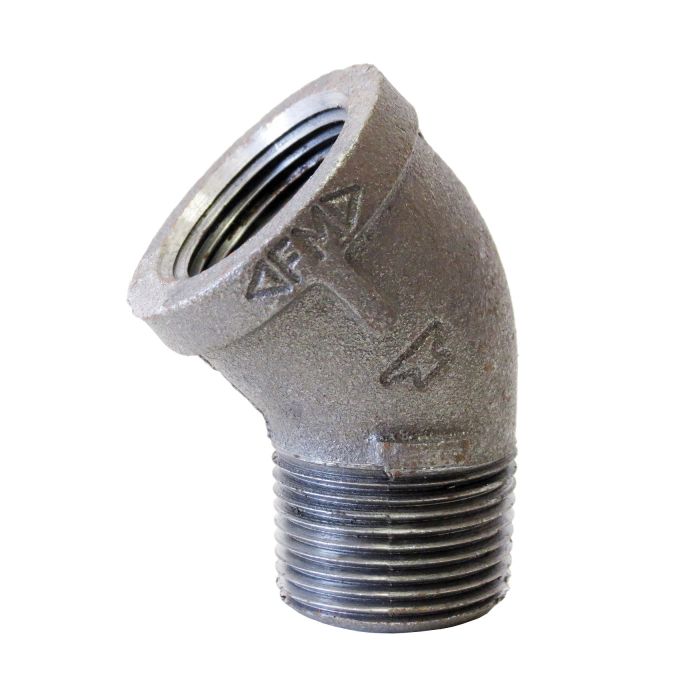

Anvil 0311027809 FIG 1104 45 deg Street Elbow, 1-1/4 in, FNPTxMNPT, 150 lb, Malleable Iron, Galvanized, Domestic

Product Description

The Anvil 0311027809 is a FIG 1104 45 degree street elbow fitting designed for connecting two different pipe ends. This fitting has a one and one-quarter inch nominal size and is crafted from malleable iron with a galvanized finish. It is rated for a pressure class of 150 pounds and a maximum pressure of three hundred psi. This product is suitable for various piping applications, providing reliable connections for both gas and liquid movement.

• Material: Malleable iron.
• End Style: MNPT x FNPT.
• Temperature Range: -20 to 150 degrees Fahrenheit.

Product Highlights

This street elbow fitting helps in directing pipe connections at a 45-degree angle, making it essential for installations where space is limited.

Product Information

Standard Information

• Manufacturer: ASC Engineered Solutions
• Domestic/Import: Domestic

Technical Specifications

• Nominal Size: 1-1/4 inches
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 1104
• Finish: Galvanized
• Fitting/Connector Type: 45 degree elbow
• Temperature Rating: -20 to 150 degrees Fahrenheit
