ANVIL 0311024004 FIG 1102 Standard 45 deg Pipe Elbow 1-1/4 in FNPT 150 lb

Product Description

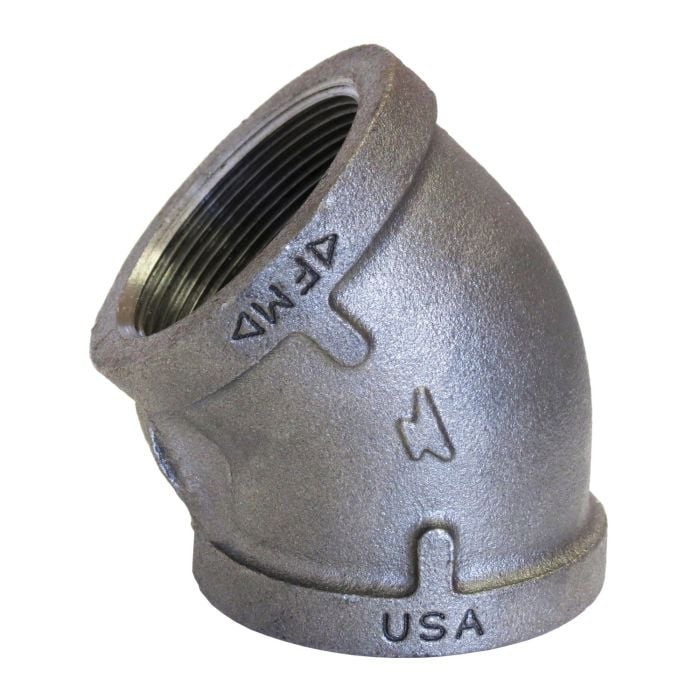

The Anvil 0311024004 is a standard 45 degree pipe elbow designed for use with 1-1/4 inch nominal pipe. It is made from malleable iron and features a galvanized finish for durability. This fitting is suitable for connecting two sections of pipe and directing the flow of liquids or gases. The elbow has a FNPT end style and is rated for a pressure class of 150 lb and a pressure rating of 300 psi. It operates effectively in temperatures ranging from -20 to 150 degrees Fahrenheit.

• Malleable iron construction for strength
• Galvanized finish for corrosion resistance
• Pressure rated for reliable performance

Product Highlights

This elbow fitting is ideal for plumbing and piping applications where space is limited and a change in direction is required.

Product Information

Standard Information

• Manufacturer: ASC Engineered Solutions
• Domestic/Import: Domestic

Technical Specifications

• Nominal Size: 1-1/4 in
• Material: Malleable Iron
• Finish: Galvanized
• Fitting/Connector Type: 45 deg Elbow
• End Style: FNPT
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Temperature Rating: -20 to 150 degrees F
• Series: FIG 1102
