Product Description

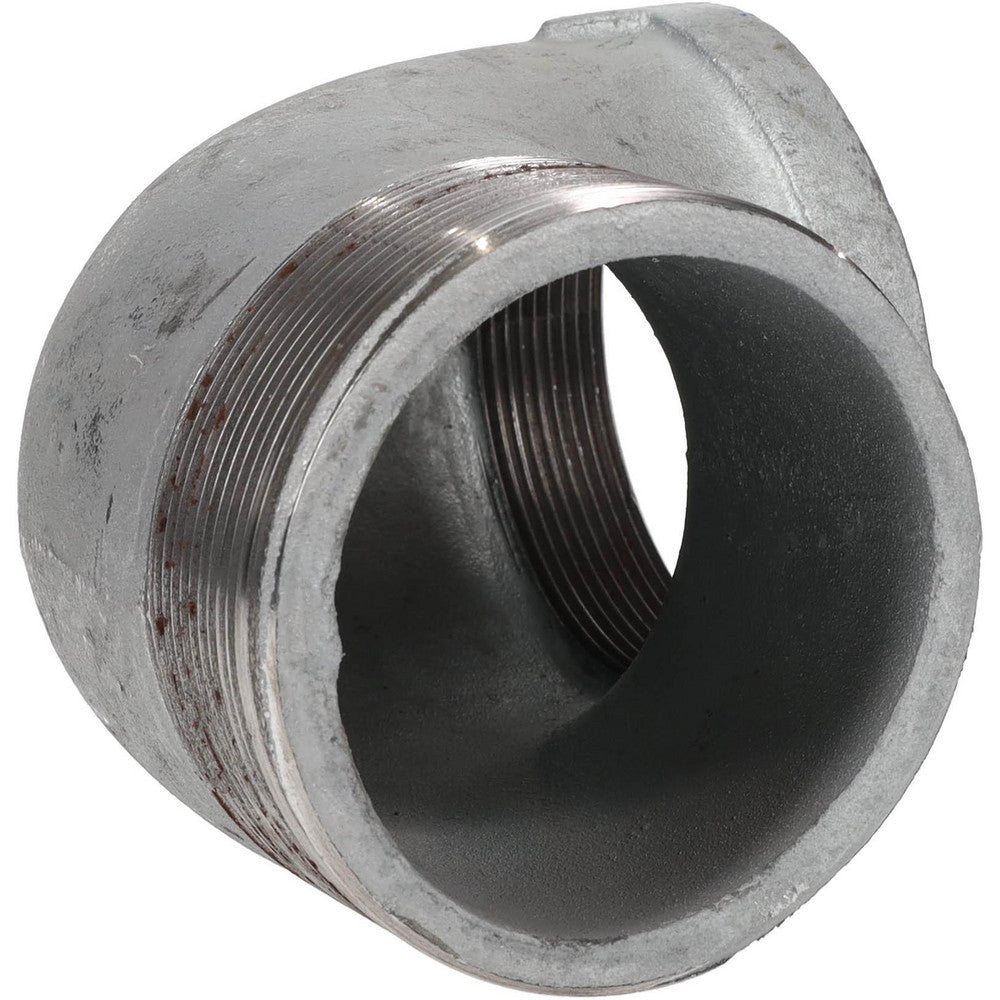

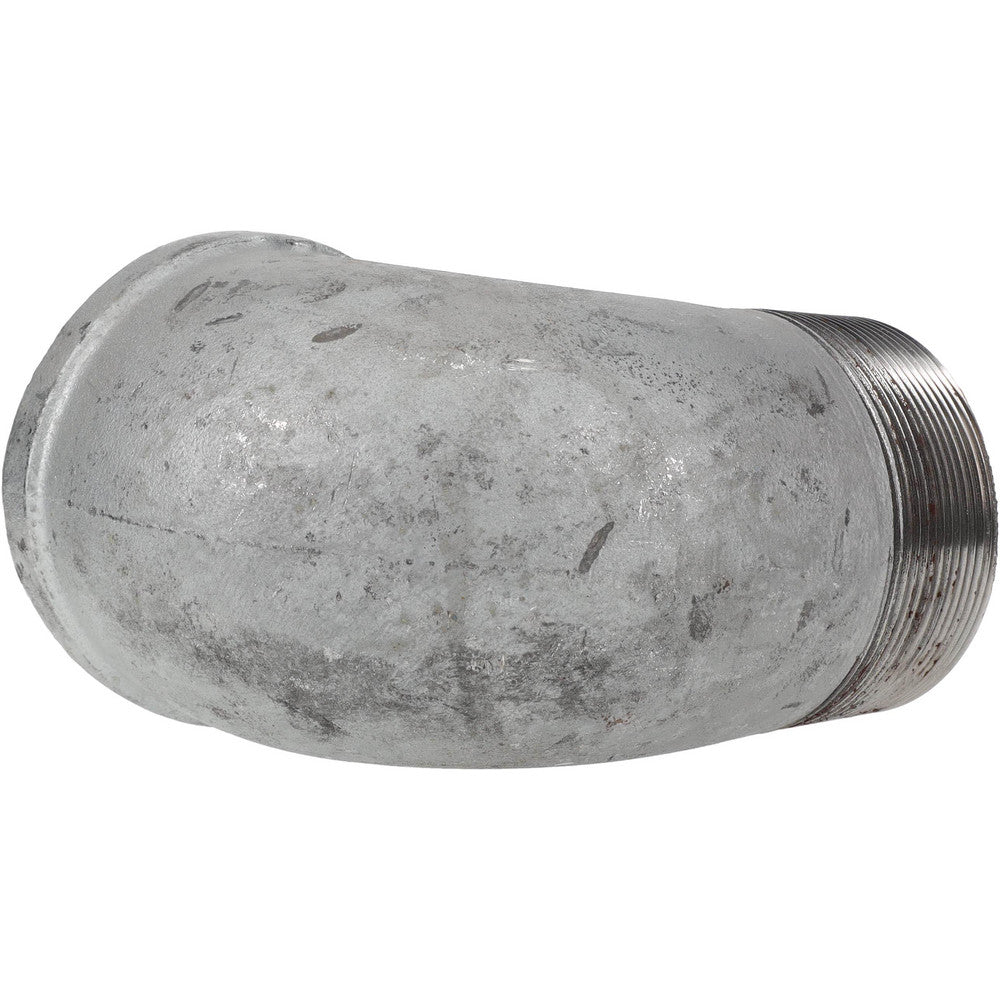

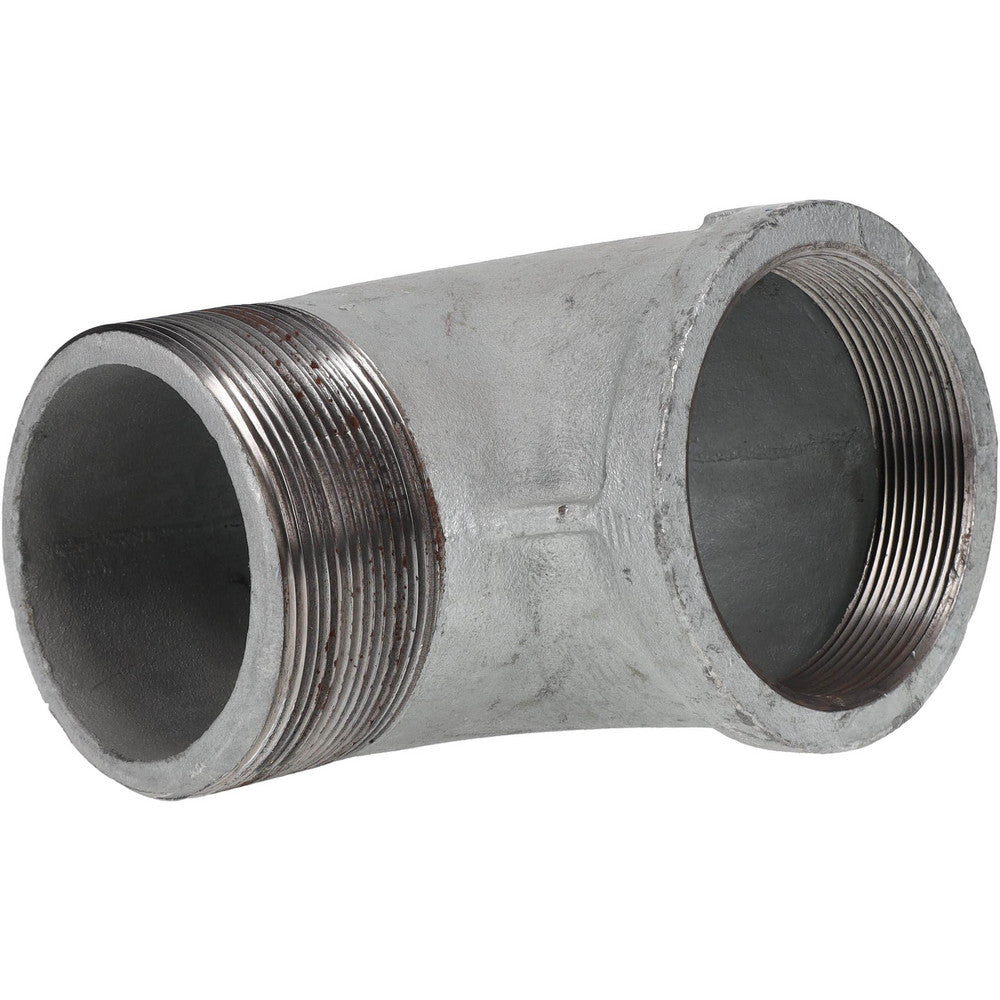

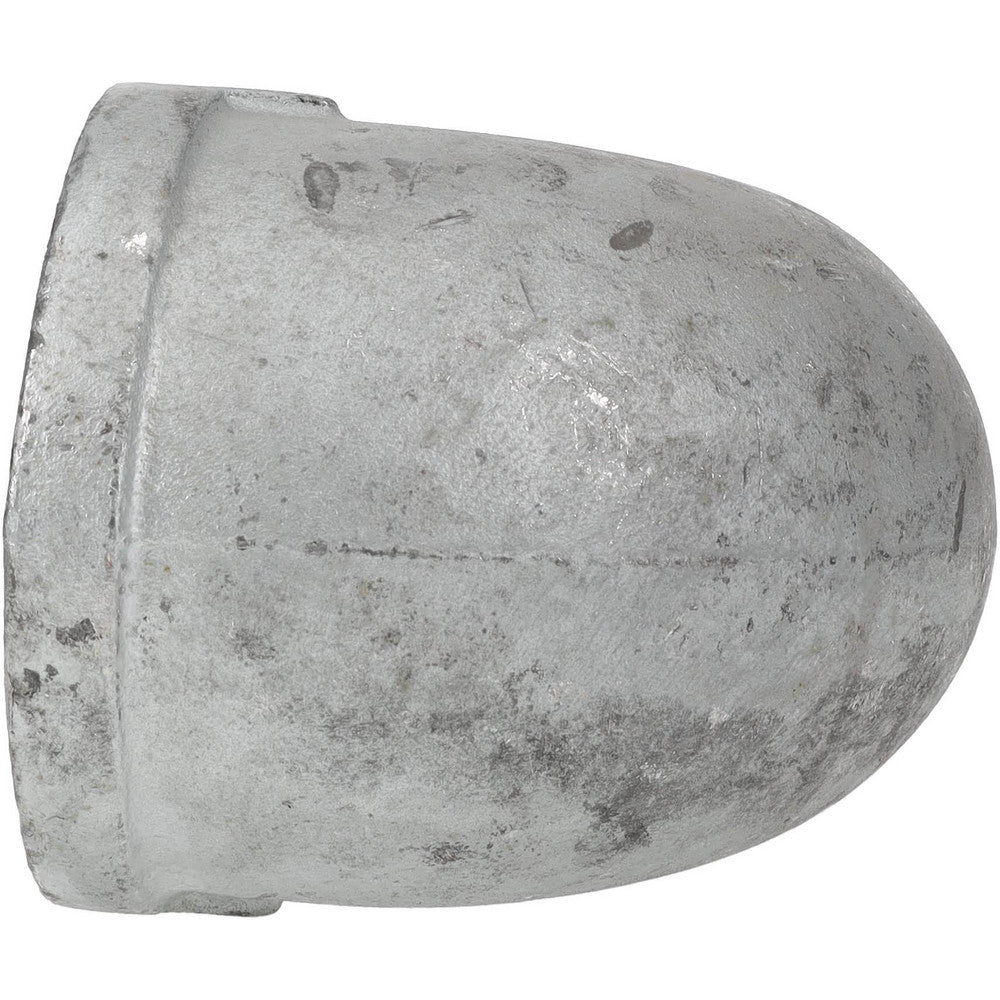

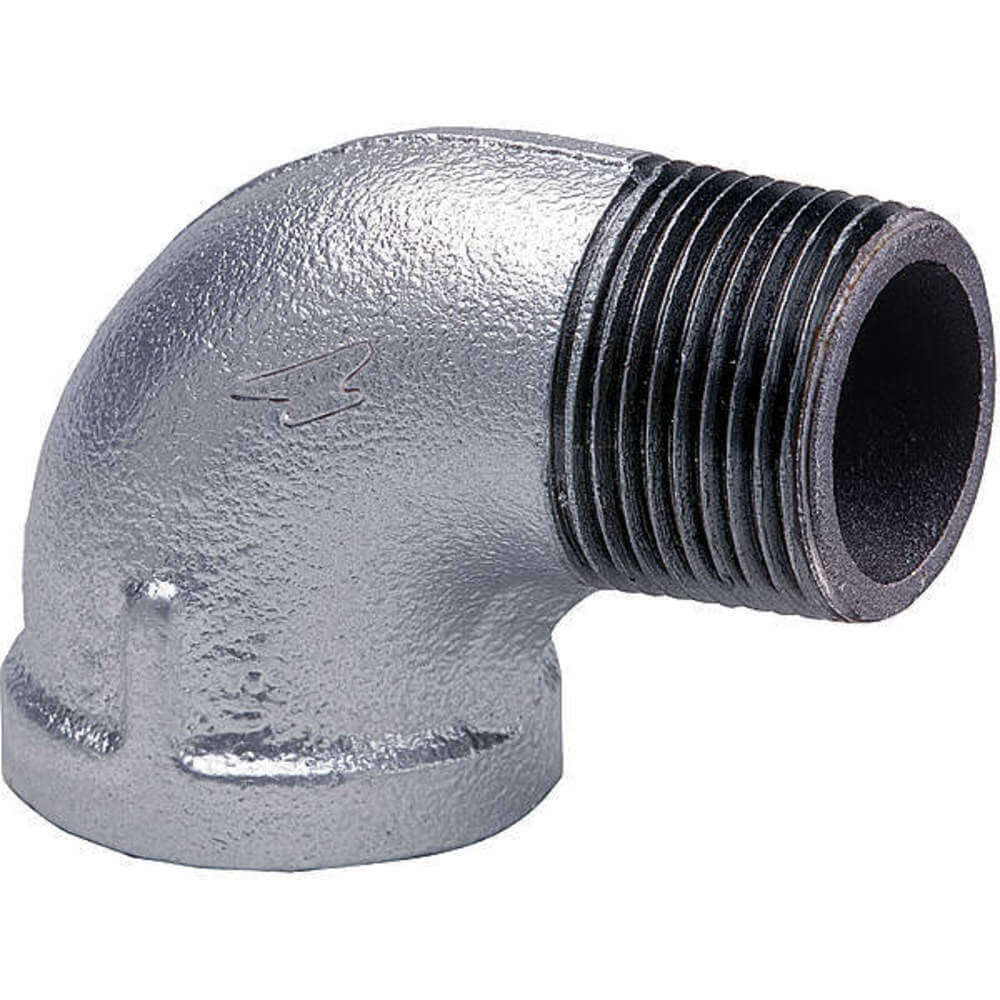

The ANVIL 0311017800 is a 4" galvanized 150# street 90-degree elbow. It is constructed from malleable iron with a galvanized finish. This fitting conforms to ASME B16.3 and is 100% gas tested at a minimum of 100 PSI.
- Constructed from galvanized malleable iron
- 90-degree elbow
- Suitable for air, non-potable water, and oil applications
Product Highlights
The ANVIL 0311017800 is ideal for plumbing, mechanical, HVAC, industrial, and fire protection applications. It is rated to 300 psi.
Product Information
Standard Information
-
Brand: ANVIL
-
Manufacturer Part Number: 0311017800
-
Country of Origin: United States
Technical Specifications
-
Category: Malleable Iron
-
Finish: Galvanized
-
Material: Malleable Iron
-
Brand: ANVIL
-
Item: 90 Degree Street Elbow
-
Class: Class 150
-
Gender: Female, Male
-
Pipe Size: 4"
-
Standards: ASTM A197, FM Approved, Meets ASME B16.3, UL Listed
-
Threading: NPT
-
Application: Air, Non-Potable Water, Oil
-
Temperature Range: -20 Degrees to 350 Degrees F
-
Fitting Shape: 90 Degree Street Elbow
-
Includes Seal: No
-
Max. Pressure: 300 psi @ 150 Degrees F WOG
-
Connection Type: Threaded
-
Fitting Pipe Size: 4 in x 4 in
-
For Pipe Schedule: 40
-
Fitting Side A Type: NPT
-
Fitting Side B Type: NPT
-
Pipe Fitting Gender: Female Male
-
Fitting Side A Gender: Female
-
Fitting Side B Gender: Male
-
Pipe Fitting Material: Galvanized Malleable Iron
-
Fitting Schedule/Class: Class 150
-
Specific Fitting Shape: 90 Degree Street Elbow
-
Fitting Connection Type: FNPT x MNPT
-
Basic Pipe Fitting Shape: Elbow
-
Saturated Steam Pressure: 150 psi @ 350 Degrees F
-
Maximum Operating Pressure: 300 psi @ 150 Degrees F
-
Basic Pipe Fitting Material: Metal
-
Fitting Side A Nominal Pipe Size: 4 in
-
Fitting Side B Nominal Pipe Size: 4 in
-
Includes Pre-Applied Thread Sealant: No
-
Country of Origin: United States
-
Domestic / Import: Domestic
-
End Style: FNPT x MNPT
-
Nominal Size: 4 in
-
Pressure Class: 150 Lb
-
Manufacturer: Anvil International
-
Manufacturer #: 0311017800
-
Pressure Rating: 300 psi
-
Schedule Rating: SCH 40/STD
-
Series: FIG 1103
-
Type: Street, Straight
-
Angle: 90 Degree
-
Applicable Standard: ASME B16.3/B1 20.1, UL (Canada and US), FM, NSF/ANSI 61
-
Size A: 4 Inch
-
Size B: 4 Inch
-
Temperature Rating: 350 Deg F
-
Material Specification: ASTM A197/A153
-
Liquid and Gas Pressure Rating (psi): 300
-
Steam Pressure Rating (psi): 150
-
Finish Coating: Galvanized
