Anvil 0311017404 2-1/2 inches Galv 150# St 90 Ell

Product Description

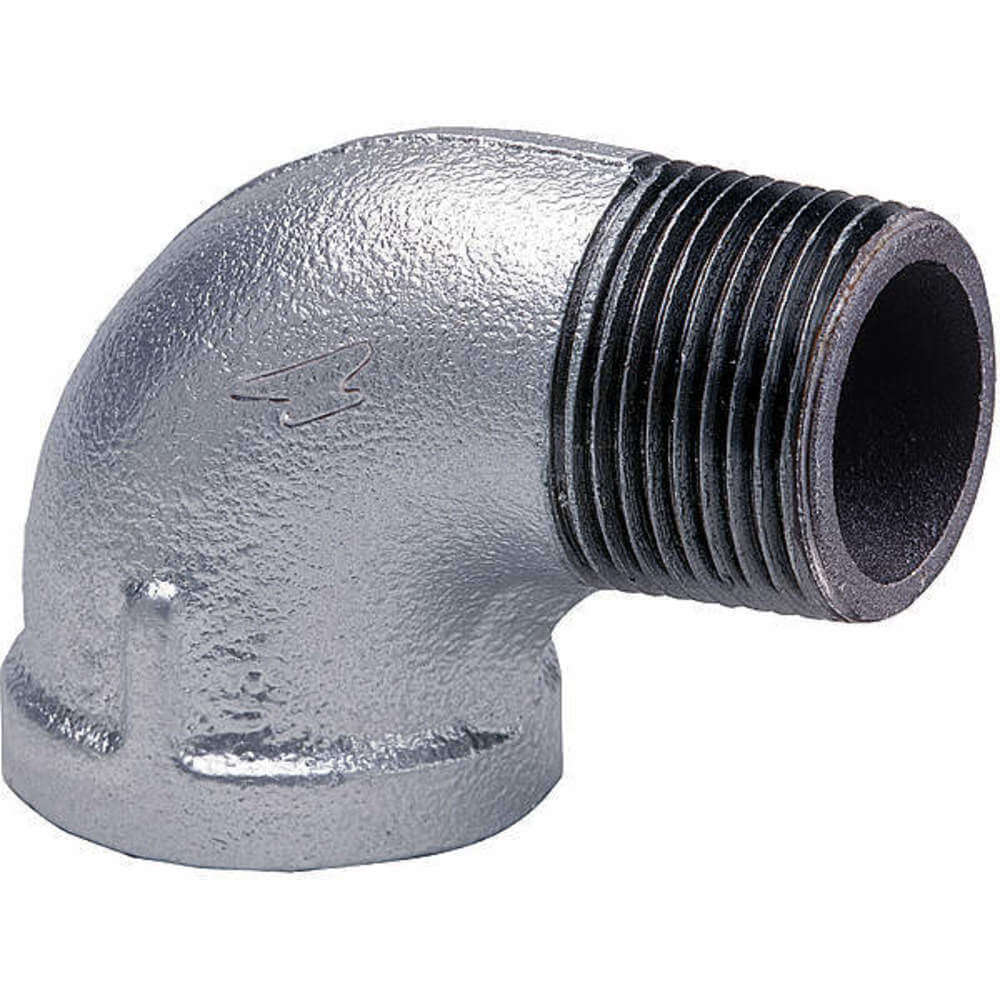

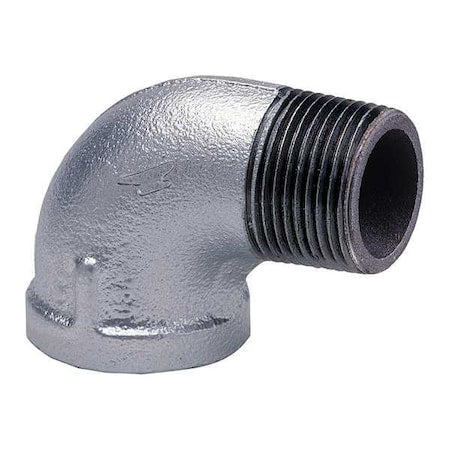

The ANVIL 0311017404 is a 2-1/2" Galvanized 150# Street 90 Degree Elbow. Constructed from malleable iron with a galvanized finish, this Class 150 fitting conforms to ASME B16.3. Suitable for air, oil, and non-potable water applications, it features female and male NPT connections. It is designed for pipe schedule 40.

• Constructed from galvanized malleable iron
• Features female and male NPT connections
• Suitable for air, oil, and non-potable water applications

Product Highlights

This 2-1/2" galvanized street elbow is ideal for creating 90-degree connections in piping systems. It is rated to 300 psi at 150 Degrees F.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0311017404
• Country of Origin: US

Technical Specifications

• MPN: 0311017404
• Brand: ANVIL
• Item [Specifications]: Street Elbow, 90 Degrees
• Class [Specifications]: Class 150
• Gender [Specifications]: Female, Male
• Pipe Size [Specifications]: 2 1/2 in
• Standards [Specifications]: ASTM A197, FM Approved, Meets ASME B16.3, UL Listed
• Threading [Specifications]: NPT
• Application [Specifications]: Air, Oil, Non-Potable Water
• Temperature Range: -20 Degrees to 350 Degrees F
• Fitting Shape [Specifications]: Elbow
• Includes Seal [Specifications]: No
• Maximum Pressure: 300 psi @ 150 Degrees F WOG
• Finish/Coating: Galvanized
• Connection Type: FNPT x MNPT
• For Pipe Schedule [Specifications]: 40
• Fitting Side A Type [Specifications]: NPT
• Fitting Side B Type [Specifications]: NPT
• Pipe Fitting Gender [Specifications]: Female Male
• Pipe Size (Fittings) [Specifications]: 2-1/2"
• Fitting Side A Gender [Specifications]: Female
• Fitting Side B Gender [Specifications]: Male
• Pipe Fitting Material: Malleable Iron
• Fitting Schedule/Class [Specifications]: Class 150
• Specific Fitting Shape [Specifications]: 90 Degree Street Elbow
• Fitting Connection Type [Specifications]: FNPT x MNPT
• Basic Pipe Fitting Shape [Specifications]: Elbow
• Pipe Size - Pipe Fitting [Specifications]: 2-1/2"
• Saturated Steam Pressure [Specifications]: 150 psi @ 350 Degrees F
• Maximum Operating Pressure: 300 psi @ 150 Degrees F
• Basic Pipe Fitting Material [Specifications]: Metal
• Pipe Fitting Schedule/Class [Specifications]: Class 150
• Specific Pipe Fitting Shape [Specifications]: 90 Degrees Street Elbow
• Pipe Fitting Connection Type [Specifications]: FNPT x MNPT
• Fitting Side A Nominal Pipe Size [Specifications]: 2 1/2 in
• Fitting Side B Nominal Pipe Size [Specifications]: 2 1/2 in
• Includes Pre-Applied Thread Sealant [Specifications]: No
• Country of Origin (subject to change) [Specifications]: United States
• Domestic / Import: Domestic
• End Style: NPT
• Material: Malleable Iron
• Nominal Size: 2-1/2 in
• Pressure Class: 150 Lb
• Manufacturer: Anvil International
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 1103
• Type: Straight
• Pressure Level [Specifications]: Medium Pressure (300-999 psi)
• Specific Fitting Angle: 90°
• Features: 90 Degrees Street Elbow, Malleable Iron, Galvanized, Class Class
