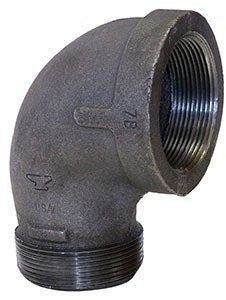

Anvil 0311016604 FIG 1103 Straight 90 deg Street Elbow, 1 in, FNPT x MNPT, 150 lb, Malleable Iron, Galvanized, Domestic

Product Description

The Anvil 0311016604 is a FIG 1103 Straight 90 degree Street Elbow designed for piping applications. This fitting is suitable for connecting two different pipe parts and directing the flow of liquid or gas. It features a one-inch nominal size with MNPT and FNPT end styles. This elbow fitting is made from malleable iron and is galvanized for durability.

• Constructed from malleable iron for strength
• Rated for 150 lb pressure class with a pressure rating of 300 psi
• Temperature range from -20 to 150 degrees Fahrenheit

Product Highlights

This fitting meets ASME B16.3 standards, ensuring quality and performance for plumbing and piping systems. The galvanized finish protects against corrosion and extends the service life of the product.

Product Information

Standard Information

• Manufacturer: ASC Engineered Solutions
• Material: Malleable Iron

Technical Specifications

• Domestic/Import: Domestic
• End Style: MNPT x FNPT
• Finish: Galvanized
• Fitting/Connector Type: 90 deg Elbow
• Nominal Size: 1 in
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 1103
• Temperature Rating: -20 to 150 deg F
