Anvil 0311001606 FIG 1101 Standard 90 deg Pipe Elbow 1-1/2 in FNPT 150 lb

Product Description

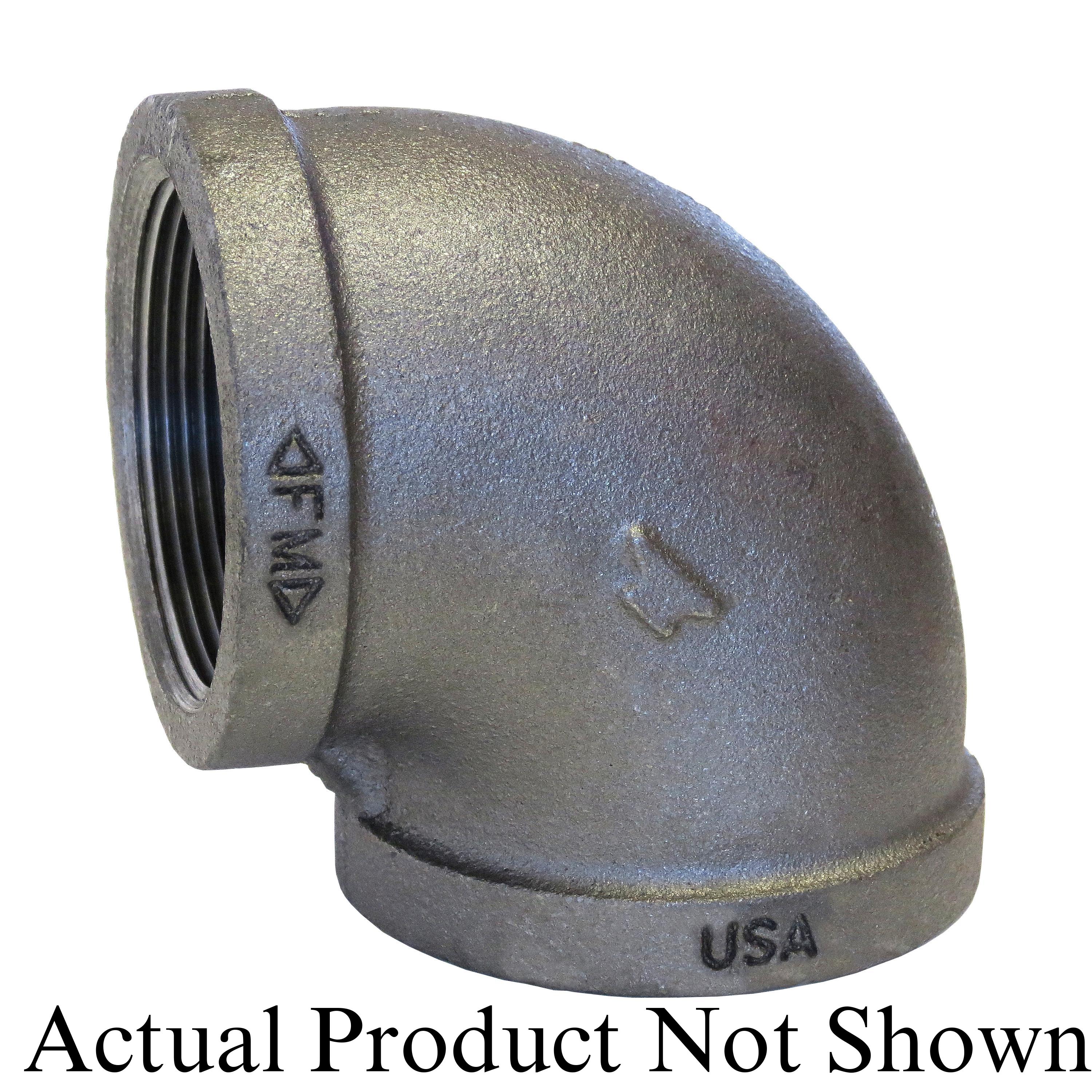

The Anvil 0311001606 is a 90-degree pipe elbow fitting. It is made of malleable iron and has a galvanized finish, suitable for various plumbing applications. The elbow is designed for a nominal pipe size of one and one-half inches and features FNPT ends. It is rated for 150 lb pressure class and up to 300 psi pressure rating.

• Constructed from malleable iron for durability.
• Galvanized finish prevents rust and corrosion.
• Suitable for temperature ranges from -20 to 150 degrees Fahrenheit.

Product Highlights

This fitting connects two pipes at a 90-degree angle, essential for changing the direction of piping systems in various installations.

Product Information

Standard Information

• Manufacturer: ASC Engineered Solutions
• Domestic/Import: Domestic

Technical Specifications

• Fitting Type: 90-degree elbow
• Nominal Size: 1-1/2 inches
• End Style: FNPT
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Temperature Rating: -20 to 150 degrees Fahrenheit
• Finish: Galvanized
• Series: FIG 1101
