Product Description

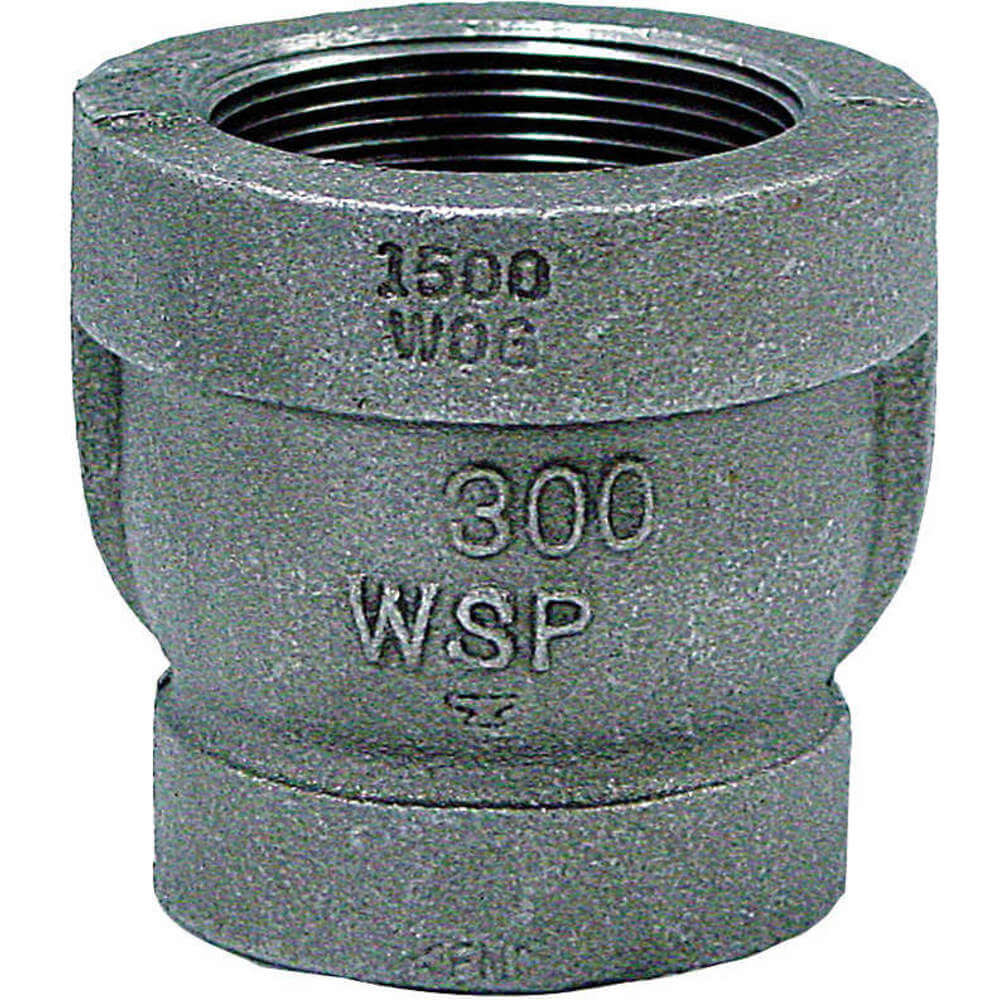

The ANVIL 0310545603 Reducer is a 2-1/2x2 Bm 300# fitting designed for reducing pipe sizes. This malleable iron reducing coupling features FNPT connections, suitable for various applications including air, natural gas, non-potable water, oil, and steam. It is rated for Class 300 service, ensuring robust performance in high-pressure systems. The reducer conforms to ASME B16.3 standards.
- Reducing Coupling with FNPT connections for 2 1/2 x 2 inch pipe.
- Manufactured from malleable iron, meeting Anvil's quality standards and conforming to ASME B16.3.
- Suitable for air, natural gas, non-potable water, oil, and steam applications with a Class 300 rating.
Product Highlights
This malleable iron reducing coupling is designed for high-pressure applications, featuring FNPT connections and a Class 300 rating.
Product Information
Standard Information
-
Brand: ANVIL
-
Manufacturer Part Number: 0310545603
-
Country of Origin: USA
Technical Specifications
-
Type: Reducer
-
Size: 2-1/2X2
-
Schedule/Class: XH
-
Pressure Rating: 300 PSI
-
Material: BLK MI
-
Domestic/Import: Domestic
-
Connection Type: FNPT
-
Color: Black
-
Series: FIG 1167
-
Temperature Range: -20 to 150 deg F
-
Application: Air, Natural Gas, Non-Potable Water, Oil, Steam
-
Saturated Steam Pressure: 300 psi
-
Standards: AAR Approved, ASME B16.3, FM Approved, UL Listed
-
Pre-applied Thread Sealant Included: No
-
Seals Included: No
-
Fitting Side A Gender: Female
-
Fitting Side A Nominal Pipe Size: 2 1/2"
-
Fitting Side A Type: NPT
-
Fitting Side B Gender: Female
-
Fitting Side B Nominal Pipe Size: 2"
-
Fitting Side B Type: NPT
