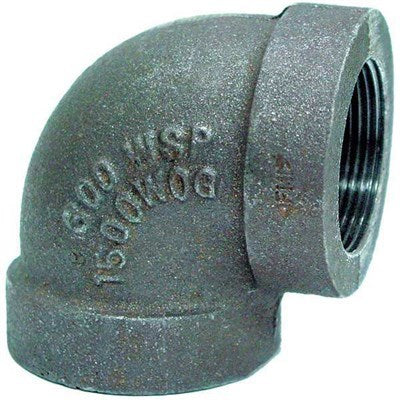

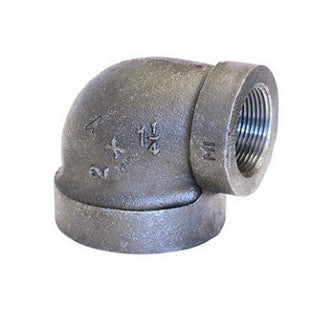

Anvil 0310505607 1-1/2x1 Bm 300# Red 90 Ell

Product Description

The ANVIL 0310505607 is a 1-1/2X1 Bm 300# Red 90 Ell fitting. Anvil International's fittings are manufactured and tested to meet strict quality standards. Class 300 Malleable Iron Fittings conform to ASME B16.3 and unions conform to ASME B16.39. Elbows and tees 3/8" (10 DN) and larger are 100% gas tested at a minimum of 100 PSI. (6.9 bar).

• Black and galvanized finishes available
• Manufactured and tested to meet Anvil’s strict quality standards
• Class 300 Malleable Iron Fittings conform to ASME B16.3

Product Highlights

The ANVIL 0310505607 fitting is made from malleable iron and conforms to ASME standards. Suitable for gas, liquid, and steam applications.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0310505607

Technical Specifications

• Manufacturer: Anvil
• Type: 90° Elbow
• Material: Malleable Iron
• Gauge: Extra Heavy
• Size (In): 1-1/2 x 1
• FINISH: BLACK OXIDE FINISH
• SIZE A: 1-1/2 INCH
• SIZE B: 1 INCH
• SIZE A - DECIMAL: 1.5
• SIZE B - DECIMAL: 1
• SIZE A - FRACTIONAL: 1-1/2
• SIZE B - FRACTIONAL: 1
• APPLICATION: GAS, LIQUID, STEAM
• MATERIAL SPECIFICATION: ASTM A197
• PRESSURE RATING: 300 PSI SWP AT 550 DEG F, 1500 PSI LIQUID AT 150 DEG F, 1500 PSI GAS AT 150 DEG F
• END CONNECTION: 1-1/2 INCH FNPS X 1 INCH FNPS
• ANGLE: 90 DEG
• APPROXIMATE WEIGHT: 1.89 LB
• MODEL: 1161R
