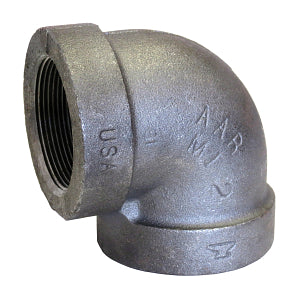

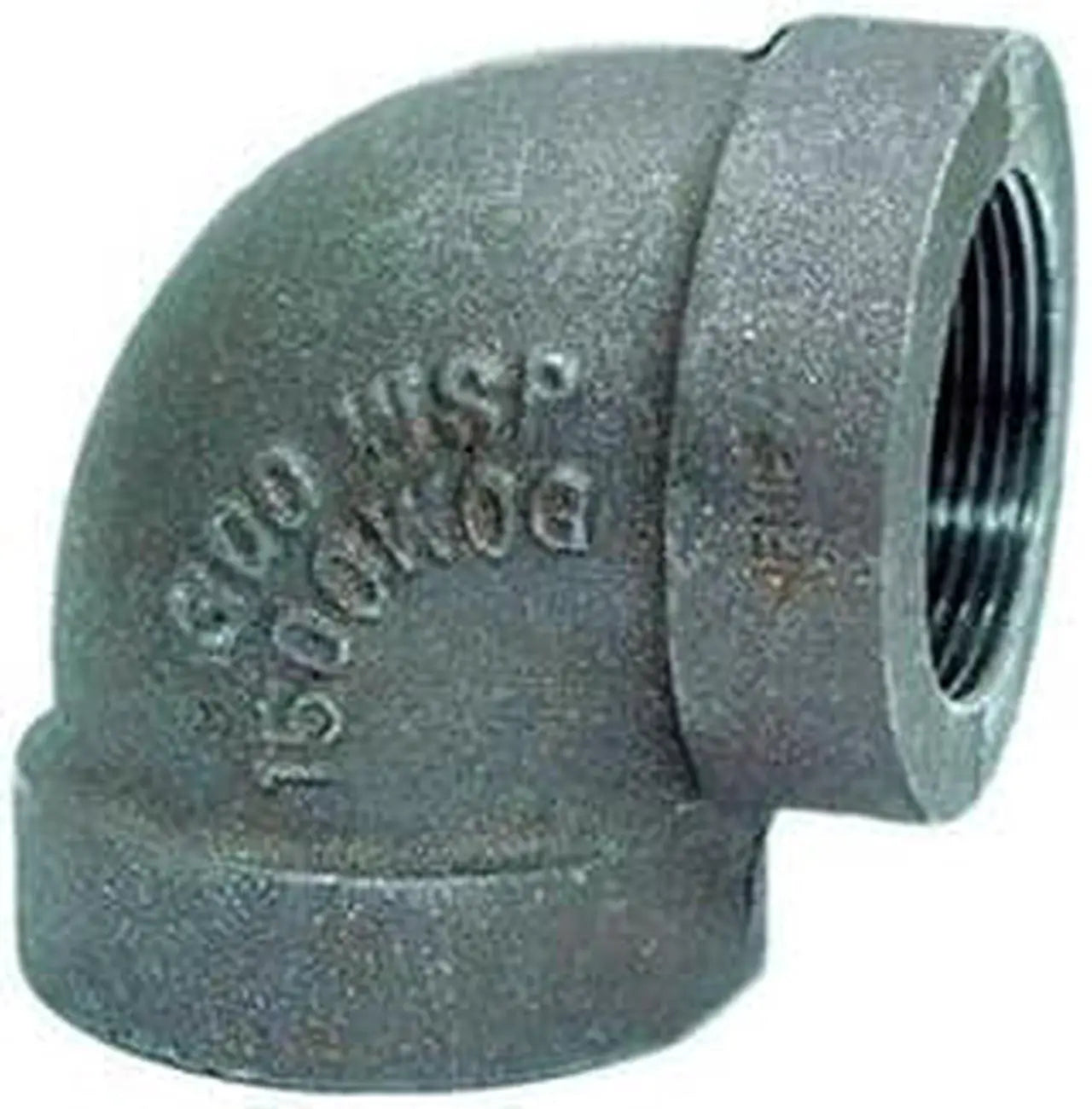

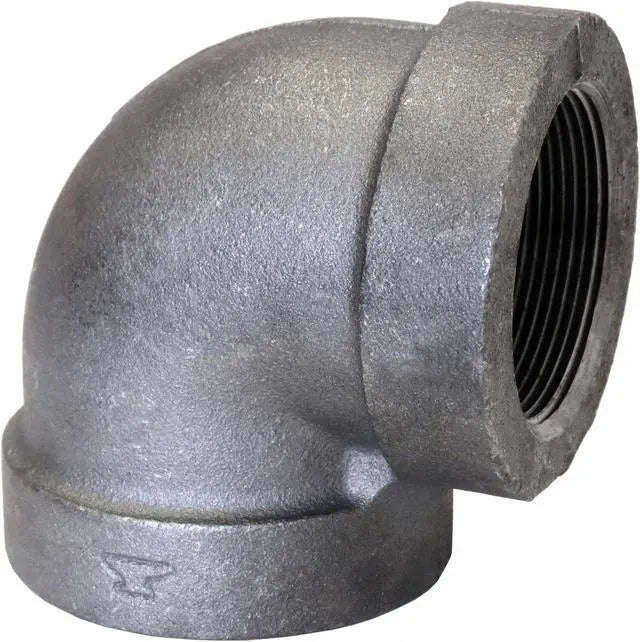

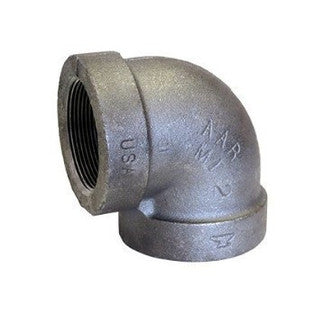

Anvil 0310501804 Fig 1161 Straight 90 deg Pipe Elbow, 2-1/2 in, FNPT, 300 lb

Product Description

The Anvil 0310501804 Fig 1161 straight 90-degree pipe elbow is designed to connect two pipes at a 90-degree angle. Constructed from malleable iron, this class 300 elbow features female NPT threaded ends. It is suitable for air, natural gas, non-potable water, oil, and steam applications. This fitting conforms to ASME B16.3.

• Constructed from malleable iron
• Features female NPT (FNPT) threaded ends for secure connection
• Suitable for various applications including air, gas, and steam

Product Highlights

The Anvil 0310501804 is a durable and reliable 90-degree elbow for connecting pipes in diverse applications.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0310501804
• Country of Origin: United States

Technical Specifications

• Category: Elbow
• Material: Malleable Iron
• Brand: Anvil
• Class: Class 300
• Gender: Female
• Pipe Size: 2 1/2 in
• Standards: AAR Approved, FM Approved, Meets ASME B16.3, UL Listed
• Threading: NPT
• Application: Air, Natural Gas, Non-Potable Water, Oil, Steam
• Temp. Range: -20 Degrees to 550 Degrees F
• Fitting Shape: Elbow
• Includes Seal: No
• Max. Pressure: 1000 psi@150 Degrees F
• Connection Type: Threaded
• Fitting Pipe Size: 2 1/2 in x 2 1/2 in
• For Pipe Schedule: 80
• Fitting Side A Type: NPT
• Fitting Side B Type: NPT
• Pipe Fitting Gender: Female Female
• Fitting Side A Gender: Female
• Fitting Side B Gender: Female
• Pipe Fitting Material: Malleable Iron
• Fitting Schedule/Class: Class 300
• Specific Fitting Shape: 90 Degree Elbow
• Fitting Connection Type: FNPT
• Basic Pipe Fitting Shape: Elbow
• Saturated Steam Pressure: 300 psi @ 550 Degrees F
• Maximum Operating Pressure: 1,000 psi @ 150 Degrees F
• Basic Pipe Fitting Material: Metal
• Pipe Fitting Schedule/Class: Class 300
• Specific Pipe Fitting Shape: 90 Degree Elbow
• Pipe Fitting Connection Type: FNPT
• Fitting Side A Nominal Pipe Size: 2 1/2 in
• Fitting Side B Nominal Pipe Size: 2 1/2 in
• Includes Pre-Applied Thread Sealant: No
• Country of Origin (subject to change): United States
• Domestic/Import: Domestic
• End Style: FNPT
• Finish: Black Oxide
• Fitting/Connector Type: 90 deg Elbow
• Nominal Size: 2-1/2 in
• Pressure Class: 300 lb
• Pressure Rating: 300 PSI SWP AT 550 DEG F, 1000 PSI LIQUID AT 150 DEG F, 1000 PSI GAS AT 150 DEG F
• Series: FIG 1161
• Temperature Rating: -20 to 150 deg F
• Brand Name: Anvil International
• Mfg Part#: 0310501804
• SIZE A: 2-1/2 INCH
• SIZE B: 2-1/2 INCH
• SIZE A - DECIMAL: 2.5
• SIZE B - DECIMAL: 2.5
• SIZE A - FRACTIONAL: 2-1/2
• SIZE B - FRACTIONAL: 2-1/2
• MATERIAL SPECIFICATION: ASTM A197
• END CONNECTION: 2-1/2 INCH FNPS X 2-1/2 INCH FNPS
• ANGLE: 90 DEG
• MODEL: 1161
• Features: 90 Degrees Elbow, Malleable Iron, Class Class 300, For Pipe Sched
