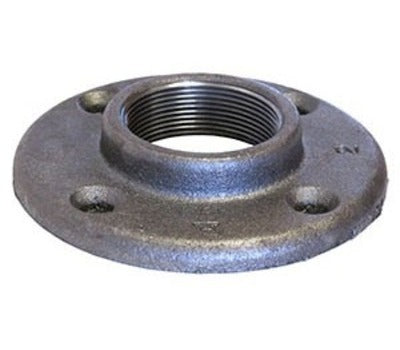

Anvil 0310106000 2 in. Female x Flanged Malleable Iron Floor Flange

Product Description

Anvil offers the 0310106000 floor flange made from malleable iron, defined by its robust construction and reliable performance for various applications. This flange features a female National Pipe Thread and flanged connection, making it suitable for connecting pipes in plumbing systems. Designed to meet ASME B16.3 standards, it ensures quality and durability in installation.

• Temperature rating ranging from negative twenty to one hundred fifty degrees Fahrenheit
• Class 150 rating designates maximum pressure service levels
• Standard dimensions facilitate easy installation and compatibility with existing systems

Product Highlights

This floor flange is ideal for use with air, natural gas, non-potable water, and steam systems. The four bolt holes provide secure mounting for stability and strength.

Product Information

Standard Information

• Brand: Anvil
• Model Number: 0310106000

Technical Specifications

• Material: Malleable Iron
• Connection Type: FNPT x FLNG
• Pressure Rating: 150 lb
• Outside Diameter: 5-1/2 inches
• Bolt Hole Diameter: 5/16 inches
• Specifications Met: UL Listed, FM Approved, NSF/ANSI 61, ASME B16.3
• Nominal Pipe Size: 2 inches
• Number of Bolt Holes: 4
