Anvil 0310105408 Malleable Iron Floor Flange 1 in. Class 150 Replacement MPN

Anvil 0310105408 Malleable Iron Floor Flange 1 in. Class 150 Replacement MPN

Brand: ANVIL
SKU: 0310105408
Availability: In Stock
truck-svgrepo-com

Ships Same Day if Ordered by 12pm
$21.99
$21.99
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

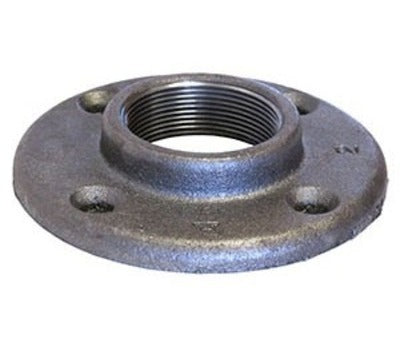

The Anvil 0310105408 is a one inch female by flanged malleable iron floor flange. This fitting meets the Class 150 standards, ensuring quality and versatility for various plumbing applications.

  • Temperature rating from -20 to 150 degrees Fahrenheit
  • Complies with ASME B16.3 and ASTM A197 standards
  • Four bolt holes for secure installation

Product Highlights

This floor flange is suitable for diverse applications including air, natural gas, and non-potable water. It is designed for durability and reliability in plumbing systems.

Product Information

Standard Information

  • Brand: Anvil
  • Material: Malleable Iron

Technical Specifications

  • MPN: 0310105408
  • Nominal Pipe Size: 1 inch
  • Outside Diameter: 4 inches
  • Pressure Rating: 150 lb
  • Connection Type: FNPT x FLNG
  • Number of Bolt Holes: 4
  • Weight: 0.76 lb
  • Specifications Met: UL Listed, FM Approved, NSF/ANSI 61
