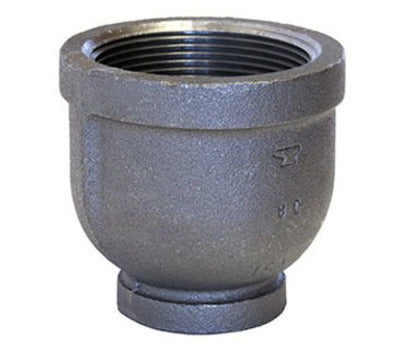

ANVIL 0310088802 1-1/2 x 1/2 in. Female Black Malleable Iron Reducer

Product Description

The ANVIL 0310088802 is a 1-1/2 x 1/2 inch female black malleable iron reducer designed for reliable connection in piping systems. This fitting conforms to ASME B16.3 standards, ensuring quality and durability for various applications.

• Connection type: Female Pipe Thread (FPT) on both ends
• Material: Malleable iron providing strength and reliability
• Maximum temperature rating: +150 degrees Fahrenheit

Product Highlights

This reducer is suitable for use in water, gas, and oil systems, ensuring a tight seal and resistance to vibration. It meets multiple industry standards, enhancing its usability in different environments.

Product Information

Standard Information

• Brand: ANVIL
• Model Number: 0310088802

Technical Specifications

• Material: Malleable Iron
• Length: 2-5/16 inches
• Weight: 0.78 lb.
• Color: Black
• Catalog Number: 0310088802
• Connection Type: FPT x FPT
• Specifications Met: ASME B16.3, ASME B1.20.1, ASTM A197, ASTM A153, cULus Listed, FM Approved, ANSI/NSF 61
• Maximum Pressure Rating: 150 lb
• Maximum Temperature Rating: +150 degrees Fahrenheit
• Minimum Temperature Rating: -20 degrees Fahrenheit
• Resistance Properties: Vibration-Resistant
