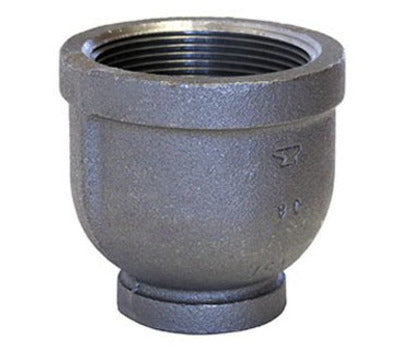

ANVIL 0310088208 1-1/2 x 1-1/4 in. Female Black Malleable Iron Reducer

Product Description

The ANVIL 0310088208 is a female black malleable iron reducer designed to create a transition between pipes of different diameters. This fitting measures one and a half inches by one and a quarter inches. It conforms to the ASME B16.3 standards for malleable iron fittings.

• Compatible with a variety of HVAC, plumbing, and piping applications.
• Constructed from durable malleable iron.
• Ideal for reducing pipe sizes in various systems.

Product Highlights

This reducer is suitable for both residential and commercial use. It can withstand high pressure and is designed for long-lasting performance in industrial settings.

Product Information

Standard Information

• Brand: ANVIL
• Model Number: 0310088208

Technical Specifications

• Material: Malleable Iron
• Connection Type: FPT x FPT
• Length: 2-5/16 inches
• Weight: 0.9 lb
• Maximum Pressure Rating: 150 lb
• Maximum Temperature Rating: +150 degrees F
• Minimum Temperature Rating: -20 degrees F
• Specifications Met: ASME B16.3, ASME B1.20.1, ASTM A197, ASTM A153, cULus Listed, FM Approved, ANSI/NSF 61
• Resistance Properties: Vibration-Resistant
