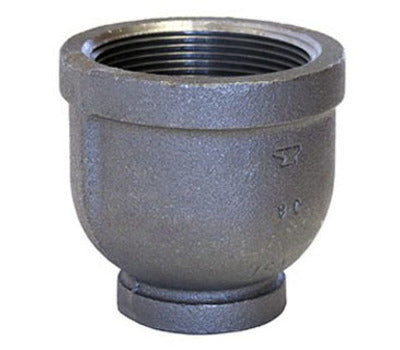

ANVIL 0310087804 1-1/4 x 3/4 in. Female Black Malleable Iron Reducer

Product Description

The ANVIL 0310087804 is a female black malleable iron reducer designed for reliable performance in piping systems. This fitting is suitable for use with malleable iron threaded fittings, providing a secure connection in various plumbing applications. All ANVIL Class 150 malleable iron fittings meet the ASME B16.3 standards, ensuring durability and compliance.

• Constructed from black steel for enhanced resistance to corrosion.
• Threaded connection type for easy installation.
• Vibration-resistant properties for added reliability in dynamic environments.

Product Highlights

This reducer is ideal for reducing pipe sizes in your plumbing or HVAC systems while ensuring a strong and leak-proof connection.

Product Information

Standard Information

• UPC: 690291348464
• Weight: .64 lb.

Technical Specifications

• Material: Black Steel
• Application: For Malleable Iron Threaded Fittings
• Selling Size: 1-1/4 x 3/4 in.
• Catalog Number: 0310087804
• Connection Type: Threaded
• Specifications Met: ASME B16.3, ASME B1.20.1, ASTM A197, ASTM A153, cULus Listed, FM Approved, NSF/ANSI 61
• Maximum Pressure Rating: 300 PSI
• Maximum Temperature Rating: +150 deg F
• Minimum Temperature Rating: -20 deg F
• Resistance Properties/Features: Vibration-Resistant
