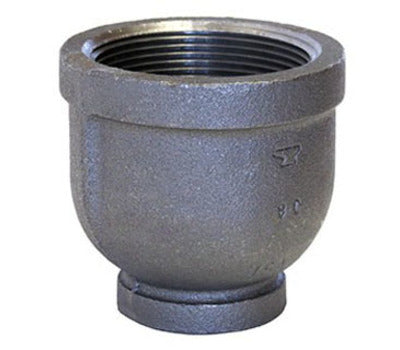

Anvil 0310086400 3/4 x 1/4 in. Female Black Malleable Iron Reducer

Product Description

The Anvil 3/4 x 1/4 in. Female Black Malleable Iron Reducer has the model number 0310086400. This fitting complies with ASME B16.3 standards, ensuring reliable construction for piping applications. It converts a three-fourths inch female pipe thread to a one-fourth inch female pipe thread.

• Standard malleable iron construction
• FPT x FPT connection type
• Meets ASME B16.3 and other standards

Product Highlights

This reducer is suitable for various plumbing connections, ensuring durability and resistance to vibration.

Product Information

Standard Information

• Brand: Anvil
• Model Number: 0310086400

Technical Specifications

• Material: Malleable Iron
• Connection Type: FPT x FPT
• Specifications Met: ASME B16.3, ASME B1.20.1, ASTM A197, ASTM A153, cULus Listed, FM Approved, ANSI/NSF 61
• Length: 1-7/16 in
• Weight: .22 lb.
• Maximum Pressure Rating: 150 lb
• Maximum Temperature Rating: +150 deg F
• Minimum Temperature Rating: -20 deg F
• UPC: 690291348426
• Resistance Properties: Vibration-Resistant
