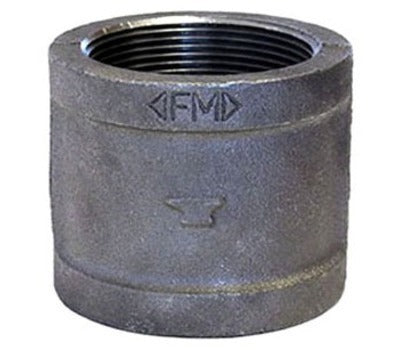

ANVIL 0310081203 2 in. Female Black Malleable Iron Right Hand Coupling

Product Description

The ANVIL 0310081203 is a two-inch female black malleable iron right hand coupling designed for practical use in metal piping systems. This coupling is made from black steel and conforms to ASME B16.3 and ASME B16.39 standards.

• Conforms to ASME and ASTM standards
• Maximum pressure rating of one hundred fifty pounds
• Temperature range from minus twenty to plus one hundred fifty degrees Fahrenheit

Product Highlights

This coupling provides a secure connection between two female pipe threads, suitable for various applications including plumbing and gas systems.

Product Information

Standard Information

• Brand: ANVIL
• Item ID: 031008120

Technical Specifications

• Material: Black Steel
• Connection Type: FPT x FPT
• Catalog Number: 0310081203
• UPC: 690291348242
• Weight: 1.45 lb.
• Box Quantity: 5 EA
• Specifications Met: ASME B16.3, ASME B1.20.1, ASTM A197, ASTM A153, cULus Listed, FM Approved, ANSI/NSF 61
• Maximum Pressure Rating: 150 lb
• Maximum Temperature Rating: +150 deg F
• Minimum Temperature Rating: -20 deg F
