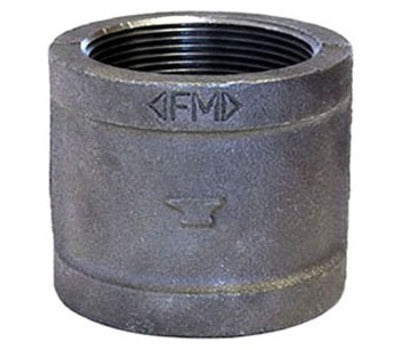

ANVIL 0310080601 1 in. Female Black Malleable Iron Right Hand Coupling

Product Description

The ANVIL 0310080601 is a one-inch female black malleable iron right hand coupling designed for reliable connections in piping systems. This fitting meets ASME B16.3 standards, ensuring durability and compliance in various applications.

• Compatible with malleable iron threaded fittings
• Maximum pressure rating of three hundred PSI
• Suitable for temperatures ranging from negative twenty degrees Fahrenheit to positive one hundred fifty degrees Fahrenheit

Product Highlights

Product Information

Standard Information

• Brand: ANVIL
• Model Number: 0310080601
• Material: Black Steel

Technical Specifications

• UPC: 690291348211
• Weight: .48 lb.
• Connection Type: Threaded
• Specifications Met: ASME B16.3, ASME B1.20.1, ASTM A197, ASTM A153, cULus Listed, FM Approved, NSF/ANSI 61
• Box Quantity: 25 EA
• Maximum Pressure Rating: 300 PSI
• Maximum Temperature Rating: +150 deg F
• Minimum Temperature Rating: -20 deg F
