Anvil 0310055405 3X3/4 bm 150# Tee

Product Description

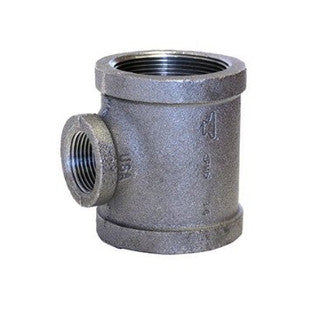

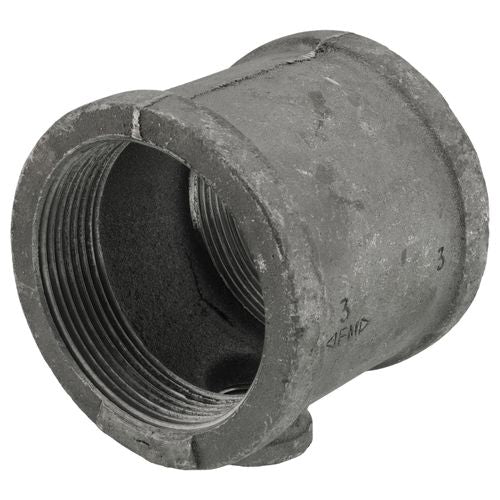

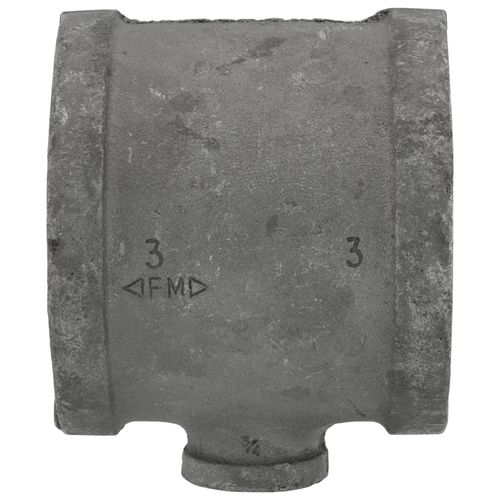

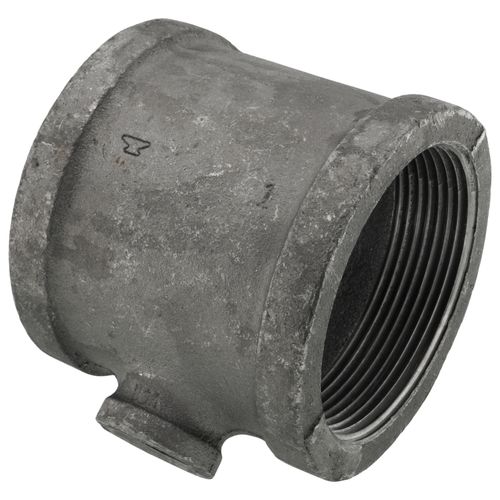

The ANVIL 0310055405 is a 3X3/4 BM 150# Tee. This malleable iron reducing pipe tee is manufactured and tested to meet strict quality standards. It conforms to ASME B16.3 and is 100% gas tested at a minimum of 100 PSI. Suitable for air, natural gas, non-potable water, oil, and steam applications.

• Constructed from malleable iron
• Compliant with ASME B16.3 standards
• Suitable for various applications including air, natural gas, oil, and steam

Product Highlights

The Anvil reducing tee is made from malleable iron and conforms to ASME standards. It is suitable for air, natural gas, oil, and steam applications.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0310055405
• Country of Origin: China

Technical Specifications

• MPN: 0310055405
• Brand: ANVIL
• Material: Malleable Iron
• Thread Type: Female
• Connection Type: Threaded
• Domestic / Import: Domestic
• End Style: FNPT
• Finish: Black
• Fitting / Connector Type: Tee
• Nominal Size: 3 x 3 x 3/4 in
• Pressure Class: 150 Lb
• Manufacturer: Anvil International
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 1105R
• Temperature Rating: -20 to 150 deg F
• Specific Fitting Shape: Reducing
• Tee: Tee
• Pipe Fitting Material: Malleable
• Iron: Iron
• Fitting Side A Nominal Pipe Size: 3 in
• Fitting Side B Nominal Pipe Size: 3 in
• Fitting Side A Type: NPT
• Fitting Side B Type: NPT
• Class: Class 150
• Standards: ASME B16.3, ASTM A197, FM Approved, UL Listed
• Basic Fitting Shape: Tee
• Application: Air; Natural Gas; Non-Potable Water; Oil; Steam
• Fitting Side A Gender: Female
• Fitting Side B Gender: Female
• Fitting Side C Gender: Female
• Fitting Side C Nominal Pipe Size: 3/4 in
• Fitting Side C Type: NPT
• For Pipe Schedule: 40
• Includes Pre-Applied Thread Sealant: No
• Includes Seal: No
• Maximum Operating Pressure: 300 psi @ 150° F
• Pipe Size (Fittings): 3" x 3" x 3/4"
• Pipe Size - Pipe Fitting: 3 in x 3 in x 3/4 in
• Pipe Size: 3" x 3" x 3/4"
• Fitting Connection Type: FNPT
• Item: Reducing Tee
• Basic Pipe Fitting Shape: Tee
• Saturated Steam Pressure: 150 psi @ 350 Degrees F
• Temp. Range: -20 Degrees to 350 Degrees F
• Fitting Schedule/Class: Class 150
• Max. Pressure: 300 psi@150 Degrees F
• Specific Pipe Fitting Shape: Reducing Tee
• Pipe Fitting Schedule/Class: Class 150
• Basic Pipe Fitting Material: Metal
