Anvil 0310052808 21/2X21/2X11/4 BLK MI TEE Power

Product Description

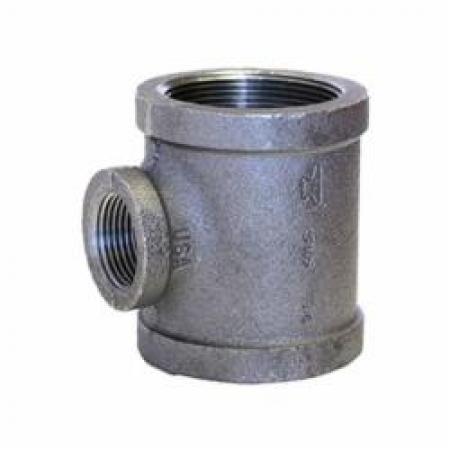

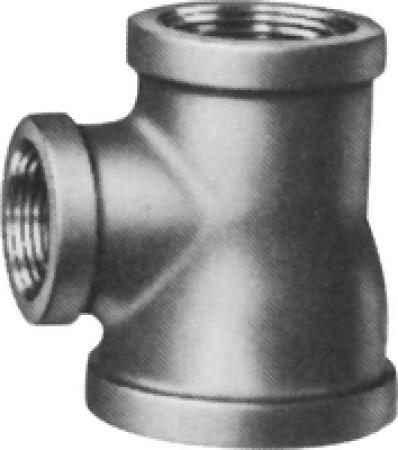

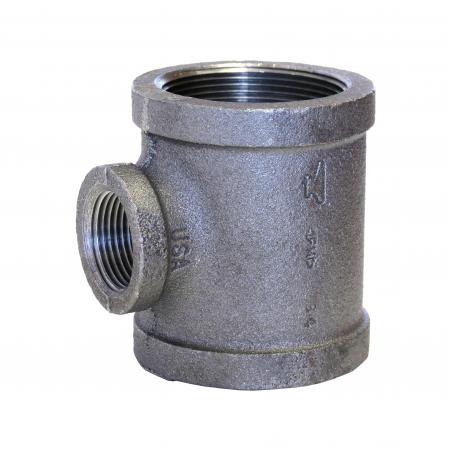

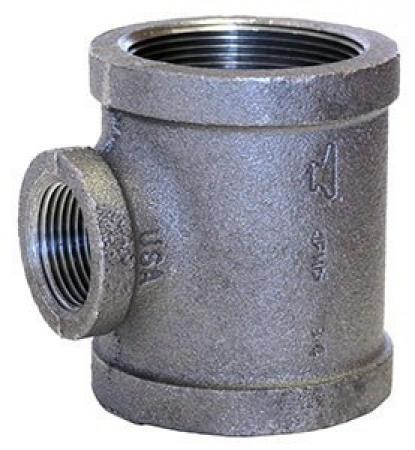

The Anvil Pipe Reducing Tee with MPN 0310052808 is a malleable iron fitting designed for connecting pipes of different sizes. It features a nominal size of two and one-half by two and one-half by one and one-fourth inches with an FNPT end style. This fitting is ideal for directing gas and liquid flow in various applications.

• Malleable iron construction ensures durability and reliability.
• Rated for a maximum pressure of three hundred psi.
• Complies with ASME B16.3 standards.

Product Highlights

The Anvil reducing tee is engineered for heavy-duty applications. It operates within a temperature range of negative twenty to one hundred fifty degrees Fahrenheit.

Product Information

Standard Information

• Manufacturer: ASC Engineered Solutions
• Type: Standard

Technical Specifications

• Nominal Size: 2-1/2 x 2-1/2 x 1-1/4 in
• Material: Malleable Iron
• Finish: Black Oxide
• End Style: FNPT
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Length: 4-1/8 in
• Temperature Rating: -20 to 150 deg F
• Series: FIG 1105R
• Domestic/Import: Domestic
