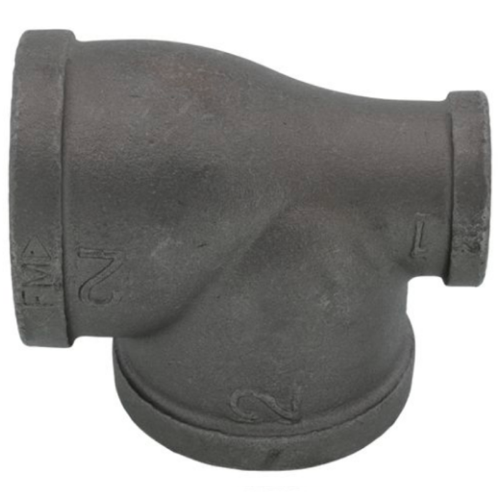

ANVIL 0310051206 2 x 1 x 2 in. Female Black Malleable Iron Reducing Tee

Product Description

The ANVIL 0310051206 is a 2 x 1 x 2 inch female black malleable iron reducing tee designed for various plumbing applications. This fitting meets ASME B16.3 standards for dimensions and pressure ratings. All malleable iron fittings undergo testing for wall porosity using an air under water method, ensuring durability and reliability.

• Constructed from malleable iron.
• Compatible with Class 150 and Class 300 pipe systems.
• UL listed and FM approved for safety and performance.

Product Highlights

The ANVIL reducing tee is ideal for connecting pipes of different sizes in plumbing systems. It supports systems operating under pressures up to 300 PSI and temperature ranges from -20 degrees Fahrenheit to 150 degrees Fahrenheit.

Product Information

Standard Information

• Brand: ANVIL
• Item ID: 031005120

Technical Specifications

• Material: Malleable Iron
• Product Type: Reducing
• Pressure Rating: 300 PSI
• Selling Size: 2 x 1 x 2 inches
• Catalog Number: 0310051206
• UPC: 690291024849
• Maximum Temperature Rating: +150 degrees Fahrenheit
• Minimum Temperature Rating: -20 degrees Fahrenheit
• Specifications Met: ASME B16.3, cULus Listed, FM Approved, NSF/ANSI 61
